Name: LSEM Agricultural Field Laser Radar Ranging Module
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: LSEM
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

LSEM Agricultural Field Laser Radar Ranging Module

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

LSEM

Request A Quote

Product Details

Output:

UART

Resolution Ratio:

0.1m

Measuring Range:

3... 1000m

Aabsolute Accuracy:

±1m

Service Voltage:

Voltage Range Is DC3...3.5V

Power Dissipation:

330mW

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

KLSA Series Laser Ranging Sensors For Surveying And Engineering Construction

Get Best Price

Video

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

86--17719566736

Contact Now

Product Description

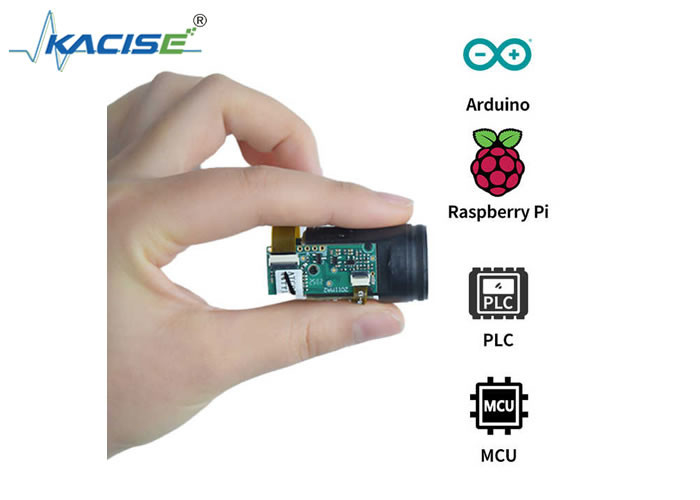

LSEM Agricultural Field Laser Radar Ranging Module

Overview

The LSEM Agricultural Field Laser Radar Ranging Module is designed to optimize agricultural operations. Using pulse method technology, it can accurately measure distances across large agricultural fields. Its compact size and 13g weight make it easy to install on agricultural machinery. With an absolute accuracy of ±3mm and a measuring rate of up to 20Hz, it provides real - time data for tasks such as land leveling and crop monitoring. The laser’s long lifespan and wide operating temperature range ensure consistent performance throughout the farming season.

Product Features

High - Precision Measurements: Improves the accuracy of agricultural operations.
Easy Installation: Fits seamlessly onto agricultural machinery.
Reliable Performance: Maintains functionality in various agricultural environments.

Technical Parameters

Measurement	0.03... 90% reflectivity in the 100m room
Duplicate accuracy	2mm
Absolute accuracy	±3mm
Measuring rate	3...20Hz
Measure the target object	natural target
Laser life	Over 10,000 h
light source	635nm red visible laser
Laser safety level	2
Typical light spot size	10m: 5x3mm; 25m: 10x6mm; 50m: 15x10mm 100m: 30x20mm
Interface	UART
Working voltage	DC2.5…3.3 V
Working temperature	-20~60℃
power dissipation	＜0.27W

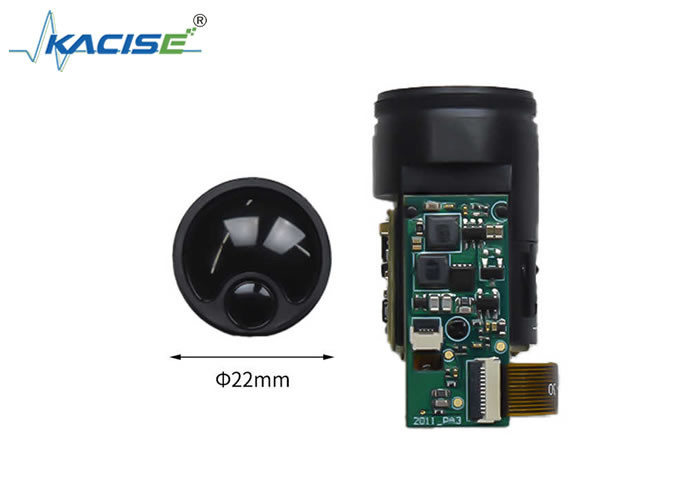

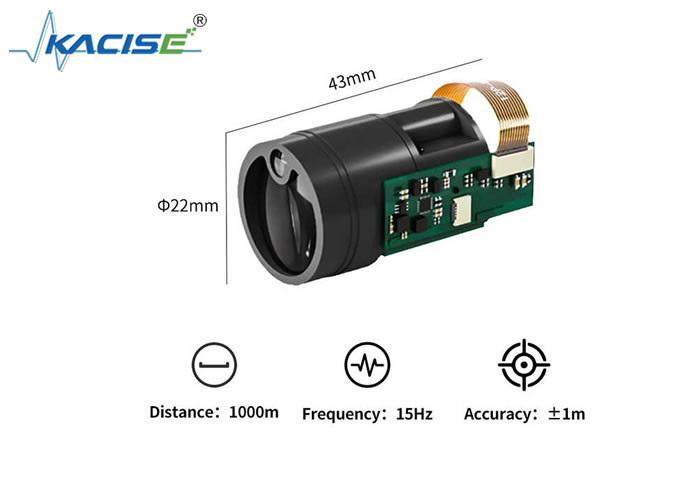

size	63×40×18mm

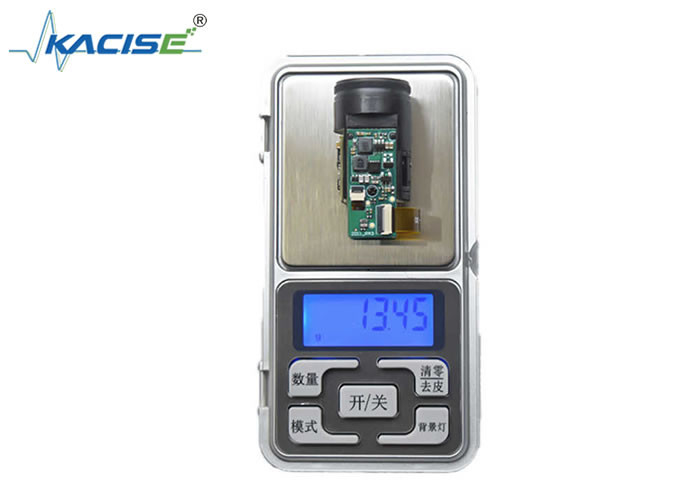

weight	13g
