Name: LSBM-100 Industrial Automation Laser Ranging Module
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: LSBM-100
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

LSBM-100 Industrial Automation Laser Ranging Module

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

LSBM-100

Request A Quote

Product Details

Description:

Long Measuring Range 100m

Frequency:

1...20Hz

Accuracy:

±3mm

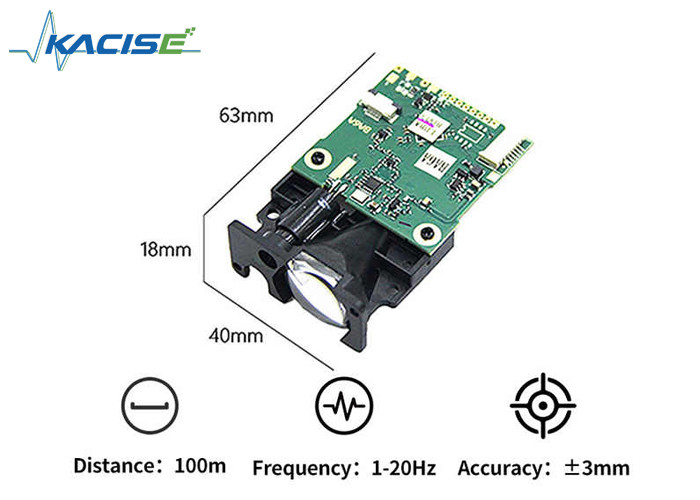

Size / Dimension:

63x40x18mm

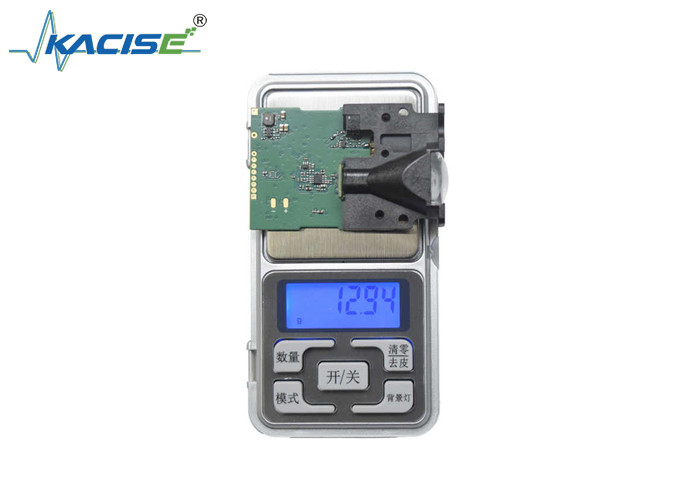

Weight:

13g

Measuring Range:

0.03... 90% Reflectivity In The 100m Room

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

KLSA Series Laser Ranging Sensors For Surveying And Engineering Construction

Get Best Price

Video

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

86--17719566736

Contact Now

Product Description

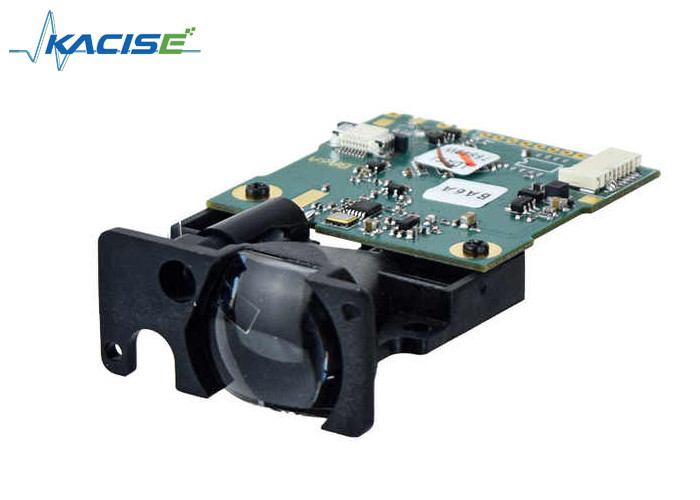

LSBM-100 Industrial Automation Laser Ranging Module

Product Introduction

The LSBM-100 Industrial Automation Laser Ranging Module, crafted by KACISE, is a boon for industrial automation processes. Leveraging advanced ITOF technology, it delivers rapid response times and remarkable ranging accuracy. Measuring just 63×40×18mm and weighing 13g, it’s easy to integrate into industrial systems. With a measuring range of up to 100 meters, ±3mm accuracy, and a data update frequency of up to 20Hz, it ensures seamless operation. Its long laser life of over 10,000 hours and wide - temperature operation from - 20℃ to 60℃ make it suitable for harsh industrial environments.

Product Features

Advanced Ranging Technology: ITOF technology enables high - speed and accurate measurements.

Compact and Lightweight: Facilitates easy integration into industrial machinery.

Long - Lasting Laser: Ensures extended operation without frequent replacements.

Technical Parameters

Measurement	0.03... 90% reflectivity in the 100m room
Duplicate accuracy	2mm
Absolute accuracy	±3mm
Measuring rate	3...20Hz
Measure the target object	natural target
Laser life	Over 10,000 h
light source	635nm red visible laser
Laser safety level	2
Typical light spot size	10m: 5x3mm; 25m: 10x6mm; 50m: 15x10mm 100m: 30x20mm
Interface	UART
Working voltage	DC2.5…3.3 V
Working temperature	-20~60℃
power dissipation	＜0.27W
size	63×40×18mm
weight	13g
