Name: LSBM - 60 Surveying High - Precision ITOF Laser Ranging Module
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: LSBM - 60
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

LSBM - 60 Surveying High - Precision ITOF Laser Ranging Module

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

LSBM - 60

Request A Quote

Product Details

Detection Range:

60m

Output:

UART

Power Dissipation:

<0.27W

Illuminant:

635nm Red Visible Laser

Working Temperature:

-20~60℃

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

KL2A-25 LiDAR for robot navigation and obstacle avoidance, Absolute accuracy ±30mm

Get Best Price

Lidar can be used for ETC vehicle type recognition and can provide host computer software data analysis

Get Best Price

86--17719566736

Contact Now

Product Description

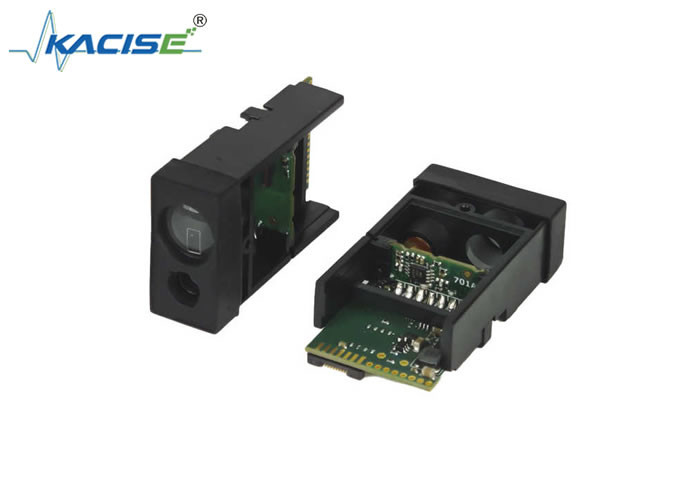

LSBM - 60 Surveying High - Precision ITOF Laser Ranging Module

Overview

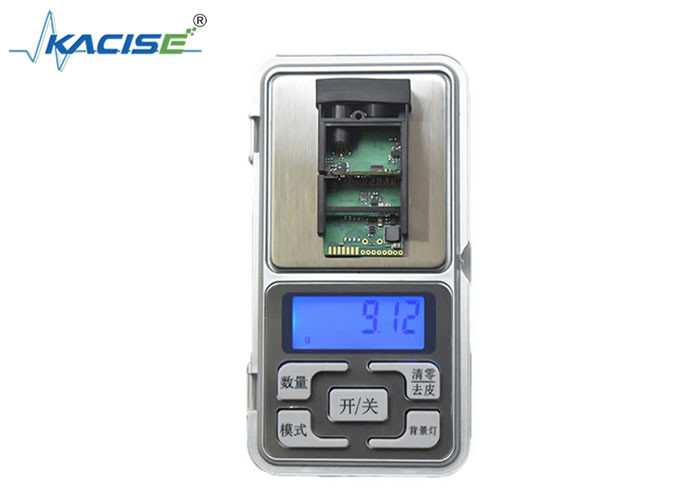

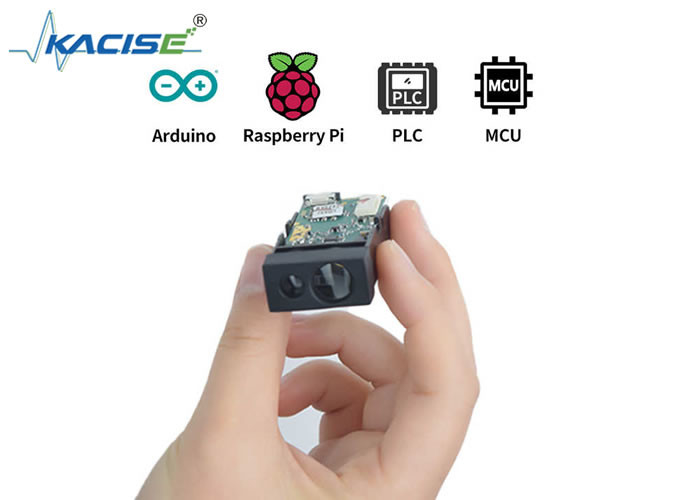

The LSBM - 60 Surveying High - Precision ITOF Laser Ranging Module is an essential tool for surveying work. By using advanced ITOF technology, it offers rapid and accurate ranging up to 60 meters. With an accuracy of ±3mm and 2 - mm repeatability precision, it ensures reliable surveying data. Weighing 9g and equipped with a UART interface, it’s easy to carry and integrate into surveying equipment. Operating from - 20℃ to 60℃ and consuming <0.27W, it’s a cost - effective and reliable solution for various surveying tasks.

Product Features

1. Delivers accurate measurements for reliable surveying results.

2. Lightweight and easy to integrate into surveying gear.

3. Cost - effective and adaptable to different surveying environments.

Technical Parameters

Mounting Type	Manual Installation
Description	Laser Distance Measuring Sensor 60m
Model Number	LSBM-60
Type	Distance Sensor
Series	Laser Distance Module 60m
Features	Small Size, High Precision, High Stability
Manufacturing Date Code	202501
Place of Origin	Henan, China
Brand Name	Siman
Theory	ITOF
Output	UART
Description	LSBM-60
Detection Range	60m
Frequency	3-20Hz
Repeatability precision	2mm
Accuracy	±3mm
Illuminant	635nm red visible laser
Service voltage	DC3.3V
Power dissipation	<0.27W
Weight	9g
Working temperature	-20~60℃
Interface	UART
