Name: LSDM Outdoor Exploration Long - Range DtoF Laser Ranging Module
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: LSDM
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

LSDM Outdoor Exploration Long - Range DtoF Laser Ranging Module

outdoor laser ranging module

long-range DtoF laser sensor

exploration laser distance sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

LSDM

Request A Quote

Product Details

Measuring Range:

3... 1500m@70% Reflectivity

Output:

UART

Resolution Ratio:

0.1m

Absolute Accuracy:

±1m

Service Voltage:

Typical Value Of DC+3.3V

Specification And Dimension:

26*24.6*11.4mm

Highlight:

outdoor laser ranging module

long-range DtoF laser sensor

exploration laser distance sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KL2A-25 LiDAR for robot navigation and obstacle avoidance, Absolute accuracy ±30mm

Get Best Price

Lidar can be used for ETC vehicle type recognition and can provide host computer software data analysis

Get Best Price

2D 360° Laser Scanning Radar, Navigation And Obstacle Avoidance

Get Best Price

Video

LSEM Construction Site Laser Radar Ranging Module

Get Best Price

86--17719566736

Contact Now

Product Description

LSDM Outdoor Exploration Long - Range DtoF Laser Ranging Module

Overview

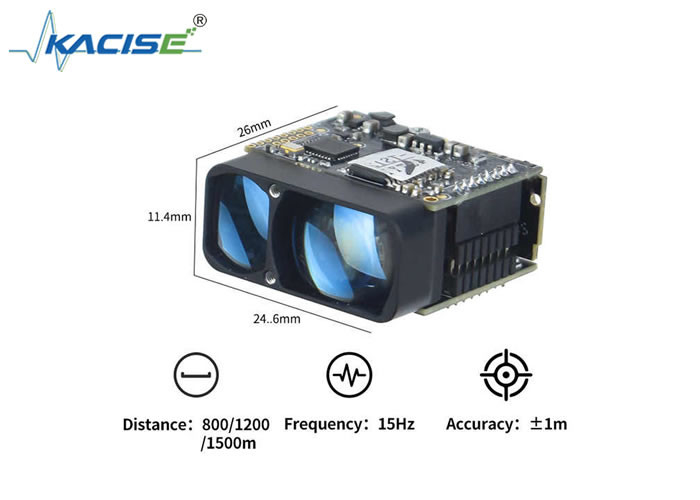

The LSDM Outdoor Exploration Long - Range DtoF Laser Ranging Module is an ideal companion for outdoor explorers. Equipped with advanced DTOF technology, it can measure distances up to 1500 meters at 70% reflectivity. Compact in size at 26×24.6×11.4mm and weighing only 10g, it's convenient to carry during outdoor expeditions. The UART interface enables high - speed data transfer for quick access to distance information. With a resolution of 0.1m and an accuracy of ±1m, it operates steadily in temperatures from - 20℃ to 70℃ and under intense sunlight, consuming only 500mW at 3.3V, helping explorers accurately measure distances and plan routes.

Product Features

1. Long - range measurement, meeting the needs of extensive outdoor exploration.

2. Portable and lightweight, suitable for long - term outdoor carrying.

3. Resistant to harsh environments, ensuring stable performance during outdoor use.

Technical Parameters

Mounting Type	Industrial Laser Displacement Sensor
Description	Laser Distance Measuring Sensor 1500m
Model Number	LSDM
Type	Distance Sensor
Series	LSDM
Features	Laser ranging sensor
Manufacturing Date Code	202501
Brand Name	Siman
Theory	TOF
Output	UART
Description	ong range laser sensor 1500 meter range
Measuring Range	3... 1500m@70% reflectivity
resolution ratio	0.1m
absolute accuracy	±1m
illuminant	The 905-nm laser light
service voltage	Typical value of DC+3.3V
specification and dimension	2624.611.4mm

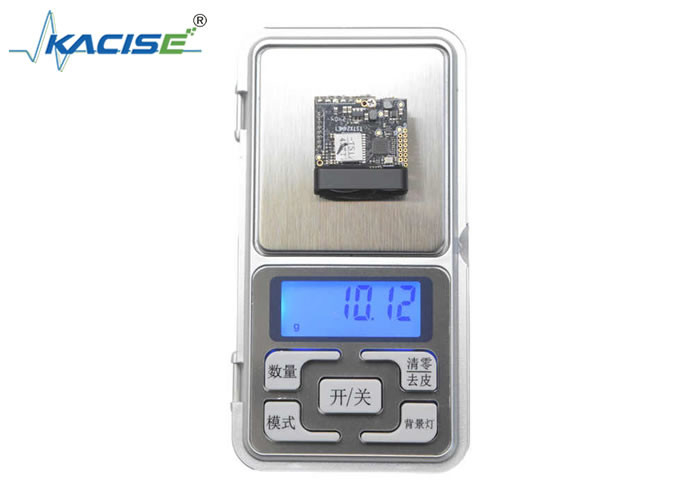

weight	10g
working temperature	-20~70℃
power dissipation	500mW@ 3.3V
Environmental light impact	Anti-outdoor sunlight 1000 kLu
