Name: KLSB Robotics High - Precision Laser Ranging Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLSB
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

KLSB Robotics High - Precision Laser Ranging Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLSB

Request A Quote

Product Details

Measuring Range:

30/60/100/150m

Accuracy:

±3mm

Work Laser:

635nm,Class 2

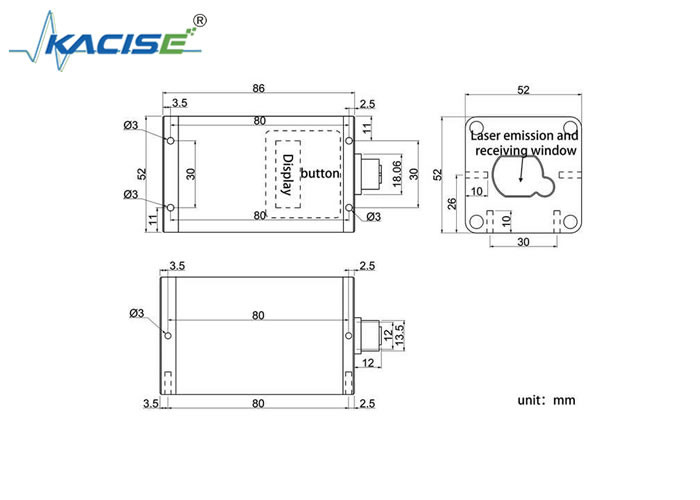

Size:

52*52*86mm

Case Protection Grade:

IP67

Measuring Frequency:

3...20Hz

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

KLSA Series Laser Ranging Sensors For Surveying And Engineering Construction

Get Best Price

Video

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

86--17719566736

Contact Now

Product Description

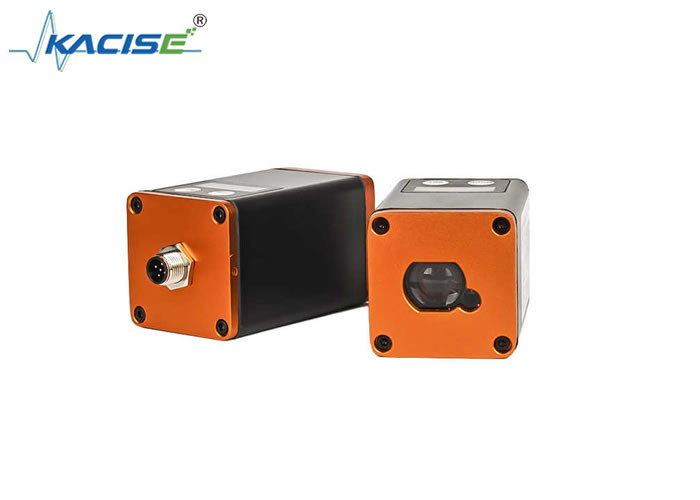

KLSB Robotics High - Precision Laser Ranging Sensor

Overview

The KLSB Robotics High - Precision Laser Ranging Sensor equips robots with reliable distance - sensing capabilities. Leveraging a sensitive infrared - enhanced SPAD sensor and TCSPC algorithms, it measures distances up to 20m. Under 100,000 Lux strong light, it still ranges up to 12m. The sensor’s multiple output options, including RS485 Modbus - RTU and 4 - 20mA, make it easy to integrate into robot control systems. The 4 - digit digital tube and button - based parameter configuration enhance user - friendliness, allowing robots to navigate and interact with their environment more effectively.

Product Features

High - Performance Sensing: Enables robots to accurately detect obstacles and navigate.

Flexible Output Options: Accommodates different robot control architectures.

User - friendly Configuration: Simplifies setup and operation for robotics applications.

Technical Parameters

Mounting Type	manual install
Description	Laser ranging sensor
Model Number	KLSB
Type	Distance Sensor
Manufacturing Date Code	202501
Place of Origin	Henan, China
Brand Name	Siman
Theory	ITOF
Output	RS485-Modbus RTU/4-20mA/UART
Description	SDB
measuring range	30/60/100/150m
accuracy	±3mm
measuring frequency	3...20Hz
Work laser	635nm,Class 2
