Name: LSDM Industrial Automation Long - Range DtoF Laser Ranging Module
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: LSDM
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

LSDM Industrial Automation Long - Range DtoF Laser Ranging Module

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

LSDM

Request A Quote

Product Details

Measuring Range:

3... 1500m@70% Reflectivity

Output:

UART

Resolution Ratio:

0.1m

Absolute Accuracy:

±1m

Service Voltage:

Typical Value Of DC+3.3V

Specification And Dimension:

26*24.6*11.4mm

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

KLSA Series Laser Ranging Sensors For Surveying And Engineering Construction

Get Best Price

Video

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

86--17719566736

Contact Now

Product Description

LSDM Industrial Automation Long - Range DtoF Laser Ranging Module

Overview

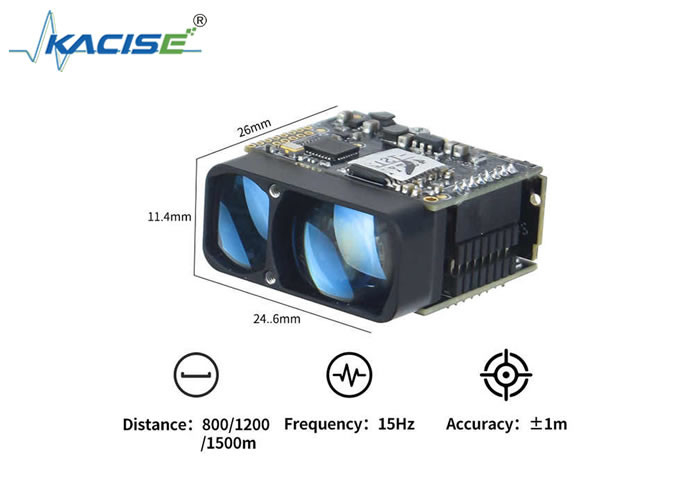

KACISE's LSDM Industrial Automation Long - Range DtoF Laser Ranging Module is a boon for industrial automation. Leveraging advanced DTOF technology, it achieves long - range measurements of up to 1500 meters at 70% reflectivity. Its compact size of 26×24.6×11.4mm and light weight of 10g make it suitable for installation in space - constrained industrial equipment. The UART interface facilitates high - speed data transfer, allowing for easy integration into industrial automation systems. With a resolution of 0.1m and an accuracy of ±1m, it operates stably in temperatures ranging from - 20℃ to 70℃ and under strong sunlight, consuming only 500mW at LSDM Industrial Automation Long - Range DtoF Laser Ranging Module Technical Parameters 3.3V.

Product Features

1. Long - range measurement, suitable for large - scale industrial inspections and positioning.

2. Compact and lightweight, enabling flexible installation in various industrial setups.

3. Resilient to environmental interference, ensuring stable industrial operations.

Technical Parameters

Mounting Type	Industrial Laser Displacement Sensor
Description	Laser Distance Measuring Sensor 1500m
Model Number	LSDM
Type	Distance Sensor
Series	LSDM
Features	Laser ranging sensor
Manufacturing Date Code	202501
Brand Name	Siman
Theory	TOF
Output	UART
Description	ong range laser sensor 1500 meter range
Measuring Range	3... 1500m@70% reflectivity
resolution ratio	0.1m
absolute accuracy	±1m
illuminant	The 905-nm laser light
service voltage	Typical value of DC+3.3V
specification and dimension	2624.611.4mm
weight	10g
working temperature	-20~70℃
power dissipation	500mW@ 3.3V
Environmental light impact	Anti-outdoor sunlight 1000 kLu
