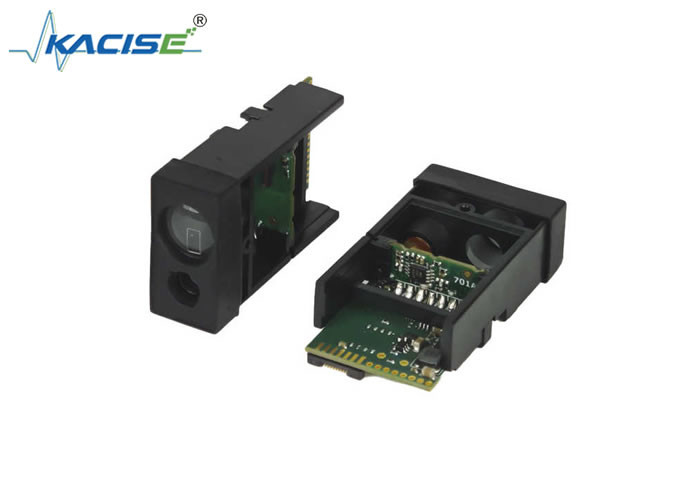

LSBM - 60 Industrial Automation High - Precision ITOF Laser Ranging Module

Overview

The LSBM - 60 Industrial Automation High - Precision ITOF Laser Ranging Module by KACISE is a remarkable addition to industrial automation setups. By adopting advanced ITOF technology, it offers swift response and highly accurate ranging. Measuring up to 60 meters with an accuracy of ±3mm and 2 - mm repeatability precision, it ensures reliable data collection. Weighing only 9g and equipped with a UART interface, it can be easily integrated into industrial systems. Operating within - 20℃ to 60℃ and consuming <0.27W, it’s an energy - efficient and cost - effective solution for industrial applications.

Product Features

1. Utilizes advanced ITOF technology for accurate measurements.

2. Compact and lightweight, facilitating easy integration into industrial equipment.

3. Energy - efficient with a wide operating temperature range.

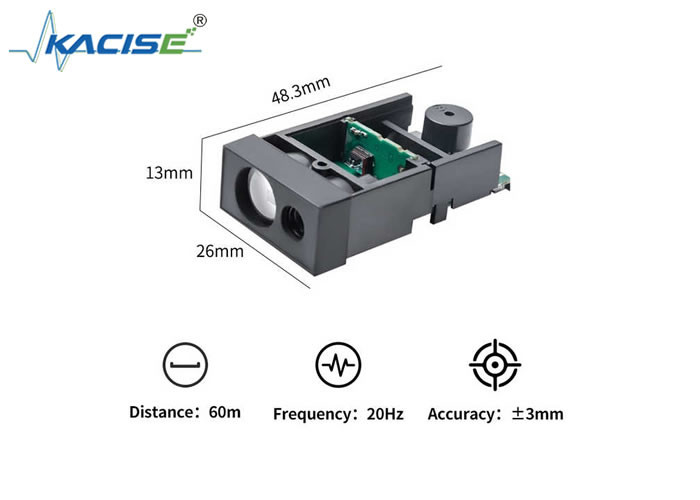

Technical Parameters

Mounting Type	Manual Installation
Description	Laser Distance Measuring Sensor 60m
Model Number	LSBM-60
Type	Distance Sensor
Series	Laser Distance Module 60m
Features	Small Size, High Precision, High Stability
Manufacturing Date Code	202501
Place of Origin	Henan, China
Brand Name	Siman
Theory	ITOF
Output	UART
Description	LSBM-60
Detection Range	60m
Frequency	3-20Hz
Repeatability precision	2mm
Accuracy	±3mm
Illuminant	635nm red visible laser
Service voltage	DC3.3V
Power dissipation	<0.27W
Weight	9g
Working temperature	-20~60℃
Interface	UART
