Name: KL3A - 05U Retail Store 3D Solid - State Lidar
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KL3A - 05U
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

KL3A - 05U Retail Store 3D Solid - State Lidar

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KL3A - 05U

Request A Quote

Product Details

Accuracy:

0.1~0.5m@±2.5cm;0.5~5m@±1%

Description:

SGA-05U

Output:

USB 2.0 Protocol, Type C Interface

Operating System:

Win 10,Linux,ROS

Power Supply:

5V, Average 0.5A

VCSEL Wavelength:

940nm

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

KLSA Series Laser Ranging Sensors For Surveying And Engineering Construction

Get Best Price

Video

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

86--17719566736

Contact Now

Product Description

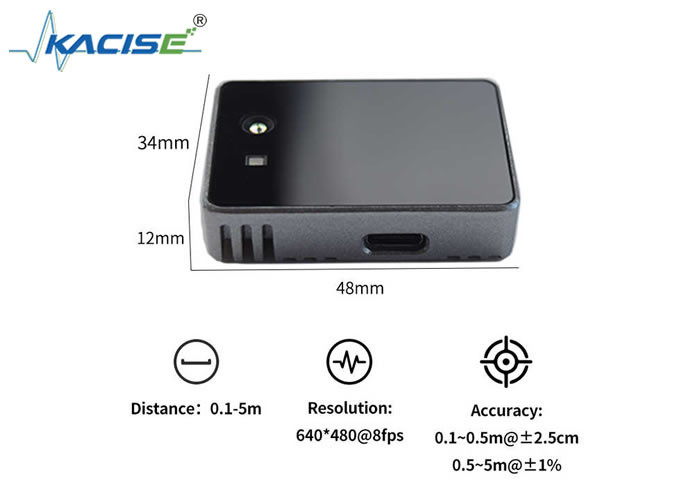

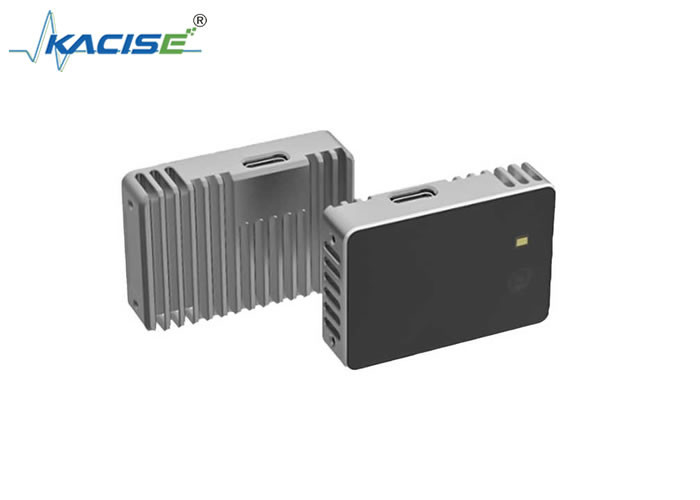

KL3A - 05U Retail Store 3D Solid - State Lidar

Overview

Designed for retail stores, the KL3A - 05U Retail Store 3D Solid - State Lidar from KACISE is a powerful tool for space monitoring. Leveraging ToF technology, it scans the store environment within a 0.1 - 5m range. With an H60°×V45° field of view, it captures a broad area. The Type C interface simplifies power supply and data output through the USB 2.0 protocol. Compatible with multiple operating systems, it functions well between - 10℃ and 50℃. Its low power consumption and CLASS 1 laser ensure safe and KL3A - 05U Retail Store 3D Solid - State Lidar

cost - effective operation for long - term use in retail settings.

Product Features

1. Covers a wide field of view for comprehensive store monitoring.

2. Ensures safety with a CLASS 1 laser and energy - efficient operation.

3. Facilitates easy data access and integration with existing systems.

Technical Parameters

Mounting Type	Manual installation
Description	3D laser radar
Model Number	KL3A-05U
Type	Distance Sensor
Series	KL3A-05U
Features	3D laser radar
Manufacturing Date Code	202501
Brand Name	Siman
Theory	TOF
Output	USB 2.0 protocol, Type C Interface
Description	KL3A-05U
Working distance	0.1-5m, indoor
Accuracy	0.1~0.5m@±2.5cm;0.5~5m@±1%
Resolution	640480@8fps/320240@20fps
FOV	H60°xV45°
VCSEL wavelength	940nm
Power supply	5V, average 0.5A
operating system	Win 10,Linux,ROS
Working temperature	-10 ~ 50℃
Laser level	CLASS 1
Data transmission	USB 2.0 protocol, Type C Interface
