Name: KLSC Stacking Machine High - Precision Industrial Laser Ranging Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLSC
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

KLSC Stacking Machine High - Precision Industrial Laser Ranging Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLSC

Request A Quote

Product Details

Measurement:

0.1...25m

Measuring Rate:

1...25Hz

Description:

2D 360 ° Laser Scanning Radar

Type:

Distance Sensor

Absolute Accuracy:

±30mm

Power Dissipation:

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

KL2A-25 LiDAR for robot navigation and obstacle avoidance, Absolute accuracy ±30mm

Get Best Price

Lidar can be used for ETC vehicle type recognition and can provide host computer software data analysis

Get Best Price

86--17719566736

Contact Now

Product Description

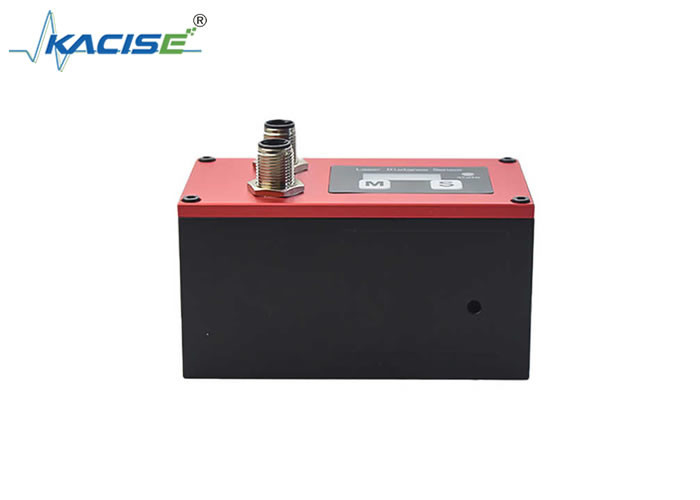

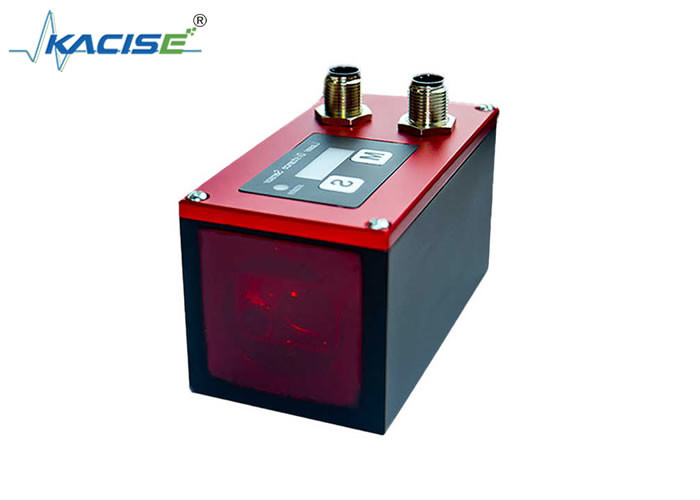

KLSC Stacking Machine High - Precision Industrial Laser Ranging Sensor

Overview

The KLSC Stacking Machine High - Precision Industrial Laser Ranging Sensor is purpose - built for stacking machines. Employing advanced ITOF technology, it can measure distances up to 200m with an accuracy of 卤1mm. Operating at a high frequency of up to 100Hz, it can track the fast - moving parts of stacking machines. With multiple communication interfaces like RS485, SSI, and Ethernet, it seamlessly integrates with stacking machine control systems. The IP67 protection grade safeguards it from dust and water, ensuring stable operation. The built - in OLED display and button - based parameter settings enhance user convenience.

Product Features

1. Ultra - high precision with ±1mm accuracy for precise stacking operations.

2. High measurement frequency of up to 100Hz to keep up with fast - paced stacking processes.

3. IP67 protection for reliable performance in dusty and wet environments.

Technical Parameters

Specifications
Measurement	0.05…30/60/100/150/200m
frequency	0.1mm
Duplicate accuracy	0.5mm
Accuracy	±1mm
Measuring frequency	1…30…100Hz
Response time	Min 10ms
Exercise target speed	＜5m/s
Measure the target object	Natural surface or dedicated reflex board
Environmental light effect	Anti -outdoor sunlight 1000klux
Light source	650 ~ 660nm,<1mW,II class
Light spot size diameter	6mm@10m；30mm@50m:60mm@100m
Power supply voltage	DC7~26V
Average current	100mA@10V
Power consumption	＜1.5W
Shell material	aluminum
Dust -proof lens material	PC

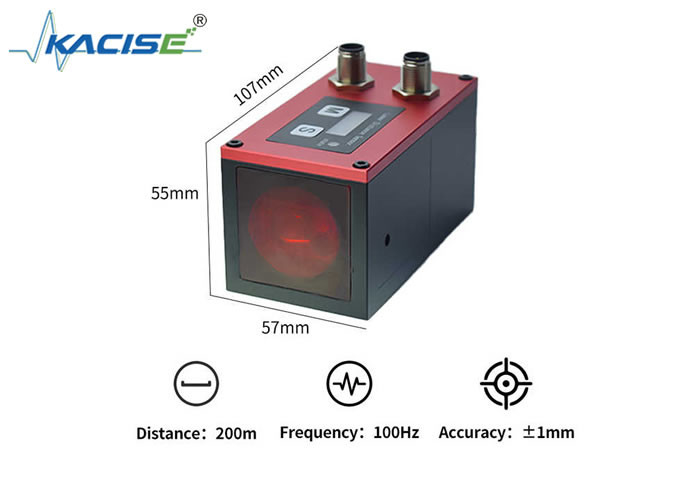

Specification	5757108mm
Shell protection level	IP67
weight	445g
Working temperature	20~60℃
Laser life	100,000h or more
Install	With installation brackets, can be equipped with anti -light board
