Name: KLSC Warehousing Logistics High - Precision Industrial Laser Ranging Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLSC
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

KLSC Warehousing Logistics High - Precision Industrial Laser Ranging Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLSC

Request A Quote

Product Details

Measuring Rate:

1...25Hz

Measurement:

0.1...25m

Description:

2D 360 ° Laser Scanning Radar

Absolute Accuracy:

±30mm

Type:

Distance Sensor

Power Dissipation:

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

KLSA Series Laser Ranging Sensors For Surveying And Engineering Construction

Get Best Price

Video

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

86--17719566736

Contact Now

Product Description

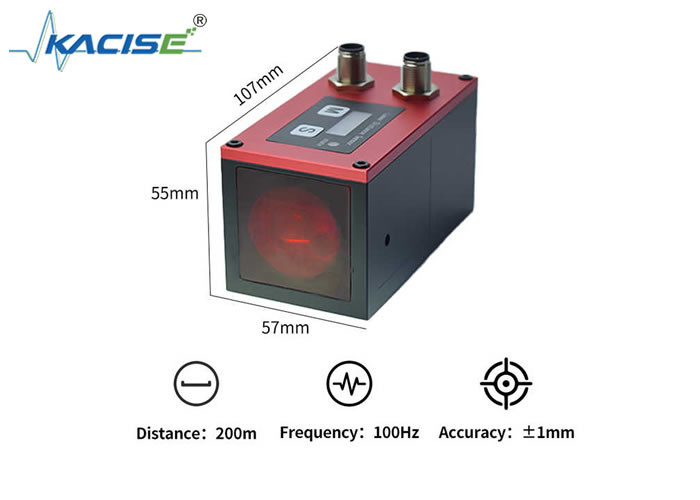

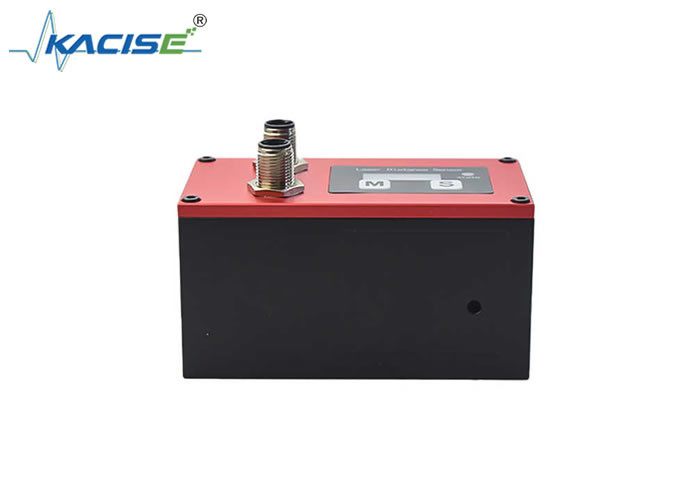

KLSC Warehousing Logistics High - Precision Industrial Laser Ranging Sensor

Overview

Designed for warehousing logistics, the KLSC Warehousing Logistics High - Precision Industrial Laser Ranging Sensor is a reliable asset. Using ITOF technology, it measures distances from 0.05m to 200m with 卤1mm accuracy. Its high measurement frequency of up to 100Hz enables real - time monitoring of inventory movement. Multiple industrial communication interfaces such as CANBUS and 4 - 20mA analog output facilitate seamless integration with warehouse management systems. The IP67 - rated housing protects against dust and water, and the OLED display and easy parameter settings enhance usability.

Product Features

1. High - precision measurement for accurate inventory tracking and location control.

2. Multiple communication interfaces for easy integration with warehouse systems.

3. IP67 protection to withstand harsh warehouse environments.

Technical Parameters

Specifications
Measurement	0.05…30/60/100/150/200m
frequency	0.1mm
Duplicate accuracy	0.5mm
Accuracy	±1mm
Measuring frequency	1…30…100Hz
Response time	Min 10ms
Exercise target speed	＜5m/s
Measure the target object	Natural surface or dedicated reflex board
Environmental light effect	Anti -outdoor sunlight 1000klux
Light source	650 ~ 660nm,<1mW,II class
Light spot size diameter	6mm@10m；30mm@50m:60mm@100m
Power supply voltage	DC7~26V
Average current	100mA@10V
Power consumption	＜1.5W
Shell material	aluminum
Dust -proof lens material	PC
Specification	5757108mm
Shell protection level	IP67
weight	445g
Working temperature	20~60℃
Laser life	100,000h or more
Install	With installation brackets, can be equipped with anti -light board
