SBWZ-PT100 Integrated Temperature Transmitter Module with 24V Power Supply PT100 Thermal Resistance and 4-20mA Output

SBWZ-PT100 Integrated Temperature Transmitter Module with 24V Power Supply PT100 Thermal Resistance and 4-20mA Output

Integrated Temperature Transmitter Module

SBWZ-PT100 Integrated Temperature Transmitter Module

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

SBWZ-PT100

Contact Us
Request A Quote
SBWZ-PT100 Integrated Temperature Transmitter Module with 24V Power Supply PT100 Thermal Resistance and 4-20mA Output SBWZ-PT100 Integrated Temperature Transmitter Module with 24V Power Supply PT100 Thermal Resistance and 4-20mA Output
Product Details
Working Power Supply:
24V
Sensor:
Various Thermal Resistances
Measurement Accuracy:
0.002
Operating And Storage Temperature:
-40℃ - 120℃
Excitation Current:
0.2mA
Housing Material:
PA66
Highlight:

Integrated Temperature Transmitter Module

,

SBWZ-PT100 Integrated Temperature Transmitter Module

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price AK6-APL110-C007R Series Temperature Controller with 48×48 Panel Size RS485 Communication and Non-Volatile Memory online

AK6-APL110-C007R Series Temperature Controller with 48×48 Panel Size RS485 Communication and Non-Volatile Memory

Get Best Price
Good price SBWZ-PT100 Integrated Temperature Transmitter Module with 24V Power Supply PT100 Thermal Resistance and 4-20mA Output online

SBWZ-PT100 Integrated Temperature Transmitter Module with 24V Power Supply PT100 Thermal Resistance and 4-20mA Output

Get Best Price
Good price PT100 Temperature Transmitter -55～1200℃ IP65 Stainless Steel online

PT100 Temperature Transmitter -55～1200℃ IP65 Stainless Steel

Get Best Price
CONTACT US
Contact Now
Product Description

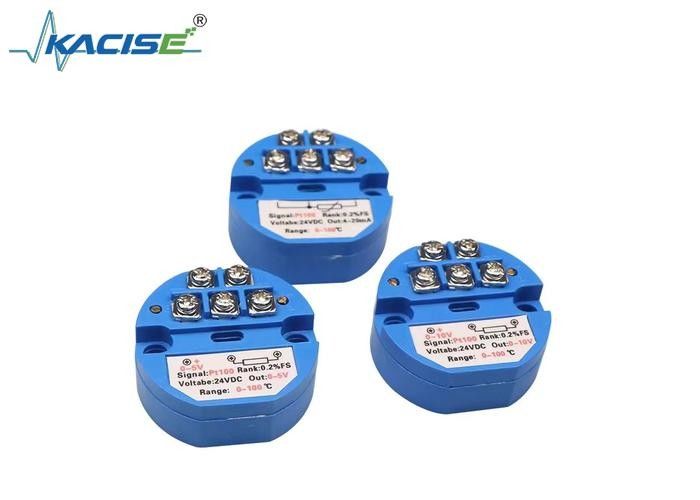

SBWZ-PT100 Integrated Temperature Transmitter Module
The SBWZ-PT100 integrated temperature transmitter module is a precision instrument featuring a PT100 thermal resistance sensor with 4-20mA output signal, designed for reliable temperature measurement in industrial applications.
Key Features
  • High accuracy PT100 thermal resistance sensor
  • 4-20mA two-wire output system
  • Robust PA66 housing material
  • Wide operating temperature range
  • Precision measurement with 0.2% accuracy
Technical Specifications
Parameter Value
Working Power Supply 24V
Measurement Accuracy 0.2%
Operating Temperature -30℃ to 80℃
Storage Temperature -40℃ to 120℃
Excitation Current 0.2mA
Housing Material PA66
Load 250Ω or 500Ω
Mounting Screw M3*5
Temperature Coefficient ≤25ppM/CF.S
Output Two-wire system, 4-20mA
SBWZ-PT100 Integrated Temperature Transmitter Module with 24V Power Supply PT100 Thermal Resistance and 4-20mA Output 0 SBWZ-PT100 Integrated Temperature Transmitter Module with 24V Power Supply PT100 Thermal Resistance and 4-20mA Output 1
