Name: Auto Parts Automotive Air Conditioning Pressure Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KAW100
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Auto Parts Automotive Air Conditioning Pressure Sensor

Automotive Air Conditioning Pressure Sensor

Auto Parts Pressure Sensor

Automotive Pressure Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KAW100

Request A Quote

Auto Parts Automotive Air Conditioning Pressure Sensor

Product Details

Power Supply:

4.75~5.25VDC(( With Reverse Polarity Protecticion Overvoltage Protection 32V DC

Supply Current:

15mA MAX

Pressure Range:

0~5Bar、0~10Bar、0~20Bar、0~40Bar、(Cutomized)

Output:

0.5V~4.5V DC,(10%-90%VCC)

Process Connection:

G1/4，7/16-UNFfemale,(cusomized)

Electrical Connector:

Pack

Highlight:

Automotive Air Conditioning Pressure Sensor

Auto Parts Pressure Sensor

Automotive Pressure Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Auto Parts Automotive Air Conditioning Pressure Sensor

Get Best Price

4-20mA Output Food Grade Sanitary Flush Diaphragm Hygienic Industrial Pressure Transmitter

Get Best Price

Low Cost 0.5-4.5V Brass Water Pressure Sensor For Industrial Air Gas

Get Best Price

4-20mA HART Output Smart Double Flange Differential Level Pressure Transmitter for Industrial

Get Best Price

86--17719566736

Contact Now

Product Description

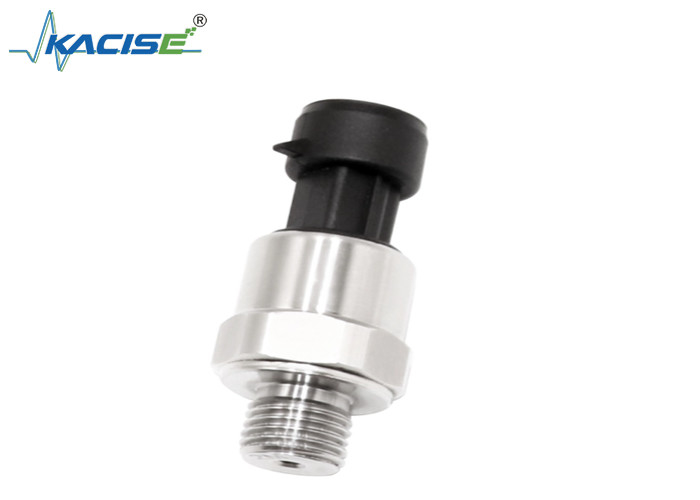

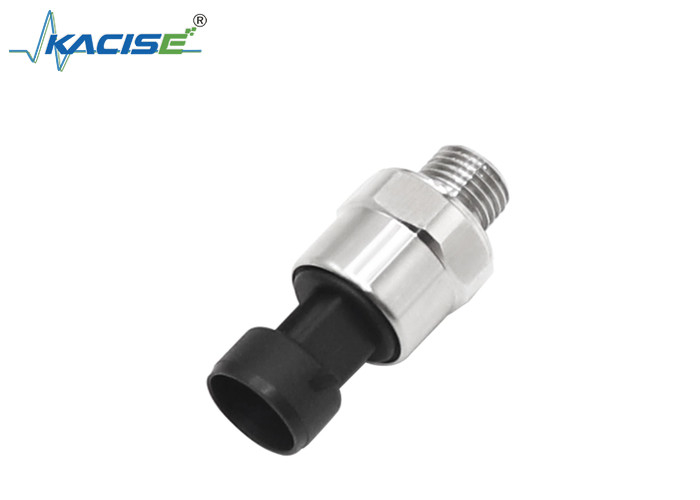

Auto Parts Automotive Air Conditioning Pressure Sensor

Introduction

The KAW100 is a diffusible silicon oil-filled pressure sensor designed forautomotive use. The element is made with a fully welded 316L diaphragm anddoes not require any O-ring seals that could come into contact with the pressuremedium, making it compatible with all types of liquids. The absence of anymoving parts results in a longer service life. With high temperature stability andaccuracy,this pressure sensor is mainly used in automotive, transmission, airconditioning and oil pressure measurement applications.

Product Applications

Multiple process connection options for easy installation. 1% typical accuracy, providing excellent accuracy for critical applications. Factory calibrated, no field calibration required. Plug-and-play reliability. Rugged, compact design saves installation space. OEM/ODM available to accommodate special needs.

Product Description

Model	KAW100
Power Supply	4.75~5.25VDC(( With reverse polarity protecticion overvoltage protection 32V DC
Supply current	15mA MAX
Pressure range	0~5Bar,0~10Bar,0~20Bar,0~40Bar,(Cutomized)
Output	0.5V~4.5V DC,(10%-90%VCC)
Process Connection	G1/4,7/16-UNFfemale,(cusomized)
Electrical connector	Pack
Working Temperature	-40℃C~130℃℃
Storage Temperature	-50℃~135C
Safe Pressure	1.5~2 time of the pressure range
Burst Pressyre	100Bar G
Accuracy	+1%F.S( Linearity,Hysteresis, Repeatability, Calibration)
Total Error Band	Static error band @25℃,5VDC,+3%(-30℃~125°℃)
Meadium	Engine oil, POE oil, refrigerant, gas, water or liquid
Material	Housing 304 SST; wetted parts 316L
Mounting Torque	10~20N·m
Anti-freeze function	The sensor has no anti-freezing function when the sensor's working medium is water.
