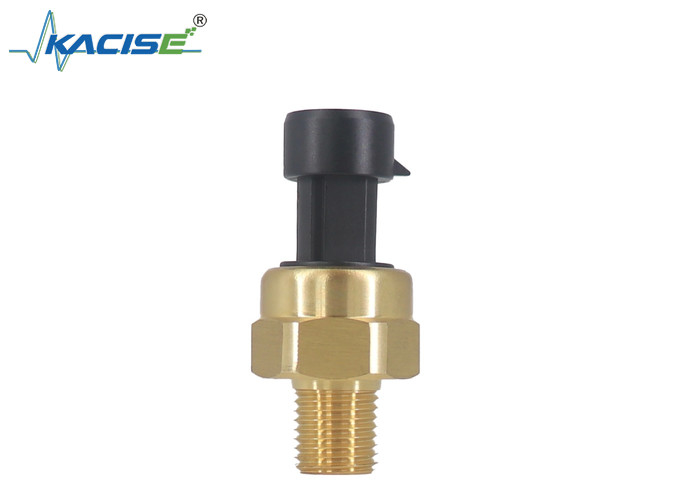

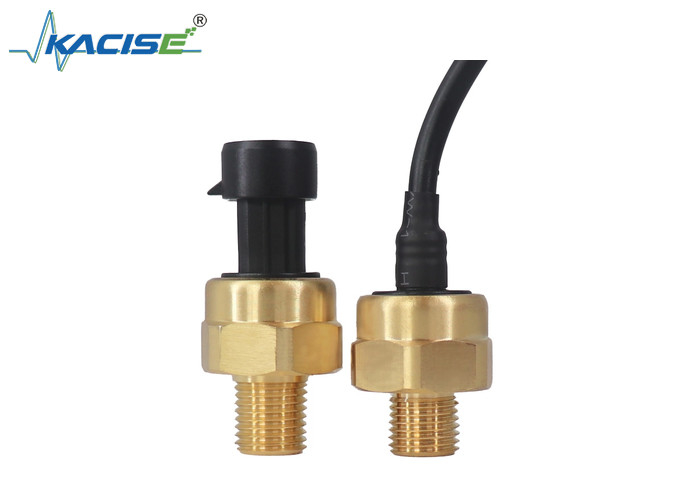

Low Cost 0.5-4.5V Brass Water Pressure Sensor For Industrial Air Gas

Low Cost 0.5-4.5V Brass Water Pressure Sensor For Industrial Air Gas

Low Cost Water Pressure Sensor

0.5-4.5V Water Pressure Sensor

Industrial Air Gas Water Pressure Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KAW102

Contact Us
Request A Quote
Low Cost 0.5-4.5V Brass Water Pressure Sensor For Industrial Air Gas Low Cost 0.5-4.5V Brass Water Pressure Sensor For Industrial Air Gas
Product Details
Pressure range:
0-1MPa,0-2MPa
Applicable media:
Liquid, Gas And Steam
Cell:
Ceramic Capacitive Pressure Sensor
Output:
0.5-4.5V
Power supply:
4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability):
1%F.S.
Highlight:

Low Cost Water Pressure Sensor

,

0.5-4.5V Water Pressure Sensor

,

Industrial Air Gas Water Pressure Sensor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Auto Parts Automotive Air Conditioning Pressure Sensor online

Auto Parts Automotive Air Conditioning Pressure Sensor

Get Best Price
Good price 4-20mA Output Food Grade Sanitary Flush Diaphragm Hygienic Industrial Pressure Transmitter online

4-20mA Output Food Grade Sanitary Flush Diaphragm Hygienic Industrial Pressure Transmitter

Get Best Price
Good price Low Cost 0.5-4.5V Brass Water Pressure Sensor For Industrial Air Gas online

Low Cost 0.5-4.5V Brass Water Pressure Sensor For Industrial Air Gas

Get Best Price
Good price 4-20mA HART Output Smart Double Flange Differential Level Pressure Transmitter for Industrial online

4-20mA HART Output Smart Double Flange Differential Level Pressure Transmitter for Industrial

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

Low Cost 0.5-4.5V Brass Water Pressure Sensor For Industrial Air Gas





Product Description

Applicable media Liquid, gas and steam
Pressure range 0-1MPa,0-2MPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~70ºC
Ambient temperature -40~110ºC
Working temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~70ºC)
Electrical connection Cable Outlet/Parkard Connector
Mechanical connection G1/4, NPT 1/4 Male
Housing material Brass
