Name: 4-20ma Hvac Differential Digital Air Pressure Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KAW110
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

4-20ma Hvac Differential Digital Air Pressure Sensor

4-20ma Digital Air Pressure Sensor

Hvac Differential Digital Air Pressure Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KAW110

Request A Quote

4-20ma Hvac Differential Digital Air Pressure Sensor

Product Details

Applicable Media:

Gas, Steam

Pressure Range:

-0.25-0.25kPa/-0.5-0.5kPa/-1-1kPa/-2-2kPa/-7-7kPa/-100-100kPa

Accuracy:

±0.1%FS

Stability:

0.8%F.S./Year

Max Overload:

250% Of Sensor Range

Output Signals:

2-Wire 4-20mA/0-10V/RS485/2xPNP

Highlight:

4-20ma Digital Air Pressure Sensor

Hvac Differential Digital Air Pressure Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Auto Parts Automotive Air Conditioning Pressure Sensor

Get Best Price

4-20mA Output Food Grade Sanitary Flush Diaphragm Hygienic Industrial Pressure Transmitter

Get Best Price

Low Cost 0.5-4.5V Brass Water Pressure Sensor For Industrial Air Gas

Get Best Price

4-20mA HART Output Smart Double Flange Differential Level Pressure Transmitter for Industrial

Get Best Price

86--17719566736

Contact Now

Product Description

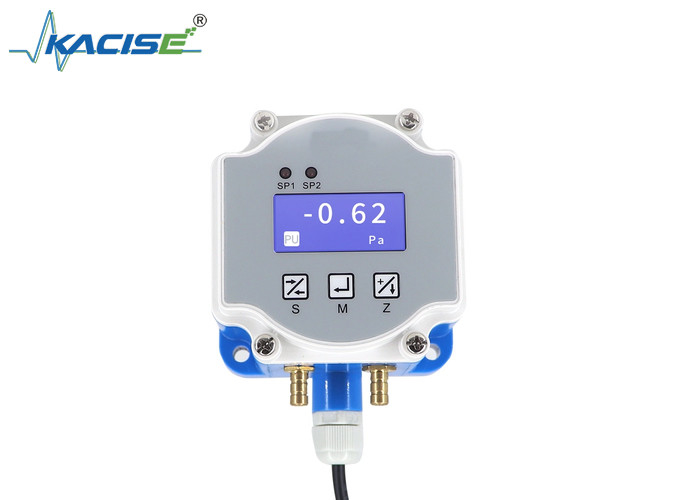

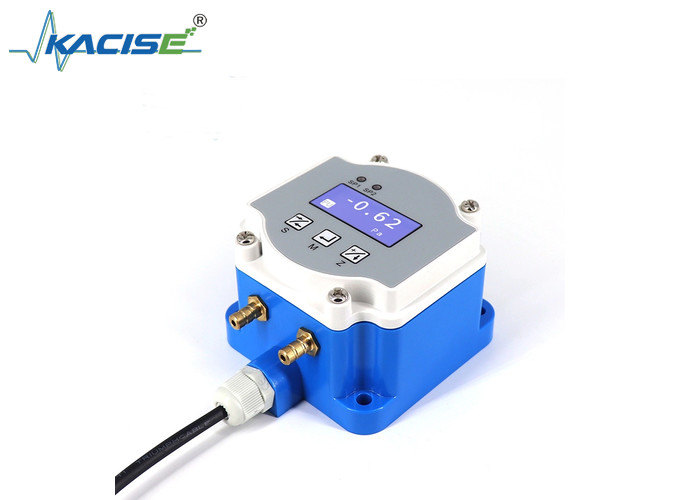

4-20ma Hvac Differential Digital Air Pressure Sensor

Introduction

KAW110 intelligent pressure transmitter is assembled with aluminum housing and stress isolation technology. Integrated structure design lead to compact layout. With intelligent compensation technology, it is suitable for wind pressure,wind speed & flow measurement. It is widely used in various industrial fields as well as intelligent building and other construction projects, such as power plant boiler primary air,secondary air measuring, mine ventilation,indoor ventilation, boiler air, pressure of fan, air duct pressure, Metro wind pressure and environment wind pressure test.

Application

It is the best micro pressure measurement equipment for textile machinery,natural gas pipeline monitoring,dust removal system, HVAC,clean laboratory and medical equipment etc.

Product Description

Intelligent Macro Differential Pressure Transmitter
Applicable media	Gas, Steam
Pressure Measurement	Gauge pressure, Differential pressure
Pressure range	-0.25-0.25kPa/-0.5-0.5kPa/-1-1kPa/-2-2kPa/-7-7kPa/-100-100kPa
Accuracy	±0.1%FS
Stability	0.8%F.S./Year
Max overload	250% of sensor range
Output signals	2-Wire 4-20mA/0-10V/RS485/2xPNP
Electrical Connections	Terminal or M12
Power Supply	12-32V DC
Compensation Temperature	0-60℃
