Product Introduction

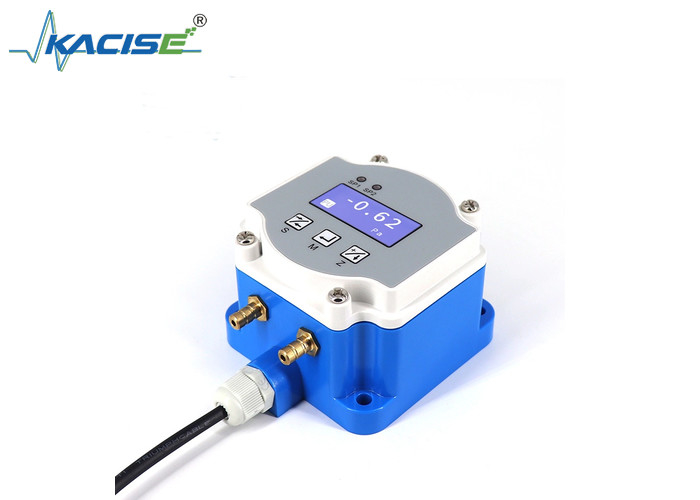

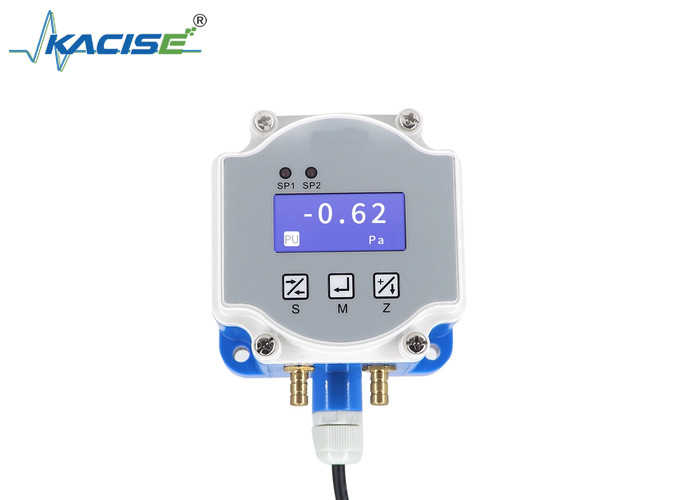

The KAW110 Digital Differential Air Pressure Sensor, featuring an aluminum housing and stress isolation technology, has an integrated and compact structure design. Equipped with intelligent compensation technology, it is highly suitable for measuring wind pressure, wind speed, and flow.

In the industrial field, it plays a crucial role in various applications. For example, in power plants, it accurately measures the primary and secondary air pressure of boilers. In mines, it monitors the ventilation system. In the construction field, it is used for indoor ventilation monitoring, measuring the pressure of fans and air ducts. It also contributes to the wind pressure testing in subways and environmental projects.

This sensor is applicable to media such as gas and steam, and can measure gauge pressure and differential pressure. The pressure range includes options like -0.25-0.25kPa, -0.5-0.5kPa, -1-1kPa, -2-2kPa, -7-7kPa, and -100-100kPa. With an accuracy of ±0.1%FS and a stability of 0.8%F.S. per year, it ensures reliable measurement results. It can withstand a maximum overload of 250% of the sensor range. The output signals are diverse, including 2-Wire 4-20mA, 0-10V, RS485, and 2xPNP. The electrical connections can be made via terminals or M12 connectors, and it is powered by a 12-32V DC power supply. The compensation temperature range is 0-60℃.

Features

• Compact and Durable Design: The aluminum housing and stress isolation technology provide a compact and sturdy structure.
• Intelligent Compensation: The intelligent compensation technology ensures accurate measurement of wind pressure, wind speed, and flow.
• Wide Pressure Range: Covers a variety of pressure ranges to meet different application requirements.
• High Accuracy: Achieves an accuracy of ±0.1%FS for reliable pressure measurement.
• Good Stability: Maintains a stability of 0.8%F.S. per year for consistent performance.
• Strong Overload Capacity: Can handle a maximum overload of 250% of the sensor range.
• Diverse Output Signals: Offers multiple output signal options for easy integration with different systems.
• Flexible Electrical Connections: Provides terminal and M12 connector options for convenient electrical connections.
• Suitable Temperature Compensation: The compensation temperature range of 0-60℃ ensures accurate measurement in a certain temperature environment.

Application

It is the best micro pressure measurement equipment for textile machinery,natural gas pipeline monitoring,dust removal system, HVAC,clean laboratory and medical equipment etc.
