Smart Water Management System KAW107 IoT Pressure Sensor with 0-10bar Pressure Range and High Temperature Resistance

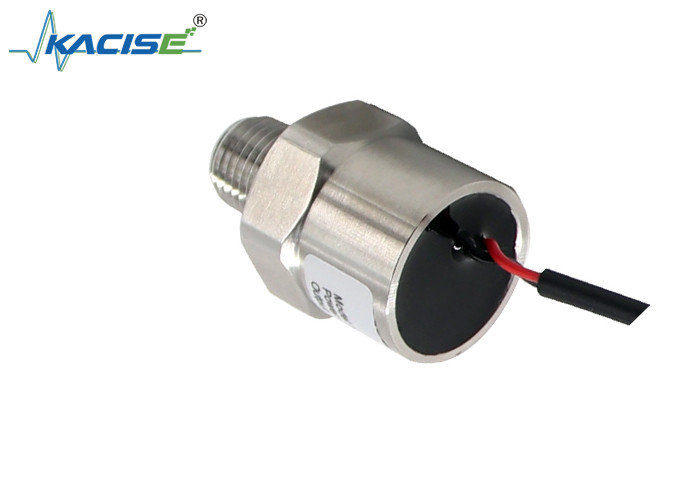

KAW107 Smart Connected Micro-control Customized IoT Pressure Sensor for Smart Water Management System

Product Introduction

The KAW107 Smart Connected Micro-control Customized IoT Pressure Sensor, with 13 years of experience in sensor research, development, production, and sales, is specifically designed for the Smart Water Management System. It utilizes advanced technologies such as high-performance ceramic capacitive pressure sensors or diffused silicon pressure sensors.

This sensor offers a variety of output options including 4~20mA, I2C, SPI, etc., enabling precise measurement of pressure within the range of 0 - 10bar, covering gauge pressure, absolute pressure, and sealing gauge pressure types. With an accuracy of up to ±0.5%FS or ±1%FS, it ensures reliable data collection. The operating temperature range is from -40℃ to 150℃, and the compensation temperature ranges from -20℃ to 70℃, allowing it to operate stably in harsh environments.

It provides various pressure connection methods like G1/4, 7/16-SAE, NPT, etc., and has an ingress protection rating of IP67. The housing is made of SS304 or SS316 materials. With support for OEM, ODM, and customization services, it can meet different installation and application requirements, whether for small device integration or complex system construction, providing a reliable pressure monitoring solution for the Smart Water Management System.

Features

• Advanced Sensing Technology: Adopts high-performance ceramic capacitive or diffused silicon pressure sensors for accurate pressure measurement.
• Diverse Outputs: Multiple output signals such as 4~20mA, I2C, SPI, etc., for easy integration with different systems.
• Wide Pressure Range: Capable of measuring pressure from 0 to 10bar, suitable for various water management scenarios.
• High Accuracy: Offers accuracy levels of ±0.5%FS or ±1%FS, ensuring reliable measurement results.
• Broad Temperature Adaptability: Operates within a wide temperature range from -40℃ to 150℃ and has effective temperature compensation from -20℃ to 70℃.
• Rich Connection Options: Various pressure connection methods and different types of connectors (packard, M12, Small Hirschman, etc.) for flexible installation.
• High Protection Level: IP67 ingress protection and sturdy SS304 or SS316 housing for durability in different environments.
• Customization Support: OEM, ODM, and customization services available to meet specific customer needs.

Product Description
