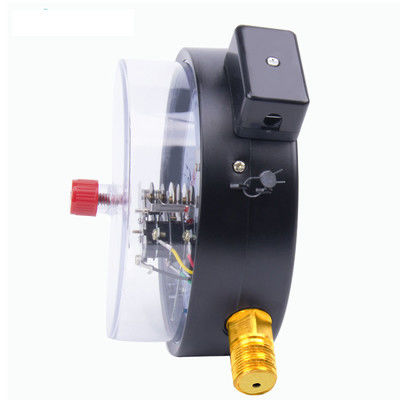

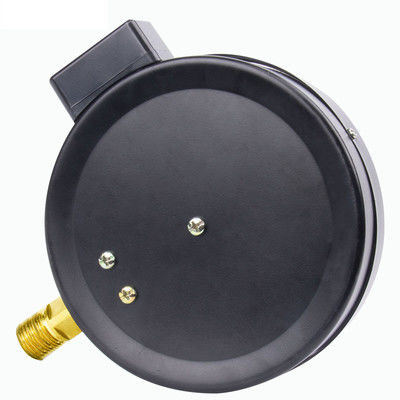

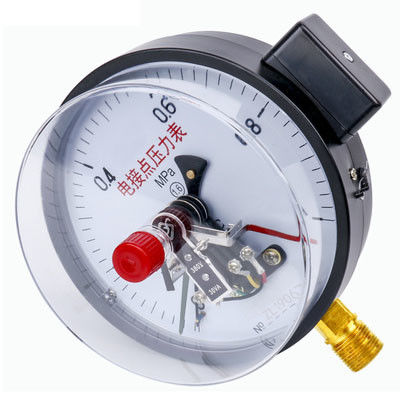

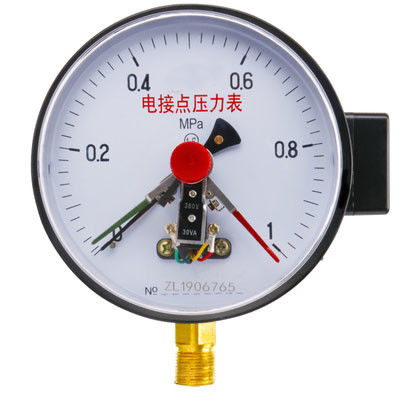

KMC-YXC150 Stainless Steel Shockproof Electric Contact Pressure Gauge

KMC-YXC150 Stainless Steel Shockproof Electric Contact Pressure Gauge

Product Introduction

The KMC-YXC150 Stainless Steel Shockproof Electric Contact Pressure Gauge is a robust industrial instrument designed for precise pressure measurement in harsh environments. With a range of 0–60MPa, it is suitable for non-corrosive liquids, gases, and other media that pose no explosion hazard to copper alloys. The gauge features a stainless-steel housing and shockproof design, ensuring reliable performance in vibrating or impact-prone conditions. Its electric contact mechanism enables automatic switching for pressure-based control or alarm systems, making it ideal for industrial process monitoring and safety applications.

Key Features

• Wide Measurement Range: 0–60MPa capacity for high-pressure industrial systems, including hydraulic, oil, and gas applications.
• Shockproof & Corrosion-Resistant: Stainless-steel construction with electroplated finish resists corrosion and withstands mechanical shocks.
• Electric Contact Functionality: Integrates electrical contacts to trigger alarms or control circuits when pressure reaches preset limits (220V/380V operating voltage, 30VA power).
• Versatile Design: Available in anti-vibration, corrosion-resistant, and combined anti-vibration/corrosion-resistant models, with over 10 variants featuring isolation devices.
• Clear Visual Indication: 145mm dial diameter for easy on-site pressure reading, with customizable multi-unit display panels (e.g., PSI, kPa, MPa).
• Harsh Environment Suitability: Operates in temperatures from -40°C to 70°C, suitable for extreme industrial conditions.
• Technical Specifications

Technical Specifications
