Name: Dwyer 1638 Series Precision Pressure Switch for HVAC Systems
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 1638-0,1638-1,1638-10,1638-2,1638-5
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Dwyer 1638 Series Precision Pressure Switch for HVAC Systems

Dwyer 1638 HVAC pressure switch

precision pressure sensor for HVAC

Dwyer 1638 pressure switch

Brand Name:

Dwyer

Certification:

Model Number:

1638-0,1638-1,1638-10,1638-2,1638-5

Request A Quote

Dwyer 1638 Series Precision Pressure Switch for HVAC Systems

Product Details

Service:

Air And Non-combustible, Compatible Gases

Temperature Limits:

-30 To 110°F

Pressure Limits:

10 Psig (68.95 KPa) Continuous, 25 Psig (172.4 KPa) Surge

Repeatability:

±1%

Process Connections:

1/8" Female NPT

Mounting Orientation:

Diaphragm In Vertical Position

Highlight:

Dwyer 1638 HVAC pressure switch

precision pressure sensor for HVAC

Dwyer 1638 pressure switch

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

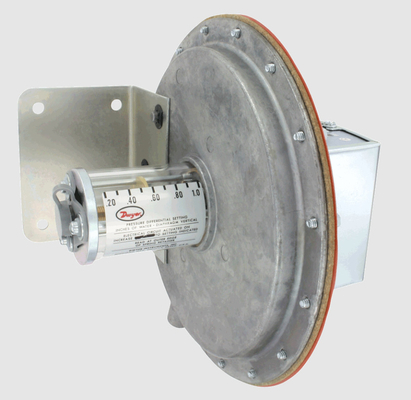

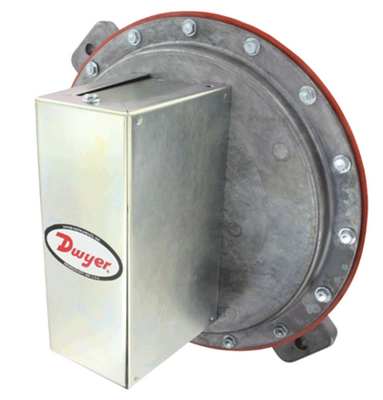

Dwyer 1638 Series Precision Pressure Switches

Product Specifications

Attribute	Value
Service	Air And Non-combustible, Compatible Gases
Temperature Limits	-30 To 110°F
Pressure Limits	10 Psig (68.95 KPa) Continuous, 25 Psig (172.4 KPa) Surge
Repeatability	±1%
Process Connections	1/8" Female NPT
Mounting Orientation	Diaphragm In Vertical Position

Product Overview

The Dwyer 1638 Series Precision Pressure Switches are designed for HVAC systems, process control, and industrial applications requiring accurate pressure activation. Available in models including 1638-5, these switches deliver reliable performance in demanding environments.

Key Features

Visible Set Point Indicator: Clear, easy-to-read dial enables real-time visualization of pressure set points for simplified setup, operation, and troubleshooting.
Large Diaphragm Design: Provides precise pressure sensing in low ranges for reliable activation at exact pressure points, ideal for applications with minor pressure fluctuations.
High Current Load Capability: Supports up to 15 amps, eliminating the need for additional relays in most small electrical systems.
Versatile Model Selection: Includes models for various pressure ranges from ultra-low (1638-0) to higher low-pressure applications (1638-1/2/5/10).
Rugged Construction: Built to withstand industrial environments in HVAC ducts, process lines, and mechanical systems.

Typical Applications

Fan coil systems, air handlers, fluid level monitoring, HVAC installations, pump control, and process equipment.
