KSINS010C Laser Inertial Navigation System 0.5nmile/h Accuracy

KSINS010C Laser Inertial Navigation System 0.5nmile/h Accuracy

Laser Inertial Navigation System 0.5nmile/h accuracy

KSINS010C Inertial Navigation System with warranty

Accelerometer Sensor high-precision navigation

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KSINS010C

Contact Us
Request A Quote
KSINS010C Laser Inertial Navigation System 0.5nmile/h Accuracy
Product Details
Position Accuracy:
0.5nmile/h
Pitch & Roll Accuracy:
<0.003°
Heading Accuracy:
<0.02°
Speed Accuracy:
<0.5m/s
Initialization Time:
<5min
Highlight:

Laser Inertial Navigation System 0.5nmile/h accuracy

,

KSINS010C Inertial Navigation System with warranty

,

Accelerometer Sensor high-precision navigation

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price KSIMU005M Three Axis Quartz IMU MEMS Accelerometer Sensor online

KSIMU005M Three Axis Quartz IMU MEMS Accelerometer Sensor

Get Best Price
Good price KSINS010C Laser Inertial Navigation System 0.5nmile/h Accuracy online

KSINS010C Laser Inertial Navigation System 0.5nmile/h Accuracy

Get Best Price
Good price Quartz acceleration sensors for microgravity measurement devices with Threshold ≤1 (μg) and Resolution ≤1 (μg) online

Quartz acceleration sensors for microgravity measurement devices with Threshold ≤1 (μg) and Resolution ≤1 (μg)

Get Best Price
Good price Quartz accelerometers for vibration detection with Bias ≤5mg and Bias One-month Composite Repeatability ≤30(μg) online

Quartz accelerometers for vibration detection with Bias ≤5mg and Bias One-month Composite Repeatability ≤30(μg)

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

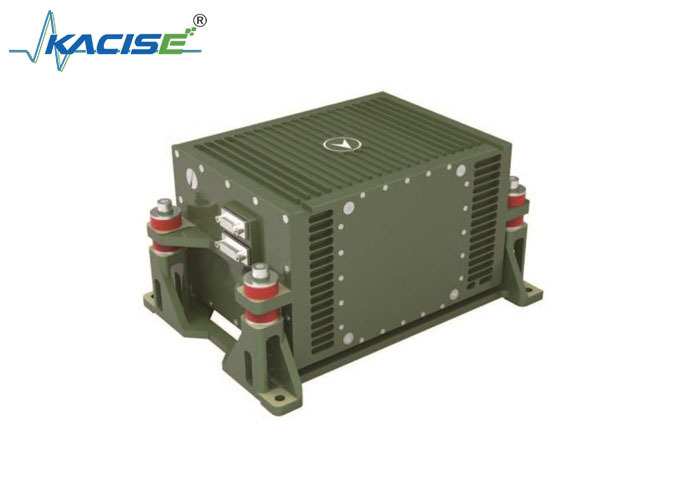

KSINS010C Laser Strapdown Inertial Navigation System
Key Specifications
Position Accuracy 0.5nmile/h
Pitch & Roll Accuracy <0.003°
Heading Accuracy <0.02°
Speed Accuracy <0.5m/s
Initialization Time <5min
Product Overview
The KSINS010C laser strapdown inertial navigation system is a compact, high-precision solution featuring small size, light weight, and exceptional reliability. Designed for autonomous navigation in complex environments, it's suitable for various applications in navigation, integrated navigation, guidance, and control systems. The system can integrate with satellite, radio, barometric altimeter, Doppler, and other data sources to achieve high-precision combined navigation.
Key Features
  • Compact 3.6kg laser strapdown design
  • Utilizes domestic high-precision spatial three-axis laser gyroscope and quartz flexible accelerometer
  • Capable of ground and air alignment on moving platforms
  • Supports self-alignment, on-the-fly alignment, or transfer alignment based on user requirements
  • Compatible with satellite, Doppler, altimeter, radio, star sensor, and other data sources for combined navigation
  • Features expandable interface options
Applications
  • Unmanned Aerial Vehicles (UAVs)
  • Fixed-wing UAVs
  • Rotary-wing UAVs
KSINS010C Laser Inertial Navigation System 0.5nmile/h Accuracy 0
Technical Specifications
Performance Indicators
Position Accuracy 0.5nmile/h
Pitch & Roll Accuracy <0.003°
Heading Accuracy <0.02°
Speed Accuracy <0.5m/s
Initialization Time <5min
Mechanical/Electrical Interface
Steady state power consumption at normal temperature (W) <27
Power supply (V) 18~32
Output RS-422, RS-232, TTL, Ethernet
Size (mm) 185×139.5×110
Weight (Kg) <3.9
