Name: SC4AJ Conductivity Sensor with Cell Constants 0.02 cm-1 and 0.1 cm-1 for Temperature Range 0 to 110℃
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Sensor SC4AJ
Price: 5,000.00 USD
Availability: InStock

Home > Products > Water Quality Sensor >

SC4AJ Conductivity Sensor with Cell Constants 0.02 cm-1 and 0.1 cm-1 for Temperature Range 0 to 110℃

Cell constant 0.02 cm-1 Conductivity Sensor

Cell constant 0.1 cm-1 SC4AJ

Temperature Range 0 to 110℃ Water Quality Sensor

Brand Name:

Yokogawa

Model Number:

Sensor SC4AJ

Request A Quote

SC4AJ Conductivity Sensor with Cell Constants 0.02 cm-1 and 0.1 cm-1 for Temperature Range 0 to 110℃

Product Details

Measuring Principle:

Two-electrode System

Cell Constant:

0.02 Cm-1, 0.1cm-1

Temperature Range:

0 To 110℃ (For Electrode)

Sterilization For Electrode:

135℃ (275℉), Within 30 Minutes In Steam Sterilization

Pressure Range:

0 To 1 MPa (For Electrode)

Highlight:

Cell constant 0.02 cm-1 Conductivity Sensor

Cell constant 0.1 cm-1 SC4AJ

Temperature Range 0 to 110℃ Water Quality Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability

1000 Piece/Pieces per Week negotiable

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Get Best Price

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Get Best Price

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Get Best Price

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Get Best Price

86--17719566736

Contact Now

Product Description

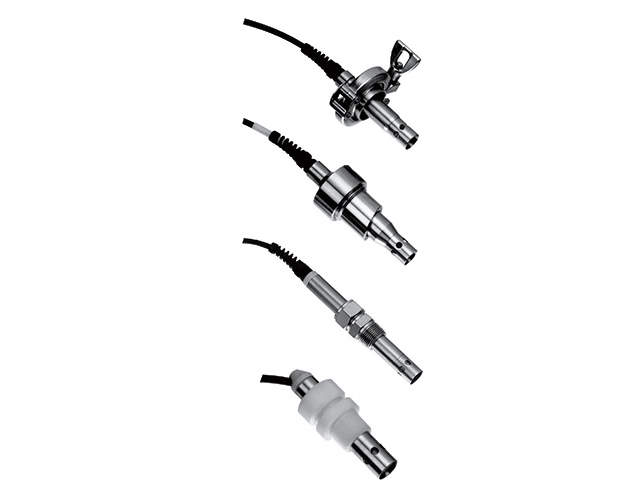

Conductivity Sensor SC4AJ

Yokogawa has been supplying superior on-line analyzers for monitoring or controlling the conductivity of liquid solutions. Our product line includes the FLXA402 four-wire conductivity/resistivity converter, along with the FLXA202 and FLXA21 two-wire conductivity/resistivity transmitters, complemented by a range of precision sensors for accurate liquid conductivity measurement.

The SC4AJ conductivity sensor features a compact, convenient design suitable for diverse applications including boiler water monitoring, hydroponics conductivity measurement, and ultrapure water resistivity measurement in semiconductor, pharmaceutical, food, and power industries.

Specifications

Measurement Object	Conductivity of liquids or solutions
Measuring Principle	Two-electrode system
Cell Constant	0.02 cm^-1, 0.1 cm^-1
Measuring Range	0 - 0.5 to 0 - 200 μS/cm (Cell constant: 0.02 cm^-1, with SC450G, SC202) 0 - 100 μS/cm to 0 - 1 mS/cm (Cell constant: 0.02 cm^-1, with SC100) 0 - 5 μS/cm to 0 - 1 mS/cm (Cell constant: 0.1 cm^-1, with SC450G, SC202) 0 - 500 μS/cm to 0 - 5 mS/cm (Cell constant: 0.1 cm^-1, with SC100; Material: Titanium)
Temperature Range	0 to 110℃ (For electrode)
Sterilization for Electrode	135℃ (275℉), within 30 minutes in Steam Sterilization
Pressure Range	0 to 1 MPa (For electrode)
Sample Solution Condition	Although flow rate is not limited in measurement, air bubbles should not be mixed in the sample solutions to obtain correct measured values.
Temperature Sensor	Pt1000
Weight	Sensors: Adapter mounting type (SC4AJ-S-AD-09-002-05): approx. 450 g Adapter mounting type (SC4AJ-S-AD-15-002-05): approx. 520 g Welding socket type (SC4AJ-S-SA-NN-002-05): approx. 670 g 5" welding clamp type (SC4AJ-S-SB-NN-002-05): approx. 550 g 2" welding clamp type (SC4AJ-S-SC-NN-002-05): approx. 670 g Adapters: 3/4" stainless steel adapter (/PS): approx. 110 g 3/4" PVDF adapter (/PF): approx. 35 g Straight welding socket (/SA1): approx. 300 g Angle welding socket 15 (/SA2): approx. 320 g Welding clamp 1" (/SB1): approx. 330 g Welding clamp 1.5" (/SB2): approx. 305 g Welding clamp 2" (/SC1): approx. 350 g
Process Connection	Adapter mounting, welding socket, welding clamp
