Name: Wall Mounted Residual Chlorine Meter with IP65 and IP68 Protection and 4-20mA Output for Free Chlorine Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSM-150B
Price: 5,000.00 USD
Availability: InStock

Home > Products > Water Quality Sensor >

Wall Mounted Residual Chlorine Meter with IP65 and IP68 Protection and 4-20mA Output for Free Chlorine Measurement

IP65 Protection Residual Chlorine Meter

IP68 Protection Chlorine Sensor

4-20mA Output Water Quality Analyzer

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KSM-150B

Request A Quote

Wall Mounted Residual Chlorine Meter with IP65 and IP68 Protection and 4-20mA Output for Free Chlorine Measurement

Product Details

Measuring Range::

Free Chlorine 0-20.00mg/L

Output Load::

Load <500Ω(4-20mA)

Working Conditions::

Temperature Of 0-60 ℃, Relative Humidity≤90%

Signal Isolation Output::

4～20mA Isolated Protection Output

Alarm Output::

High Or Low Alarm Outputs Correspond To Any Parameters.

Accuracy::

±1%FS

Resolution::

0.01mg/L

Highlight:

IP65 Protection Residual Chlorine Meter

IP68 Protection Chlorine Sensor

4-20mA Output Water Quality Analyzer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability

1000 Piece/Pieces per Week negotiable

Wall Mounted Residual Chlorine Meter with IP65 and IP68 Protection and 4-20mA Output for Free Chlorine Measurement

Get Best Price

WE430 Hydrazine Analyzer with Ion-selective Electrode for Stable Drift-free Measurements and Minimal Maintenance

Get Best Price

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Get Best Price

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Get Best Price

86--17719566736

Contact Now

Product Description

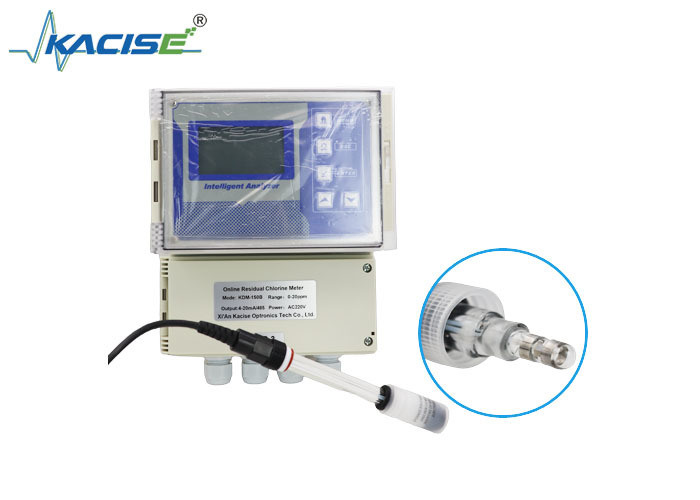

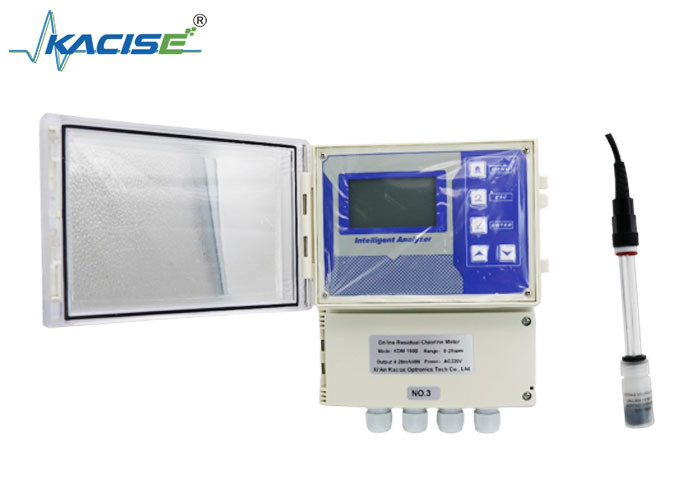

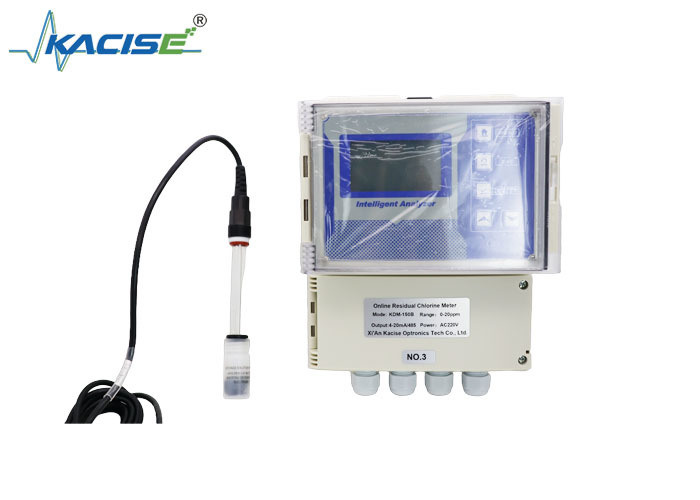

KSM-150B Wall Mounted Residual Chlorine Meter

Product Introduction

This advanced intelligent water quality detector features a non-membrane constant voltage sensor for precise free chlorine measurement in solutions. Designed for continuous monitoring in various water treatment applications, it offers exceptional sensitivity, rapid response, and stable performance without requiring diaphragm or reagent replacement.

Applications

Water treatment plants, canning facilities, drinking water distribution networks, swimming pools, cooling/recirculating water systems, and water treatment projects.

Main Features

Advanced non-membrane constant voltage sensor - no diaphragm or reagent replacement needed
High sensitivity with rapid signal response and accurate measurement
Large dot-matrix LCD display with Chinese/English menu operation
Manual temperature compensation capability
Optional RS-485 communication interface (partially MODBUS compatible)
Factory reset function and watchdog protection against system crashes
Extended power-off protection (>10 years)
Robust protection: IP65 (controller), IP68 (CL electrode)

Technical Specifications

Parameter	Specification
Measuring Range	Free chlorine: 0-20.00mg/L
Resolution	0.01mg/L
Accuracy	±1% FS
Alarm Output	High/low alarm outputs for any parameters
Signal Output	4-20mA isolated protection output
Operating Conditions	0-60°C, ≤90% relative humidity
Output Load	<500Ω (4-20mA)
Power Supply	AC 220V±10%
Dimensions	218 * 183 * 126mm
Installation	Wall-mounted
Weight	1.5kg (without electrodes)

Instrument Installation

Host Installation

Install in a clean, dry, well-ventilated location without vibration or corrosive gases. The wall-mounted installation requires fixing screws to the wall according to the instrument's mounting hole positions.

Electrode Installation

The electrode must be installed in the constant flow device's electrode seat hole, ensuring continuous water flow keeps the electrode immersed. For temporary installations, preserve the protective liquid and rubber sheath.

Installation Method

Remove the electrode and carefully push out the rubber sleeve (avoid twisting to prevent damage)
Preserve the protective liquid and rubber sleeve if temporarily installing
Insert electrode into the constant flow device's hole (near water outlet)
Use thread seal tape for waterproofing before installation
Maintain constant flow rate (15-30 cm³/s recommended)

Note: The protective solution is slightly corrosive. Rinse skin immediately with water if contacted.
