Name: Proline t-mass F 500 thermal mass flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline t-mass F 500
Price: 2,540.00 USD
Availability: InStock

Home > Products > Electromagnetic Flow Meter >

Proline t-mass F 500 thermal mass flowmeter

Proline t-mass F 500 flowmeter

thermal mass flowmeter with warranty

electromagnetic flow meter for liquids

Place of Origin:

Switzerland

Brand Name:

Endress+Hauser

Certification:

Model Number:

Proline t-mass F 500

Request A Quote

Product Details

Outputs:

4 Outputs:

Inputs:

Status Input

Digital Communication:

HART, Modbus RS485

Power Supply:

DC 24V

Product Safety:

CE, C-tick

Highlight:

Proline t-mass F 500 flowmeter

thermal mass flowmeter with warranty

electromagnetic flow meter for liquids

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Proline Promass S 300 Coriolis flowmeter

Get Best Price

Proline Promass P 500 Coriolis flowmeter

Get Best Price

Proline Promass Q 300 Coriolis flowmeter

Get Best Price

Proline t-mass F 500 thermal mass flowmeter

Get Best Price

Contact Now

Product Description

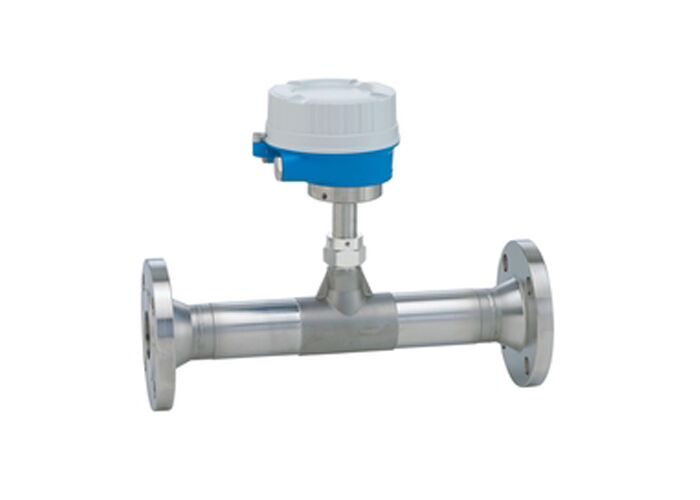

Proline t-mass F 500 Thermal Mass Flowmeter

The Proline t-mass F 500 thermal mass flowmeter features patented sensor design providing unprecedented measurement stability in thermal inline mass flow measurement. It compensates in real time for changes in process conditions including temperature, pressure, flow direction, and gas type.

Key Specifications

Max. Measurement Error: Gas: 1.0% o.r. (10 to 100% o.f.s.), 0.1% o.f.s. (1 to 10% o.f.s.)

Measuring Range: 0.5 to 3750 kg/h (1.1 to 8250 lb/h)

Medium Temperature Range: -40 °C to +180°C (-40 °F to +356 °F)

Max. Process Pressure: PN40 / Cl. 300 / 20K

Field of Application

The innovative remote transmitter maximizes installation flexibility and operational safety in demanding environments. Heartbeat Technology enables measurement reliability and compliant verification.

Key Benefits

Flexible programming based on 21 standard gases or freely definable gas mixtures
Premium measurement accuracy and repeatability for high process control
Reliable monitoring with detection of process disturbances and reverse flow
Easy maintenance with removable sensor
Full access to process and diagnostic information with numerous I/Os and fieldbuses
Reduced complexity with freely configurable I/O functionality
Integrated verification through Heartbeat Technology

Technical Specifications

Wetted Materials

Component	Material Specifications
Measuring Tubes (DN 15-50)	Stainless cast steel, CF3M/1.4408
Measuring Tubes (DN 65-100)	Stainless steel, 1.4404 (316/316L)
Process Connections (Flange)	Stainless steel, 1.4404 (F316/F316L)
Process Connections (Threaded)	Stainless steel, 1.4404 (316/316L)
Sensing Element (Unidirectional)	Stainless steel, 1.4404 (316/316L) or Alloy C22, 2.4602 (UNS N06022)
Sensing Element (Bidirectional)	Stainless steel, 1.4404 (316/316L)
Reverse Flow Detection	Stainless steel, 1.4404 (316/316L)

Measured Variables

Mass flow, temperature, standard volume flow, volume flow, free air delivery, velocity, heat flow, energy flow, density

Environmental Specifications

Parameter	Specification
Ambient Temperature Range	-40 to 60°C (-40 to 140°F)
Optional Temperature Range	Transmitter: -50 to 60°C (-50 to 140°F), Sensor: -60 to 60°C (-60 to 140°F)
Transmitter Housing Material	Aluminium, AlSi10Mg, coated or Polycarbonate
Degree of Protection	IP66/67, Type 4X enclosure; Sensor: IP68, Type 6P (optional)

Electrical & Communication

Component	Specification
Display/Operation	4-line backlit display with touch control, configuration via local display and operating tools
Outputs	4 outputs: 4-20 mA HART, 4-20 mA, Pulse/frequency/switch output, Relay output
Inputs	Status input, 4-20 mA input
Digital Communication	HART, Modbus RS485
Power Supply	DC 24V or AC 100 to 240V

Certifications & Approvals

Hazardous Area: ATEX, cCSAus, IECEx, NEPSI, JPN, UK Ex, EAC, KC
Product Safety: CE, C-tick
Functional Safety: IEC 61508, applicable in safety-relevant applications per IEC 61511
Pressure Approvals: PED, CRN
Material Certificates: 3.1 material, NACE MR0175/MR0103
