Name: KSLV651-A Compact Intelligent Level Sensor with IP68 Protection FEP Probe Material and Long-term Stability ≤0.1% FS/year
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSLV651-A
Price: 5,000.00 USD
Availability: InStock

Home > Products > Water Quality Sensor >

KSLV651-A Compact Intelligent Level Sensor with IP68 Protection FEP Probe Material and Long-term Stability ≤0.1% FS/year

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KSLV651-A

Request A Quote

Product Details

Order Length L:

50-2000mm (with Protective Tube, Max 6000 Mm)

Pressure Range:

-0.1-2.5 MPa

Operating Current:

0-5 V / RS485 / CAN: 5-10 MA

Long-term Stability:

≤0.1% FS / Year

Temperature Drift:

≤0.02% FS/℃ (within -40-80℃)

Probe Material:

FEP

Protection Level:

IP68

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union

Supply Ability

1000 Piece/Pieces per Week negotiable

KWS-101 Digital Turbidity - Compensating COD Sensor

Get Best Price

Video

Stable Water Quality Sensor ORP Digital Sensor Replacement 1mV Resolution with accurate ±6mV

Get Best Price

Video

Highly KDM-110 Online PH Meter with Temperature Compensation 0-99.9C PH and Resolution 0.1C

Get Best Price

Video

Store Up To 50 PH Measurements With KDM-110 On-line PH Meter Temperature Compensation 0-99.9C PH Protection Level IP65

Get Best Price

Contact Now

Product Description

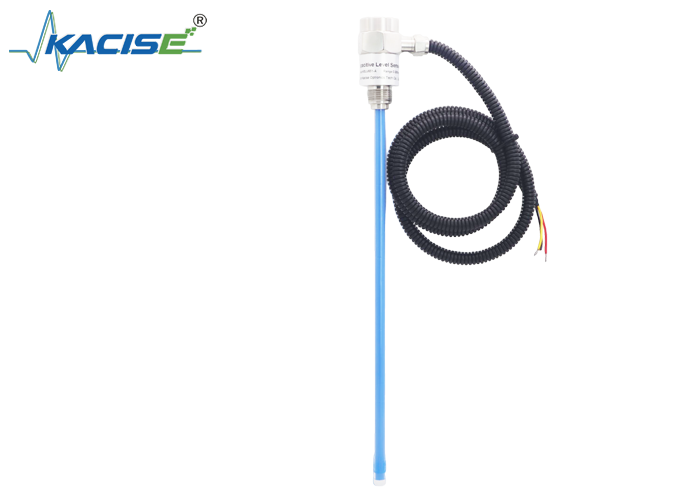

KSLV651-A Compact Level Sensor

Product Overview

The KSLV651-A Series Intelligent Capacitive Level Sensor by KACISE is engineered for demanding level measurement applications in wastewater, oils, chemical media, and environments with significant temperature and pressure variations. Featuring a single-probe capacitive design with no moving parts, this sensor delivers exceptional reliability, impact resistance, easy installation, and outstanding cost performance. It serves as an effective replacement for RF admittance, radar, ultrasonic, and magnetostrictive level instruments.

The core probe utilizes FEP material combined with a high-precision RF capacitive detection circuit. Advanced temperature compensation and linear correction by the internal processor automatically convert medium level changes into standard electrical signals. With automatic calibration and self-adaptive measurement capabilities, the sensor provides long-term stable level data across various media and complex conditions without manual intervention.

Key Features

Self-adaptive and self-calibrating for long-term stable true level value output
Excellent anti-fouling capability with strong resistance to material buildup, condensation, and bubbles
Simple structure with no moving parts ensuring high reliability and minimal maintenance
Multiple signal output options for easy integration with different systems
Unaffected by temperature, density, pressure, or other liquid properties
Maximum operating temperature ≤ 250°C; maximum operating pressure ≤ 4 MPa
Superior sealing performance with optional IP68 protection rating
Comprehensive protection against lightning, overcurrent, overvoltage, and power polarity reversal
Long-term stability: ≤ 0.1% FS per year
Temperature drift: ≤ 0.02% FS/°C (-40°C to +80°C range)
Measurement accuracy: ±3mm absolute error (≤300mm range), Class 1.0 (300-700mm), Class 0.5 (700-2000mm)

Technical Specifications

Parameter	Specification

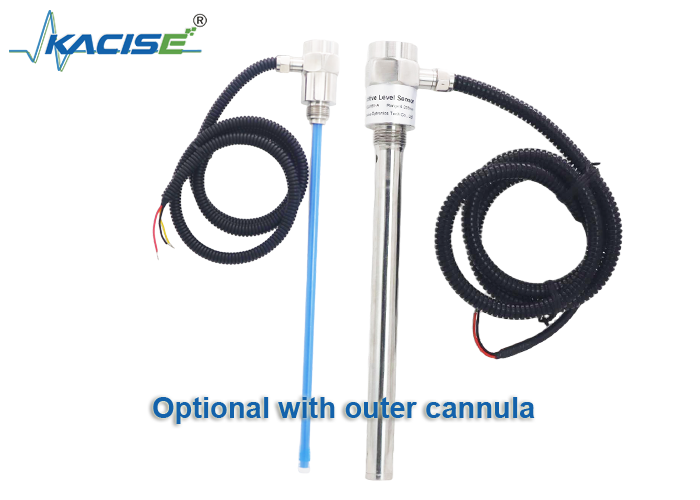

Order Length L	50-2000mm (with protective tube, max 6000 mm)
Accuracy	±3mm absolute error (L ≤ 300mm); Class 1.0 (300 < L ≤ 700mm); Class 0.5 (700 < L ≤ 2000mm)
Medium Temperature	-40 to 85℃
Ambient Temperature	-60 to 150℃

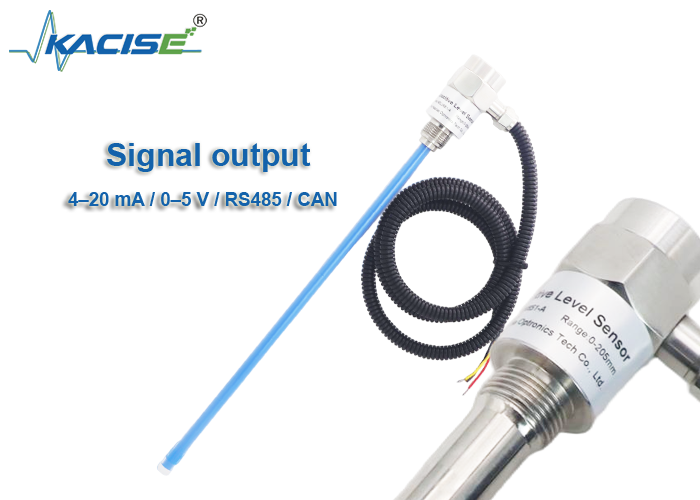

Signal Type	4-20mA / 0-5V / RS485 / CAN
Supply Voltage	4-20mA: 12-28Vdc (typical 24Vdc); 0-5V/RS485/CAN: 4.5-36Vdc; Custom options available
Operating Current	0-5V/RS485/CAN: 5-10mA
Pressure Range	-0.1 to 2.5 MPa
Long-term Stability	≤0.1% FS/year
Temperature Drift	≤0.02% FS/℃ (-40 to 80℃)
Protection Level	IP68

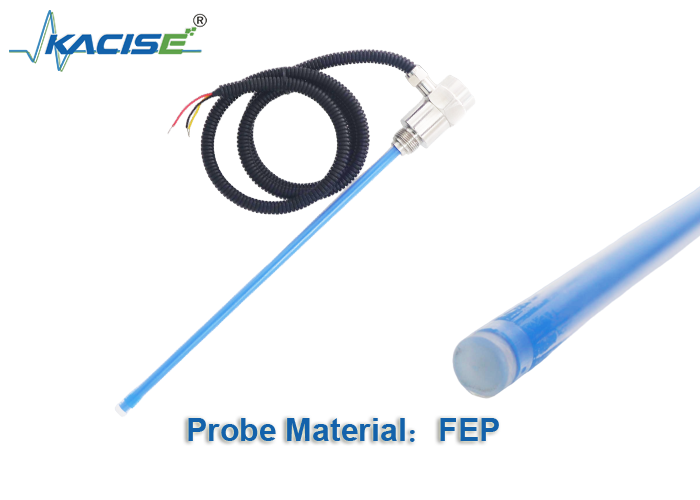

Probe Material	FEP
Probe Diameter	∅10 mm
Mounting Screw Material	SUS 304
Mounting Method	Threaded installation M20×1.5 (with protective tube M27×2)
Dimensional Tolerance	±3 mm

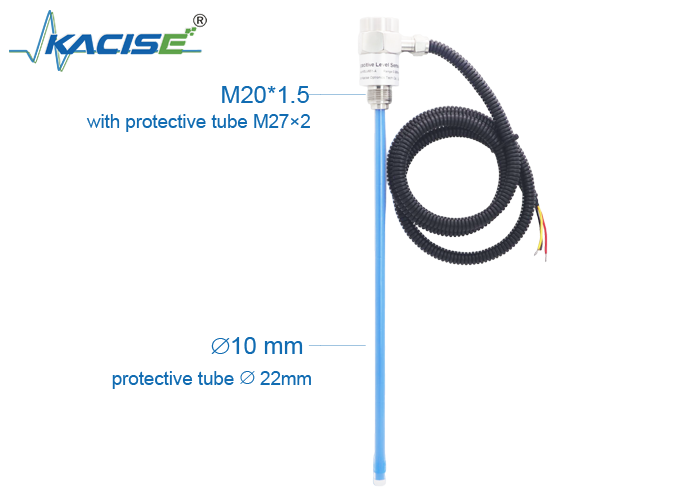

Dimensional Diagram
