| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-3X36 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Zero Bias Stability（1s，10s） °/h: | ≤0.5 | Zero Bias Repeatability（1s，10s） °/h: | ≤0.5 |
|---|---|---|---|
| Zero Bias Stability At Full Temperature（1s，10s） °/h: | ≤1 | ||
| High Light: | Small Lightweight Three Axis Gyro,Aerospace Three Axis Gyro,Three Axis Electronic Gyroscope Sensor |
||

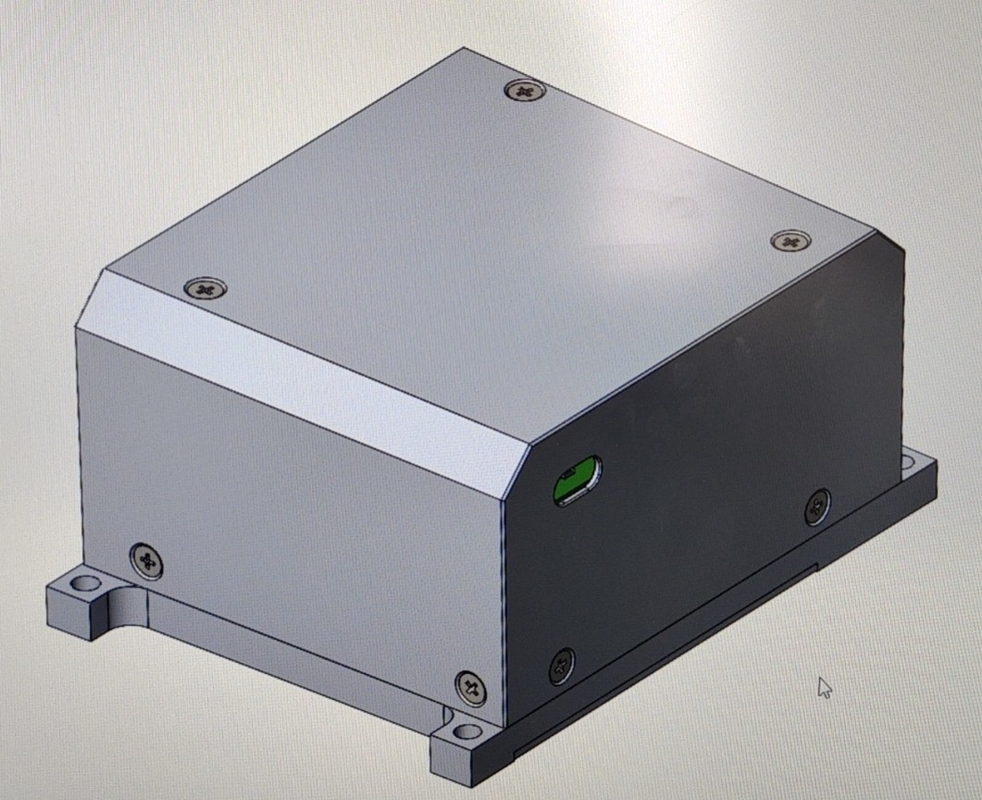

KSFG3X36-1 fiber optic gyro is a low-precision three-axis gyro, as shown in Figure 1, with the advantages of small volume, light weight, no moving parts, high reliability, long life, etc. Its digital output is convenient and integrated with the system, which can be applied to aviation, aerospace, ships, weapons, coal mine measurement, automotive electronics and other fields.
The fiber optic gyroscope principle is an inertial navigation instrument based on optical principles, which uses the characteristics of optical fibers to measure the rotational angular speed, so as to achieve accurate measurements of directions such as heading, pitch and roll.When a beam of light travels in a circular channel, if the circular channel itself has a rotational speed, it takes more time for the light to travel in the direction the channel is rotating than it takes to travel in the opposite direction along the channel. That is to say, when the optical loop rotates, in different directions, the optical path of the optical loop will change relative to the optical path of the loop at rest. Using the change of optical path to detect the phase difference or the change of interference fringe of the two optical paths, you can measure the rotation angular speed of the optical path, which is the working principle of the fiber optic gyroscope.

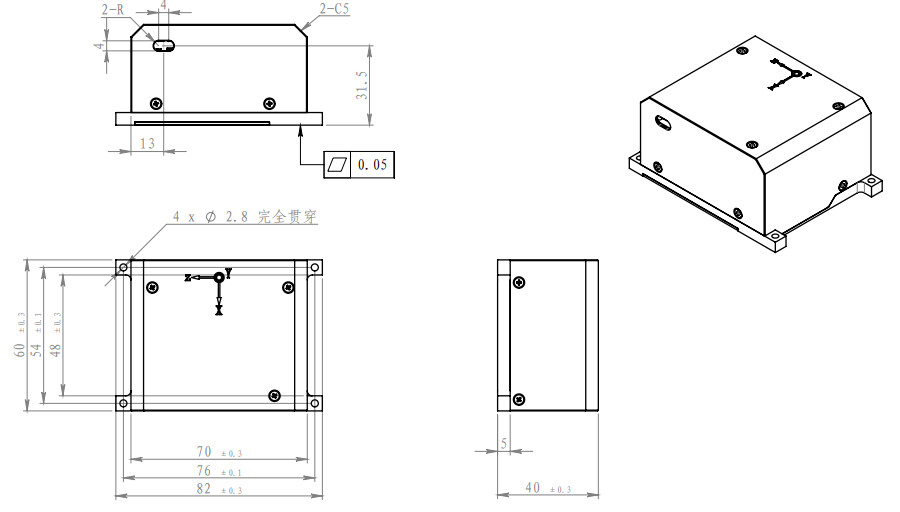

Installation mode Size:60X70X40
The performance indicators achieved by the KS3X36-1 FOG after adding power for 5s are shown in Table 1 below.
| Number | Parameter | Units | I | II |
| 1 | Zero bias stability(1s,10s) | °/h | ≤0.5 | ≤1 |
| 2 | Zero bias repeatability(1s,10s) | °/h | ≤0.5 | ≤1 |
| 3 | Zero bias stability at full temperature(1s,10s) | °/h | ≤1 | ≤2 |
| 4 | Random walk coefficients | °/h1/2 | ≤0.01 | ≤0.1 |
| 5 | Scale factor nonlinearity | ppm | ≤50 | ≤100 |
| 6 | Scale factor asymmetry | ppm | ≤50 | ≤100 |
| 7 | Repeatability of the scale factor | ppm | ≤50 | ≤100 |
| 8 | Full temperature scale factor change | ppm | ≤250 | ≤500 |
| 9 | Range of measurement | °/s | -500~+500 | -500~+500 |
| 10 | bandwidth | Hz | ³500 | ³500 |
| 11 | Steady-state power consumption | W | ≤5.0 | ≤5.0 |
| 12 | Resistance of insulation | MΩ | ＞100 | ＞100 |
| 13 | Operating temperature | ℃ | -40~+60 | -40~+60 |
| 14 | Temperature of storage | ℃ | -50~+75 | -50~+75 |
| 15 | weight | g | ≤300 | ≤300 |
| 16 | Dimensions | mm | 60*70*40 | 60*70*40 |
