| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Model Number: | KSTG-40 |
| Dimensions: | 71.5×68×45 (mm) | Start Time: | 3(s) |
|---|---|---|---|
| Bias Drift(10s Smooth, Fix Temperature): | ≤0.1 (°) / H | Bias Drift(10s Smooth) -45~ + 70℃: | ≤0.5 (°) / H |
| Bias Repeatability: | ≤0.1 (°) / H | Random Walk Coefficient: | ≤0.01 (°)/h1/2 |
| Scale Factor Non-linearity: | ≤20 (ppm) | Scale Factor Repeatability: | ≤10 (ppm) |
| Operate Temperature: | -45～+70 (℃) | Storage Temperature: | -50～+80 (℃) |
| Dynamic Range: | ±500 (°) / S | Supply Voltage: | +5 (V) |
| Steady-state Power Consumption (full Temperature): | <4 (W) | Weight: | ＜320 (g) |
| Interface: | RS422 |

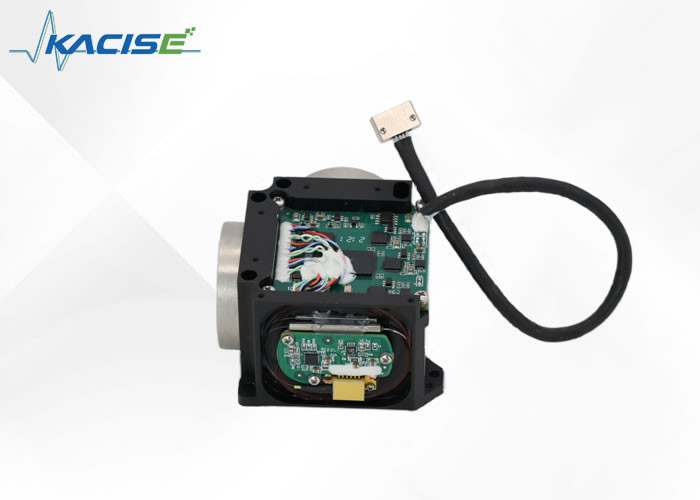

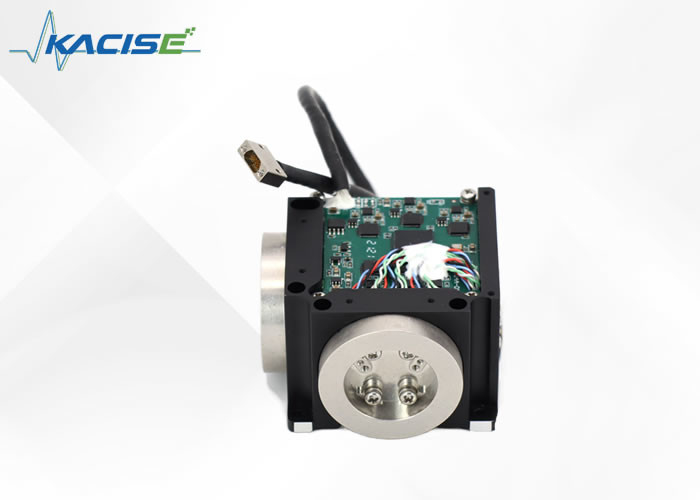

This product is an inertial angle rate sensor based on the optical Sagnac effect for measuring the rotational angular velocity of the carrier along the sensitive axis. The digital closed-loop detection circuit is used to extract the optical path difference of the clockwise light caused by the external physical angular speed, and the voltage signal of the optical path signal is modulated and demodulation, and the closed loop feedback and control are realized to achieve the purpose of real-time angular velocity signal detection.
Function: This product consists of two parts: optical angular velocity sensitive unit and signal detection, providing uniaxial angle increment information and internal temperature information.
Application scope: The products are mainly suitable for photoelectric crane / crane / flying platform / inertial navigation / inertial measurement system / optical / photographic instrument / platform stabilization device / inertial measurement instrument and other applications.
Three-axis gyroscope
Small size and light weight
High Reliability
RS422 Digital output
Wide range of available areas
| Sn# | Test item | H |
| 1 | Dimensions (mm) | 71.5×68×45 |
| 2 | start time (s) | 3 |
| 3 | Bias drift (°) / h (10s smooth, fix temperature) | ≤0.1 |
| 4 | Bias drift (°) / h (10s smooth) -45~ + 70℃ | ≤0.5 |
| 5 | Bias repeatability (°) / h | ≤0.1 |
| 6 | Random walk coefficient(º)/h1/2 | ≤0.01 |
| 7 | Scale factor non-linearity (ppm) | ≤20 |
| 8 | Scale factor repeatability (ppm) | ≤10 |
| 9 | Operate temperature ℃ | -45～+70 |
| 10 | Storage temperature of (℃) | -50～+80 |
| 11 | Dynamic range (°) / s | ±500 |
| 12 | Supply voltage (V) | +5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 |
| 14 | weight (g) | ＜320 |
The Kacise KSFG-3x36 Electronic Gyroscope Sensor is a robust and reliable inertial navigation sensor designed for accurate positioning and orientation. This sensor has a high resistance of insulation of more than 100 MΩ, and its dimensions measure 60*70*40 mm. With a range of measurement from -500 to +500°/s, this gyro north finder sensor also offers excellent zero bias stability and repeatability of ≤0.5°/h and ≤1°/h respectively. It is perfect for a wide range of applications, including navigation, guidance and control systems, unmanned aerial vehicles, and many others.
The Kacise KSFG-3x36 sensor is designed to provide precise and accurate positioning and orientation information. It utilizes advanced gyro north finder technology to accurately determine the orientation of the system in which it is installed. This ensures that the system is able to accurately locate and navigate its way through its environment. It is also perfect for applications that require high precision and reliability, such as unmanned aerial vehicles and navigation systems.
The Kacise KSFG-3x36 Electronic Gyroscope Sensor is also highly reliable and durable. It is designed to withstand harsh conditions and environments, and its resistance of insulation is greater than 100 MΩ. Additionally, its zero bias stability and repeatability are excellent, ensuring that it is able to accurately measure and determine orientation in any environment. This makes it perfect for applications that require reliable and precise measurements, including navigation, guidance, and control systems.
We provide technical support and service for our Electronic Gyroscope Sensor. Our technical support staff is available to answer any questions you may have about the operation, installation, maintenance, or troubleshooting of the sensor. Our technical support staff will provide you with prompt and accurate assistance to ensure that your experience with the sensor is successful.
We also offer a variety of services to ensure that your Electronic Gyroscope Sensor is kept in top condition. Our services include installation and replacement of components, calibration services, and software updates. We understand the importance of having a reliable and accurate gyroscope sensor, and our services are designed to ensure that your sensor is functioning properly.
If you have any questions about our technical support and service for the Electronic Gyroscope Sensor, please do not hesitate to contact us. We look forward to helping you get the most out of your sensor.
The electronic gyroscope sensor is securely packaged in a double-walled corrugated box to ensure the product is not damaged during shipment. The box also contains bubble wrap to further protect the product. The gyroscope sensor is shipped via a reliable and safe courier service, with tracking information provided.
