| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-98 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Storage Temperature Of: | -45～+80℃ | Weight (g): | <550 |
|---|---|---|---|
| Scale Factor Repeatability: | ≤10ppm | Dimensions: | 98×98×35mm |
| Random Walk Coefficient: | ≤0.005(º)/h^1/2 | Start Time: | ≤5s |
| Operate Temperature: | -40～+70℃ | Scale Factor Non-linearity: | ≤10ppm |
| High Light: | Precision Electronic Gyroscope Sensor,Navigation Fiber Optic Gyroscope Sensor |
||

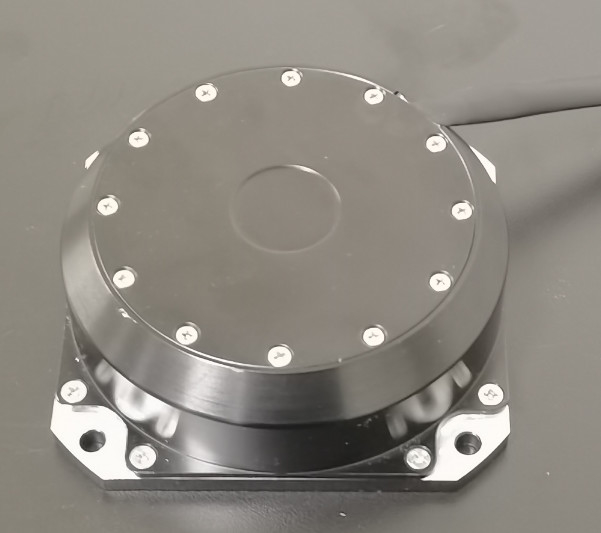

This device functions as an inertial angle rate sensor utilizing the optical Sagnac effect to measure the rotational angular velocity along the sensitive axis of the carrier. Employing a digital closed-loop detection circuit, it extracts the optical path difference of clockwise light induced by external physical angular speed. The voltage signal from the optical path undergoes modulation and demodulation, enabling closed-loop feedback and control for real-time angular velocity signal detection.
Purpose and Composition: Comprising an optical angular velocity sensitive unit and a signal detection component, the product furnishes uniaxial angle increment data and internal temperature information.
Application Range: Primarily designed for applications such as photoelectric cranes, conventional cranes, flying platforms, inertial navigation systems, inertial measurement systems, optical instruments, photographic devices, platform stabilization equipment, and inertial measurement instruments.
| Sn# | Test item | H | L | Remark |

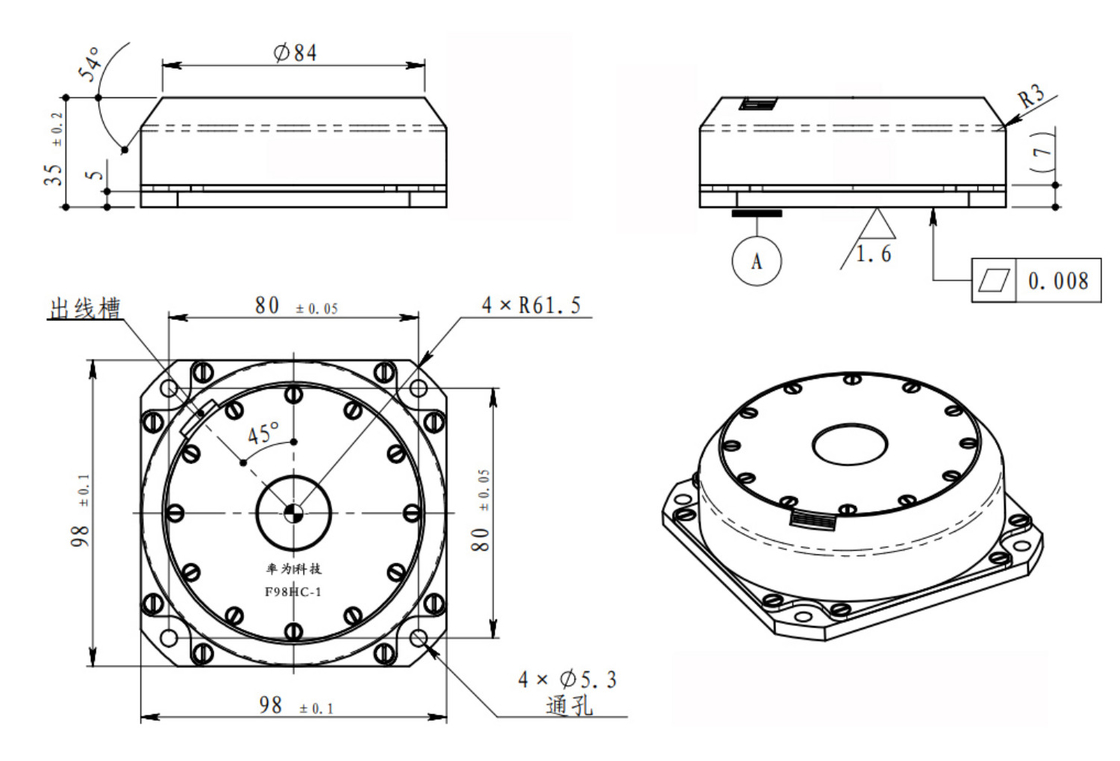

| 1 | Dimensions (mm) | 98×98×35 | 98×98×35 | |
| 2 | start time (s) | ≤5 | ≤5 | |
| 3 | Bias drift (°) / h (10s smooth, fix temperature) | ≤0.015 | ≤0.03 | |
| 4 | Bias drift (°) / h (10s smooth) -45~ + 70 | ≤0.03 | ≤0.06 | |
| 5 | Bias repeatability (°) / h | ≤0.005 | ≤0.01 | |
| 6 | Random walk coefficient(º)/h1/2 | ≤0.001 | ≤0.002 | |
| 7 | Scale factor non-linearity (ppm) | ≤10 | ≤20 | |
| 8 | Scale factor repeatability (ppm) | ≤10 | ≤20 | |
| 9 | Operate temperature ℃ | -40～+70 | -40～+70 | |
| 10 | Storage temperature of (℃) | -45～+80 | -45～+80 | |
| 11 | Dynamic range (°) / s | ±300 | ±300 | |
| 12 | Supply voltage (V) | ±5 | ±5 | |
| 13 | Steady-state power consumption (full temperature) (W) | <3 | <3 | |
| 14 | weight (g) | ＜550 | ＜550 |
We are committed to providing users with high-quality technical support and services for our Electronic Gyroscope Sensor. Our technical support and services include:
If you have any questions or need assistance with our Electronic Gyroscope Sensor, please don't hesitate to contact us at any time.
