| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-120 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Random Walk Coefficient: | ≤0.0003(º/h^1/2) | Scale Factor Repeatability: | ≤5(ppm) |
|---|---|---|---|
| Steady-state Power Consumption (full Temperature): | <6(W) | Dynamic Range: | ±300(°/s) |
| Bias Drift(10s Smooth, Fix Temperature): | ≤0.001(°/h) | Dimensions: | 120×120×38(mm) |
| Scale Factor Non-linearity: | ≤5(ppm) | Bias Drift(10s Smooth) -45~ + 70℃: | ≤0.003(°/h) |

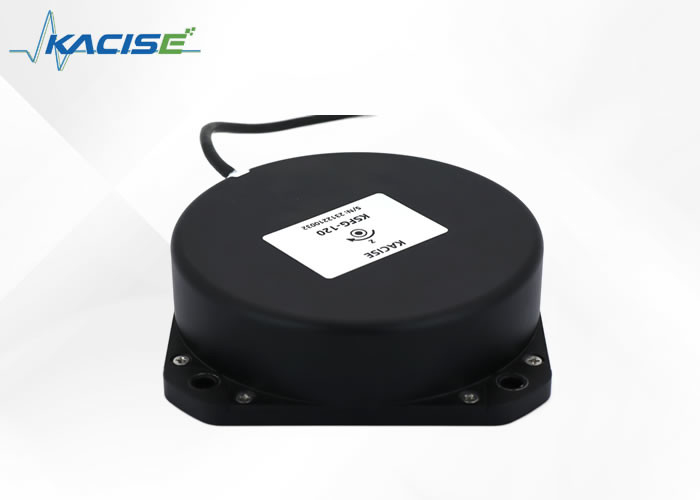

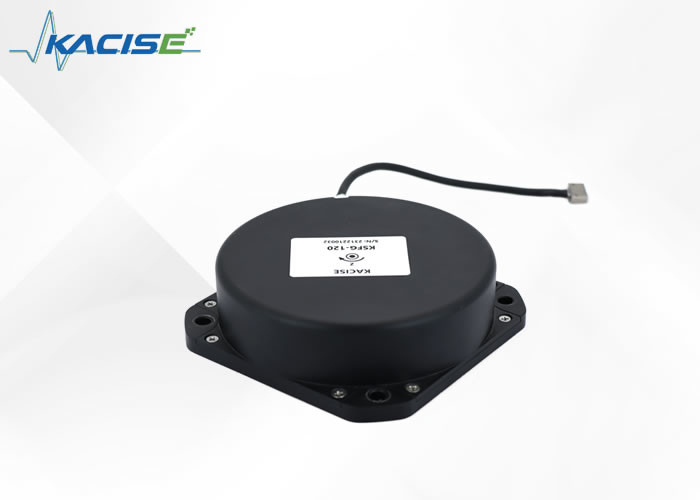

This product, functioning as an inertial angle rate sensor, is based on the optical Sagnac effect for measuring the rotational angular velocity along the carrier's sensitive axis. A digital closed-loop detection circuit is utilized to extract the optical path difference of clockwise light induced by external physical angular speed. Modulation and demodulation of the optical path signal's voltage enable closed-loop feedback and control, achieving real-time detection of angular velocity signals.
Structure and Purpose: Comprising an optical angular velocity sensitive unit and a signal detection module, the product supplies information on uniaxial angle increments and internal temperature.
Areas of Use: Designed for applications including photoelectric cranes, conventional cranes, flying platforms, inertial navigation, inertial measurement systems, optical instruments, photographic devices, platform stabilization equipment, inertial measurement instruments, and other relevant fields.
| Sn# | Test item | H | L |
| 1 | Dimensions (mm) | 120×120×38 | 120×120×38 |
| 2 | Start time (s) | 5 | 5 |
| 3 | Bias drift (°/h) (10s smooth, fix temperature) | ≤0.001 | ≤0.003 |
| 4 | Bias drift (°/h) (10s smooth -45~+70℃) | ≤0.003 | ≤0.006 |
| 5 | Bias repeatability (°/h) | ≤0.001 | ≤0.003 |
| 6 | Random walk coefficient(°/h1/2) | ≤0.0003 | ≤0.0008 |
| 7 | Scale factor non-linearity (ppm) | ≤5 | ≤10 |
| 8 | Scale factor repeatability (ppm) | ≤5 | ≤10 |
| 9 | Operate temperature (℃) | -45～+70 | -45～+70 |
| 10 | Storage temperature (℃) | -50～+80 | -50～+80 |
| 11 | Dynamic range (°/s) | ±300 | ±300 |
| 12 | Supply voltage (V) | ±5 | ±5 |
| 13 | Steady-state power consumption (full temperature) (W) | <6 | <6 |
| 14 | Weight (g) | ＜1000 | ＜1000 |
We provide technical support and service for Electronic Gyroscope Sensor. Our technical support team is available to answer any questions you may have while using the product. Our technical support team is knowledgeable and experienced in using the product and can provide you with useful advice and insight.
We also provide a variety of services for Electronic Gyroscope Sensor, such as installation, maintenance, troubleshooting, and repair. We understand that it can be difficult to set up or maintain the product, and we are here to help. We aim to provide our customers with the best service possible, and our goal is to ensure that the product is running smoothly.
If you have any questions or need help with using Electronic Gyroscope Sensor, please feel free to contact us. We are always available to answer any questions you may have and provide assistance.
