| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-60 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Random Walk Coefficient: | ≤0.01(º/h1/2) | Bias Drift (10s Smooth, Fix Temperature): | ≤0.1(°/h) |
|---|---|---|---|
| Bias Repeatability: | ≤0.05 (°/h) | Start Time: | 5(s) |
| Scale Factor Non-linearity: | ≤10 (ppm) | Supply Voltage: | +5(V) |
| Scale Factor Repeatability: | ≤10 (ppm) | Steady-state Power Consumption (full Temperature): | <4(W) |
| Weight: | <180(g) | Dimensions: | 60×60×32(mm) |
| High Light: | fiber optic gyroscopes for positioning,navigation fiber optic gyroscopes,Small fiber optic gyroscopes |
||

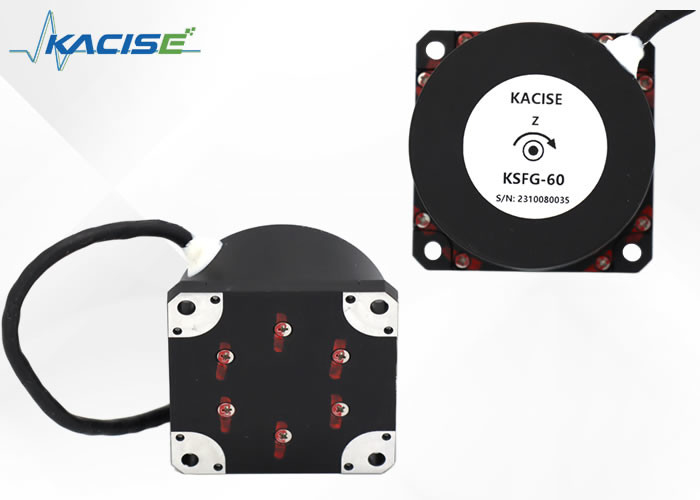

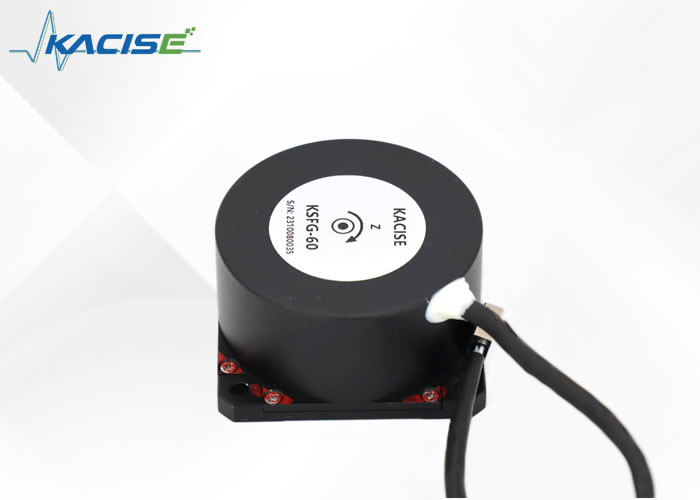

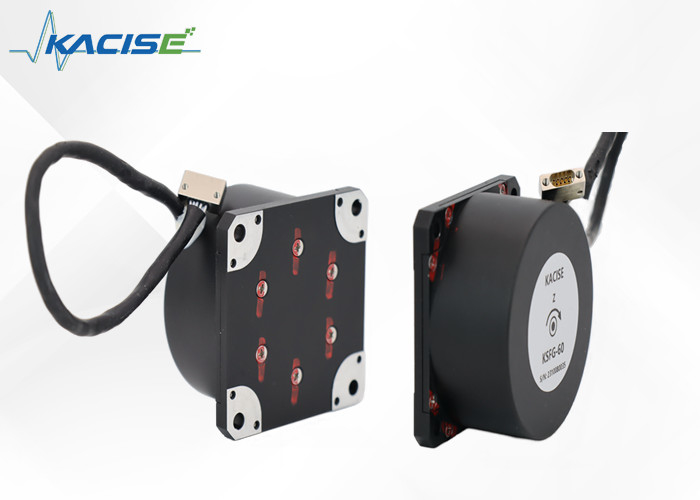

The product presented herein operates as an inertial angle rate sensor, leveraging the principles of the optical Sagnac effect. Its primary function is to determine the rotational angular velocity experienced by a carrier along its sensitive axis. This is achieved through a precision-engineered mechanism that is highly responsive to the rotations of its hosting entity.
At the heart of this device lies a digital closed-loop detection circuit. The circuit's sophisticated design facilitates the extraction of the optical path difference. This difference arises due to the rotation-induced alteration in the path of clockwise-traveling light. The next step in the sensor's operation involves the modulation and demodulation of the voltage signal resultant from the optical path. Such processes are meticulously carried out to ensure the fidelity of the signal interpretation.
The product combines two major components for its operation: the optical angular velocity sensitive unit, and the signal detection mechanism. This integration allows for the provision of critical data, such as uniaxial angle increment information that can be essential in navigational and orientation-focused applications. Furthermore, the device comes equipped with a feature to monitor internal temperature, ensuring stability and reliability of the information it provides under varying operational conditions.
In conclusion, the instrument is not just a sensor, but a comprehensive solution that ensures real-time detection and feedback of angular velocity signals, a testament to its well-designed feedback and control loop.
| Sn# | Test item | H |
| 1 | Dimensions (mm) | 60×60×32 |
| 2 | Start time (s) | 3 |
| 3 | Bias drift (°/h) (10s smooth, fix temperature) | ≤0.1 |
| 4 | Bias drift (°/h) (10s smooth -45~+70℃) | ≤0.5 |
| 5 | Bias repeatability (°/h) | ≤0.1 |
| 6 | Random walk coefficient(°/h1/2) | ≤0.01 |
| 7 | Scale factor non-linearity (ppm) | ≤10 |
| 8 | Scale factor repeatability (ppm) | ≤10 |
| 9 | Operate temperature (℃) | -45～+70 |
| 10 | Storage temperature (℃) | -50～+80 |
| 11 | Dynamic range (°/s) | ±500 |
| 12 | Supply voltage (V) | +5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 |
| 14 | Weight (g) | ＜180 |
Dimensions
This range of products is designed with versatility in mind, catering to a variety of specialized fields. Among its many applications, it is particularly suited for:
Each product has been designed to integrate seamlessly into these applications, ensuring high performance and reliability.
The Electronic Gyroscope Sensor is a state-of-the-art device designed to provide precise angular rate measurement and stability control across various applications. To ensure optimal performance and reliability, our technical support and services are available to assist with any questions or issues that may arise during the use of this product.
Our Product Technical Support includes:
- Comprehensive troubleshooting to diagnose and resolve any technical issues.
- Guidance on proper installation, configuration, and calibration to ensure the sensor operates at its best.
- Firmware updates to enhance the sensor's functionality and extend its service life.
Additional Services:
- Technical documentation and resources providing detailed information about the sensor's specifications, usage, and maintenance.
- Educational materials and webinars to assist users in understanding the principles of gyroscopic technology and its applications.
- A dedicated online support forum where users can share experiences, solutions, and best practices.
Please note that our Technical Support team is committed to providing you with the assistance you need to maximize the performance of your Electronic Gyroscope Sensor. For further support, please refer to the accompanying user manual or visit our website's support section.
Our Electronic Gyroscope Sensor is meticulously packaged to ensure maximum protection during transport. The sensor is encased in anti-static material, which prevents any electrostatic discharge damage. Surrounding the sensor, high-density foam is used to cushion against any impacts that may occur during shipping. The product is then placed into a sturdy, corrugated cardboard box that is specifically designed to hold the sensor snugly in place.
For shipping, the box is sealed with heavy-duty packing tape and labeled with 'Fragile - Handle with Care' to alert carriers of the delicate contents. We use reliable shipping services that provide tracking information so you can monitor your package's journey to your destination. Upon dispatch, an email with the tracking number will be sent to you, allowing for easy monitoring of your shipment's status.
Please inspect the package upon arrival for any signs of damage. If any damage is suspected, contact our customer support immediately for assistance. Our goal is to ensure that your Electronic Gyroscope Sensor arrives in perfect working condition.
