| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-50 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Weight: | ＜130 (g) | Scale Factor Repeatability: | ≤10 (ppm) |
|---|---|---|---|
| Start Time: | 5 (s) | Random Walk Coefficient: | ≤0.01(º/h^1/2) |
| Storage Temperature: | -50～+80 (℃) | Steady-state Power Consumption (full Temperature): | <4(W) |
| Dimensions: | 50×50×36 (mm) | Scale Factor Non-linearity: | ≤10 (ppm) |
| High Light: | 10ppm Fiber Optic Gyro,Navigation Fiber Optic Gyro,High Precision Fiber Optic Gyro |
||

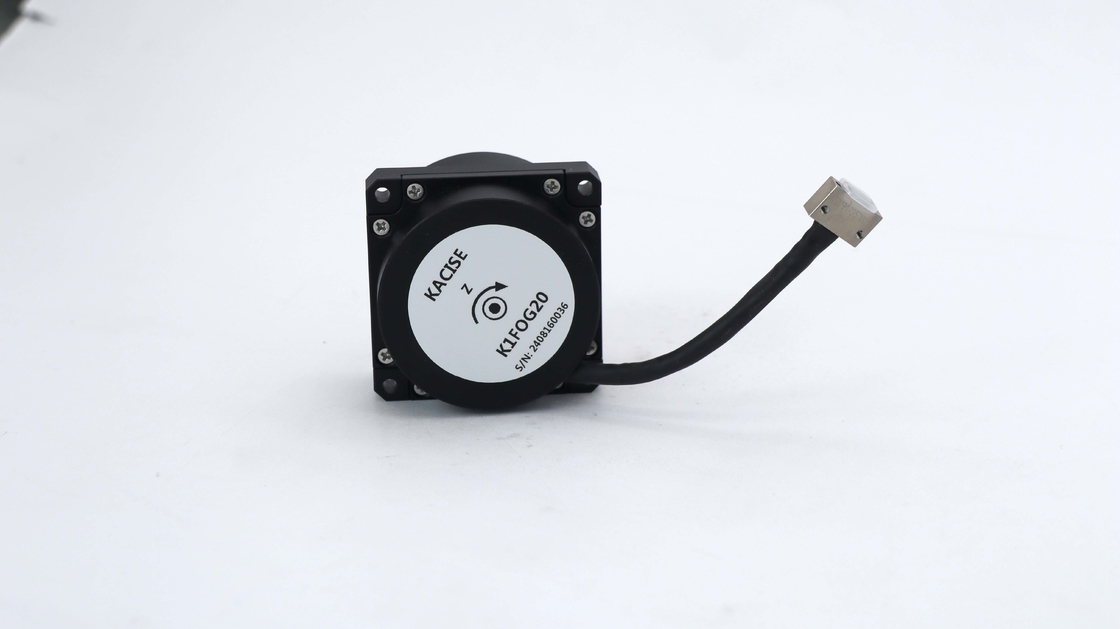

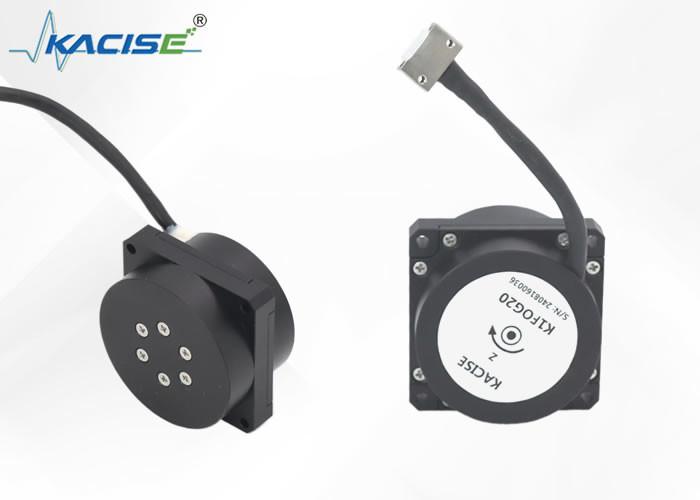

The product introduced here is designed as an inertial angle rate sensor that capitalizes on the optical Sagnac effect. Its fundamental role is to gauge the rotational angular velocity of a carrier, focused specifically along its sensitive axis. The sensor is a sophisticated piece of technology used in various applications where monitoring the rotation speed is critical.
At the core of the sensor's functionality is a digital closed-loop detection circuit. This advanced circuitry is adept at isolating the optical path difference prompted by the angular velocity in the external environment. More specifically, it distinguishes the path variation in the clockwise light. Following the initial capture of this optical discrepancy, the sensor engages in modulation and demodulation of the voltage signal correspondent to the optical path.
Additionally, a closed-loop feedback and control system is implemented. This element is crucial as it permits the realization of real-time detection of the angular velocity signal. Such a feature ensures that the product delivers precise monitoring and immediate responsiveness to any alterations in rotational speed.
Delving into the makeup of this product, it is composed of two primary components. The first is an optical angular velocity sensitive unit, which is responsible for detecting changes in the angle increment. The second main part of the system is the signal detection mechanism, which conducts rigorous monitoring and processing to achieve accurate readings.
Importantly, the product also extends its functionality by providing granular data, including uniaxial angle increment details and intricate internal temperature information. These additional data points aid users in gaining a comprehensive understanding of their system's dynamic performance and thermal state, enhancing operational safety and efficiency.
| Sn# | Test item | H | L |
| 1 | Dimensions (mm) | 50×50×36 | 50×50×36 |
| 2 | Start time (s) | 5 | 5 |
| 3 | Bias drift (°/h) (10s smooth, fix temperature) | ≤0.1 | ≤0.3 |
| 4 | Bias drift (°/h) (10s smooth -45~+70℃) | ≤0.3 | ≤0.5 |
| 5 | Bias repeatability (°/h) | ≤0.05 | ≤0.1 |
| 6 | Random walk coefficient(°/h1/2) | ≤0.01 | ≤0.02 |
| 7 | Scale factor non-linearity (ppm) | ≤10 | ≤20 |
| 8 | Scale factor repeatability (ppm) | ≤10 | ≤20 |
| 9 | Operate temperature (℃) | -45～+70 | -45～+70 |
| 10 | Storage temperature (℃) | -50～+80 | -50～+80 |
| 11 | Dynamic range (°/s) | ±900 | ±900 |
| 12 | Supply voltage (V) | +5 | +5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 | <4 |
| 14 | Weight (g) | ＜130 | ＜130 |
Dimensions
Our products are adeptly designed for a diverse range of applications. They are primarily employed in the operation of photoelectric cranes, enhancing their functionality and performance.
In addition to crane applications, they are extensively used in the management of cranes and flying platforms. Their integration facilitates precise control and maneuverability of these aerial systems.
With a focus on navigation and positioning, our products are indispensable in inertial navigation systems and inertial measurement systems, where they provide reliable and accurate data.
The realm of optics is not left untouched, as they serve pivotal roles in various optical and photographic instruments. Their application ensures enhanced stability and clarity.
For devices that demand high precision, such as platform stabilization devices and inertial measurement instruments, our products deliver exceptional performance, ensuring accurate measurements and stabilization.
Thank you for choosing our Electronic Gyroscope Sensor. To ensure you get the most out of your product, we offer a comprehensive suite of technical support and services designed to give you peace of mind and keep your sensor functioning optimally. Our support includes access to an extensive online knowledge base, firmware updates, troubleshooting guides, and best practices for integration and maintenance.
If you encounter any issues with your Electronic Gyroscope Sensor, our dedicated technical support team is ready to assist you with diagnosis and resolution. We provide step-by-step guidance to troubleshoot problems and, if necessary, instructions on how to access our repair or replacement services. Our goal is to minimize downtime and ensure that your sensor delivers consistent, accurate performance.
To enhance your experience, we also offer customized support packages tailored to meet your specific needs, including extended warranties, expedited repair services, and on-site technical assistance. Our team is committed to providing you with the expertise and support necessary to leverage the full potential of your Electronic Gyroscope Sensor.
Please refer to the product documentation and online resources for initial guidance. For further assistance, our customer support portal is available 24/7, where you can submit inquiries, track the status of your support tickets, and access a wealth of information to help you make the most of your sensor.
Rest assured, our commitment to quality and customer satisfaction is at the heart of our support services. We are here to ensure that your experience with our Electronic Gyroscope Sensor is nothing short of excellent.
Product Packaging:
Our Electronic Gyroscope Sensor is securely encased in high-quality, anti-static packaging to ensure its delicate components are well protected against static discharge during handling. The interior of the package is fitted with custom foam padding that snugly holds the sensor in place, providing excellent cushioning against impacts and vibrations. Each sensor is individually packed in a durable, sealed box that is clearly labeled with the product information, handling instructions, and a barcode for easy inventory management.
Shipping:
We take great care in shipping our Electronic Gyroscope Sensors. Orders are dispatched within 24 hours of payment confirmation. All packages are sent out via a reliable courier service with tracking capabilities, ensuring that your product arrives safely and on time. We offer standard and expedited shipping options to meet your needs. Upon shipment, customers will receive a confirmation email with a tracking number to monitor the delivery progress. Our packaging and shipping are designed to provide the utmost protection and efficiency for our high-quality sensors.
