| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-50 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Random Walk Coefficient: | ≤0.01(º/h^1/2) | Bias Repeatability: | ≤0.05 (°/h) |
|---|---|---|---|
| Operate Temperature: | -45～+70 (℃) | Scale Factor Repeatability: | ≤10 (ppm) |
| Scale Factor Non-linearity: | ≤10 (ppm) | Start Time: | 5 (s) |
| Weight: | ＜130 (g) | Storage Temperature: | -50～+80(℃) |
| High Light: | Factor Repeatability 10ppm Gyro Scale,Small Size Fog Gyro |
||

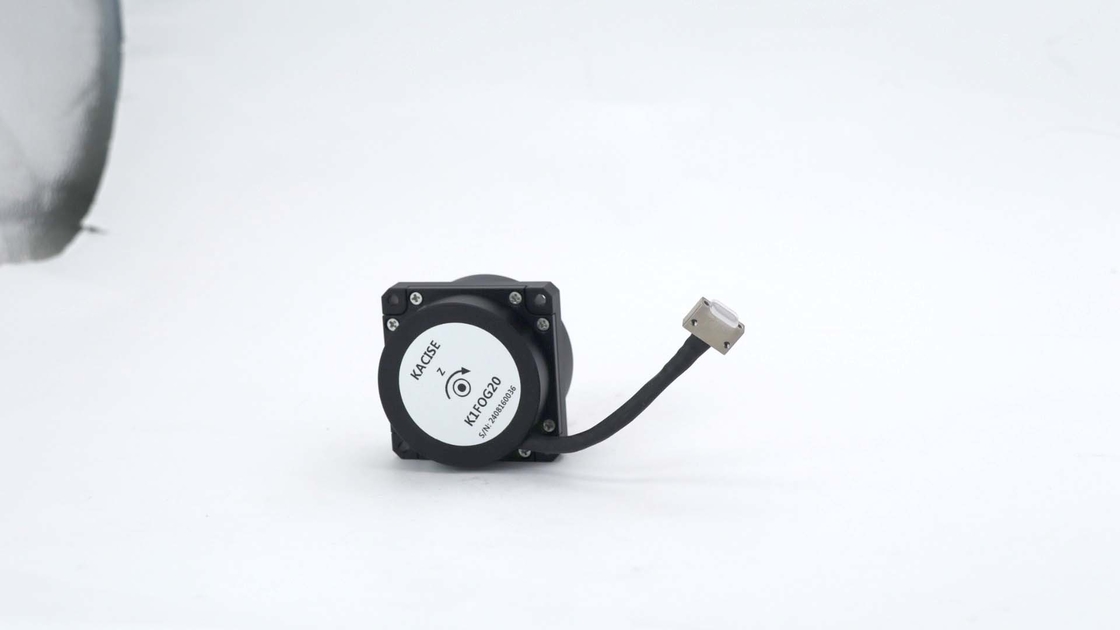

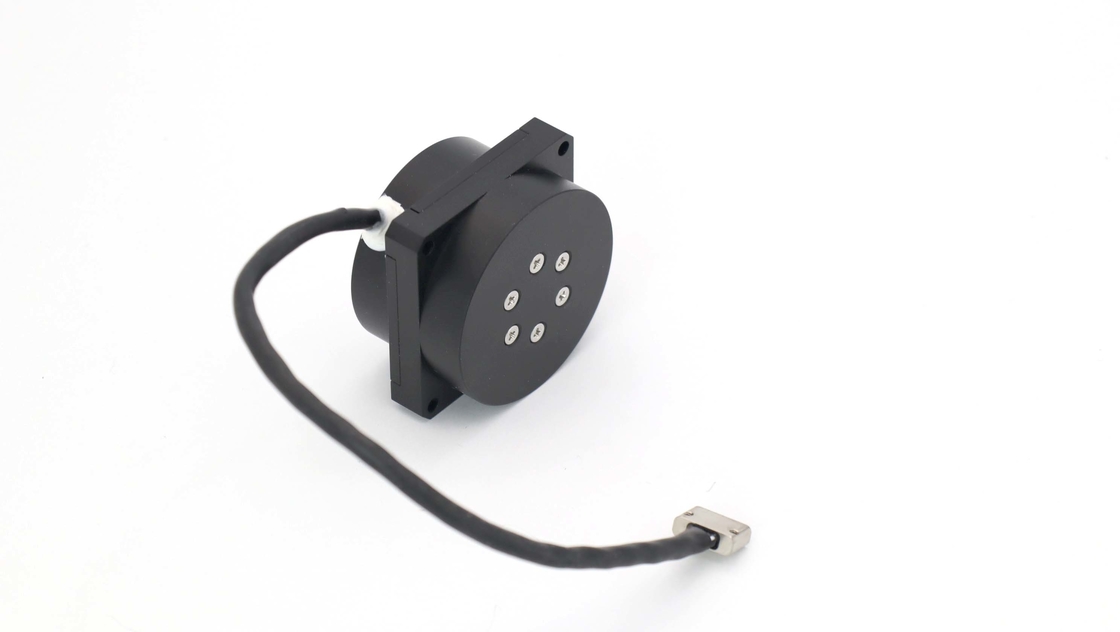

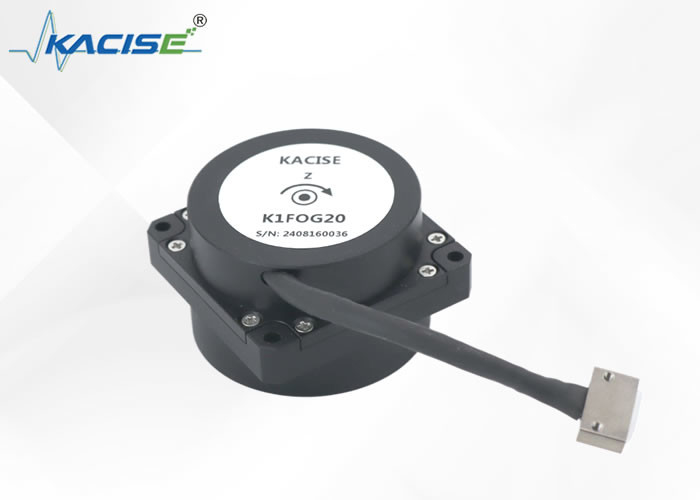

The offered device is an inertial angle rate sensor leveraging the optical Sagnac effect to accurately measure the carrier's rotational angular velocity along its sensitive axis. This cutting-edge sensor employs a state-of-the-art digital closed-loop detection circuit . This circuit is expressly designed to pinpoint the difference in optical paths encountered by clockwise-traversing light as it is influenced by the external physical angular velocity.
Subsequent modulating and demodulating processes are skillfully applied to the optical path signal's voltage. These intricate stages are essential for encoding the angular speed data into a readable format. Moreover, the system benefits from the implementation of closed-loop feedback and control . This sophisticated mechanism ensures the constant adjustment and stabilization needed for the real-time tracking and assessment of the angular velocity signal.
The sensor is constituted by two main components. The optical angular velocity sensitive unit , which is at the heart of the device, is responsible for sensing rotational motion. In tandem, the signal detection module processes this information to yield valuable outputs. Specifically, the product excels in delivering uniaxial angle increment data along with readings of the internal temperature, ensuring comprehensive insights into the system’s status and operation.
| Sn# | Test item | H | L |
| 1 | Dimensions (mm) | 50×50×36 | 50×50×36 |
| 2 | Start time (s) | 5 | 5 |
| 3 | Bias drift (°/h) (10s smooth, fix temperature) | ≤0.1 | ≤0.3 |
| 4 | Bias drift (°/h) (10s smooth -45~+70℃) | ≤0.3 | ≤0.5 |
| 5 | Bias repeatability (°/h) | ≤0.05 | ≤0.1 |
| 6 | Random walk coefficient(°/h1/2) | ≤0.01 | ≤0.02 |
| 7 | Scale factor non-linearity (ppm) | ≤10 | ≤20 |
| 8 | Scale factor repeatability (ppm) | ≤10 | ≤20 |
| 9 | Operate temperature (℃) | -45～+70 | -45～+70 |
| 10 | Storage temperature (℃) | -50～+80 | -50～+80 |
| 11 | Dynamic range (°/s) | ±900 | ±900 |
| 12 | Supply voltage (V) | +5 | +5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 | <4 |
| 14 | Weight (g) | ＜130 | ＜130 |
Dimensions
Our products are designed with versatility in mind, finding their place in a diverse array of technological applications. They are perfectly suited for a range of photoelectric devices, providing integral support to various industries.
Among the many applications, these products are ideal for use in cranes that rely on photoelectric technology for operation. They enhance the functionality of crane systems, improving safety and efficiency.
Additionally, our offerings are a great fit for flying platforms where stability and precise navigation are crucial. Their integration into inertial navigation and measurement systems ensures accurate data collection and analysis.
Optical and photographic instruments also gain greatly from our products. Utilizing them leads to improved stability and performance, which are critical for capturing high-quality images and data.
Finally, platform stabilization devices and inertial measurement instruments benefit from the inclusion of our state-of-the-art products, which help to maintain accuracy and reliability in challenging environments.
Thank you for choosing our Electronic Gyroscope Sensor. Our product is designed to deliver precise and reliable motion sensing performance for your applications. To ensure that you get the most out of your sensor, we offer comprehensive technical support and services.
Product Installation: Detailed installation guidelines are provided with the product to facilitate a smooth setup process. Please refer to the installation manual before attempting to install the sensor. Should you encounter any difficulties, our technical support team is here to assist you.
Technical Inquiries: Our team of experienced technicians is available to answer any technical questions you may have regarding the functionality, integration, or operation of your Electronic Gyroscope Sensor. We strive to provide clear and concise answers to help you resolve any issues promptly.
Firmware Updates: To ensure optimal performance and to introduce new features, we periodically release firmware updates for our Electronic Gyroscope Sensor. We recommend checking our website regularly for the latest updates and instructions on how to apply them.
Troubleshooting: If you experience any problems with your sensor, our troubleshooting guide can help you identify and solve common issues. For more complex problems, please do not hesitate to reach out to our support team for personalized assistance.
Warranty Service: Our Electronic Gyroscope Sensor comes with a manufacturer's warranty which covers defects in materials and workmanship. In the unlikely event that you require warranty service, please contact our support team for instructions on how to proceed with a warranty claim.
Product Documentation: Comprehensive documentation, including specification sheets, user manuals, and application notes, is available for download on our website. These resources are designed to provide you with in-depth information about the product and its capabilities.
Training Services: We offer training sessions to help you and your team better understand and utilize the Electronic Gyroscope Sensor. These sessions can be tailored to your specific needs and can be conducted online or in-person, depending on availability.
We are committed to providing exceptional support and services to ensure that you are completely satisfied with your Electronic Gyroscope Sensor. Our goal is to enable you to achieve the best possible performance and reliability from our product.
Product Packaging: Our Electronic Gyroscope Sensor is securely encased in anti-static packaging to prevent any electrostatic discharge during handling. The sensor is cushioned within a custom-fit foam insert to absorb shock and vibrations. The packaging is made from eco-friendly, recyclable materials, ensuring minimal environmental impact while maintaining product integrity during transit.
Shipping: The product is shipped in a sturdy, corrugated box that protects it from external damage. Each box is clearly labeled with handling instructions and the necessary precautionary measures to ensure safe transportation. We offer standard and expedited shipping options to meet your time-sensitive needs. Tracking information will be provided upon dispatch so you can monitor your shipment's progress until delivery.
