| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-50 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Scale Factor Non-linearity: | ≤10 (ppm) | Weight: | ＜130 (g) |
|---|---|---|---|
| Scale Factor Repeatability: | ≤10 (ppm) | Bias Repeatability: | ≤0.05 (°/h) |
| Operate Temperature: | -45～+70 (℃) | Steady-state Power Consumption (full Temperature): | <4(W) |
| Bias Drift (10s Smooth) -45~ + 70℃: | ≤0.3 (°/h) | Dynamic Range: | ±900 (°/s) |
| Storage Temperature: | -50～+80(℃) | Supply Voltage: | +5(V) |
| High Light: | 5V Gyroscope Sensors,Compact Size Gyroscope Sensors |
||

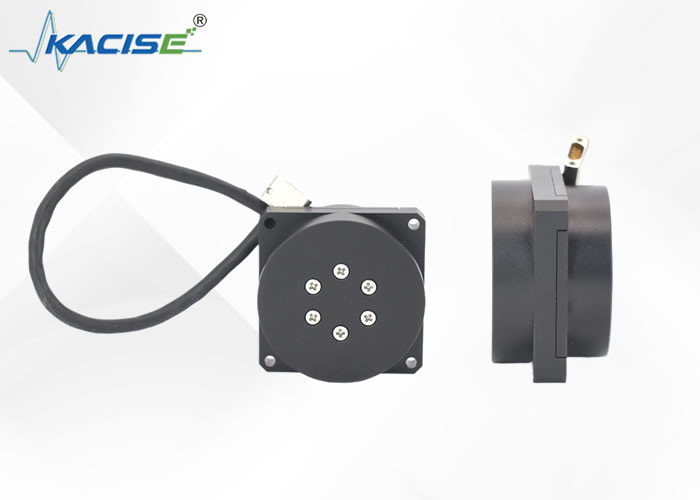

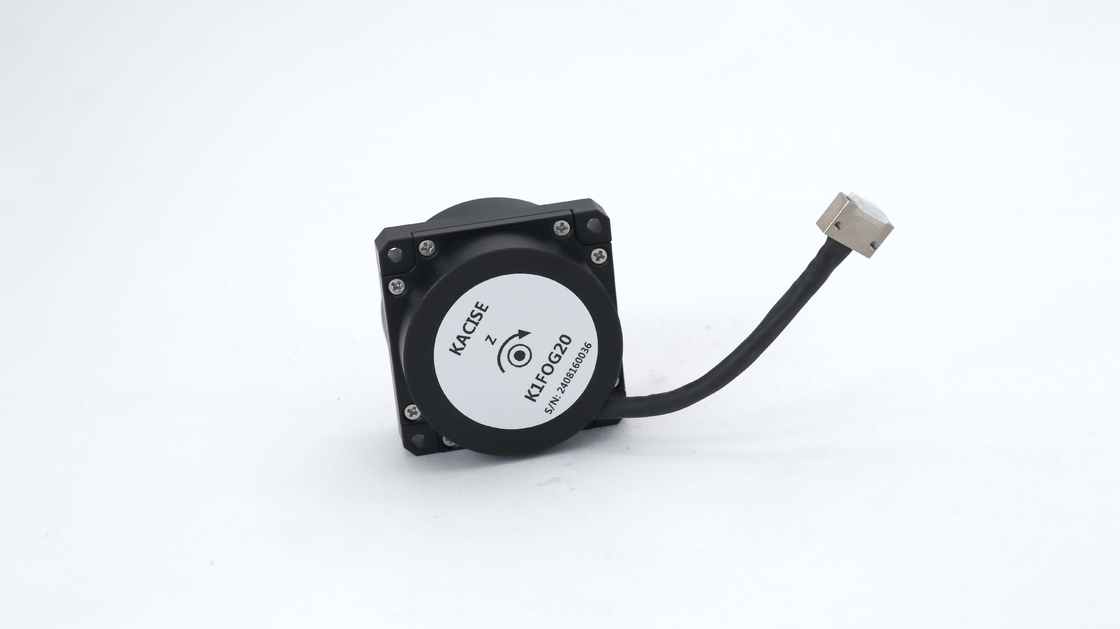

The product at hand is an inertial angle rate sensor that operates on the principles of the optical Sagnac effect. Its primary function is to determine the rotational angular velocity along its sensitive axis, which pertains to the movement of the object to which it is attached. Utilizing the latest in digital technology, the sensor employs a closed-loop detection circuitry.
By recording the optical path difference, which arises due to the effect of clockwise light responding to external physical angular speed, it accurately gauges the velocity. This involves a series of processes that include modulation and demodulation of the resultant voltage signal from the optical path. Subsequently, feedback and control mechanisms are established in a closed-loop system, thus enabling the real-time detection of the angular velocity signal.
The sensor is composed of two integral components. Firstly, the optical angular velocity sensitive unit is responsible for the primary detection of angular changes. Secondly, the signal detection component not only comprehends these angular variations but also monitors the internal temperature of the system. Together, they deliver critical single-axis angular increment data, paired with pertinent temperature information, ensuring optimal operation of the sensor.
| Sn# | Test item | H | L |
| 1 | Dimensions (mm) | 50×50×36 | 50×50×36 |
| 2 | Start time (s) | 5 | 5 |
| 3 | Bias drift (°/h) (10s smooth, fix temperature) | ≤0.1 | ≤0.3 |
| 4 | Bias drift (°/h) (10s smooth -45~+70℃) | ≤0.3 | ≤0.5 |
| 5 | Bias repeatability (°/h) | ≤0.05 | ≤0.1 |
| 6 | Random walk coefficient(°/h1/2) | ≤0.01 | ≤0.02 |
| 7 | Scale factor non-linearity (ppm) | ≤10 | ≤20 |
| 8 | Scale factor repeatability (ppm) | ≤10 | ≤20 |
| 9 | Operate temperature (℃) | -45～+70 | -45～+70 |
| 10 | Storage temperature (℃) | -50～+80 | -50～+80 |
| 11 | Dynamic range (°/s) | ±900 | ±900 |
| 12 | Supply voltage (V) | +5 | +5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 | <4 |
| 14 | Weight (g) | ＜130 | ＜130 |
Dimensions
Our products find their primary use across a variety of industries that require precision and stability. They are notably effective within systems that thrive on photoelectric efficiency. This includes cranes and other lifting machinery which benefit from photoelectric control systems for lifting and maneuvering objects with pinpoint accuracy.
Aerial platforms such as flying platforms also leverage our technology. These applications depend on robust stabilization and control, where our products enable a smoother and more controlled navigation and movement through space.
Furthermore, our products are indispensable in the realm of inertial navigation and measurement systems. These systems often form the backbone of navigation solutions in various vehicles and crafts, demanding the utmost precision, which our products provide.
The realm of optics and photography also benefits from our offerings. Whether it be sophisticated photographic instruments or platform stabilization devices, the precision our products offer is invaluable. Similarly, any inertial measurement instruments that require high-caliber performance are perfect candidates for our product integration.
Welcome to the Technical Support and Services section for the Electronic Gyroscope Sensor. We are committed to providing you with comprehensive support to ensure the optimal performance of our product. Here you will find a host of resources designed to help you understand, utilize, and troubleshoot your sensor.
Our support includes:
Product Documentation: Download the latest user manuals, technical specifications, and product guides to better understand your sensor's features and capabilities. Our documentation provides in-depth information on installation, operation, and maintenance.
Technical Support Team: If you need personalized assistance, our technical support team is here to help. They are well-versed in all aspects of our Electronic Gyroscope Sensor and can provide you with expert guidance and problem resolution. Please note that support hours may vary.
Warranty Service: Your Electronic Gyroscope Sensor comes with a limited warranty. Should you encounter any hardware-related issues during the warranty period, please refer to our warranty policy and procedures for service and replacement information.
We are dedicated to ensuring that you have the best possible experience with our product. If you have any questions or require further assistance, please refer to our online resources or contact our technical support team for support.
Product Packaging:
The Electronic Gyroscope Sensor is securely packed in a custom-designed, antistatic bag to prevent electrostatic discharge damage. This bag is then placed within a molded foam insert that fits snugly around the sensor, providing additional shock absorption. The foam insert is housed in a sturdy, recyclable cardboard box that ensures the sensor remains stationary during transit. Clear labeling on the outside of the box identifies the contents as fragile electronic components and includes handling instructions to ensure safe transportation.
Shipping:
Our Electronic Gyroscope Sensor is shipped using trusted courier services to provide fast and reliable delivery. Each package is assigned a unique tracking number, enabling customers to monitor their shipment in real-time. The sensor is shipped with insurance coverage to protect against loss or damage during transit. We offer standard and expedited shipping options to meet various delivery timelines and budget requirements. Upon dispatch, customers will receive an email with the tracking information and estimated delivery date.
