| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-60 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Random Walk Coefficient: | ≤0.01(º/h1/2) | Scale Factor Repeatability: | ≤10(ppm) |
|---|---|---|---|
| Bias Drift (10s Smooth, Fix Temperature): | ≤0.1(°/h) | Steady-state Power Consumption (full Temperature): | <4(W) |
| Bias Drift (10s Smooth) -45~ + 70℃: | ≤0.5(°/h) | Storage Temperature: | -50～+80(℃) |
| Operate Temperature: | -45～+70(℃) | Bias Repeatability: | ≤0.1(°/h) |
| Dynamic Range: | ±500(°/s) | ||
| High Light: | 0.1(°/h) Fiber Optic Gyro,Fiber Optic Gyro For AUVs,Autonomous Underwater Vehicles Fiber Optic Gyro |
||

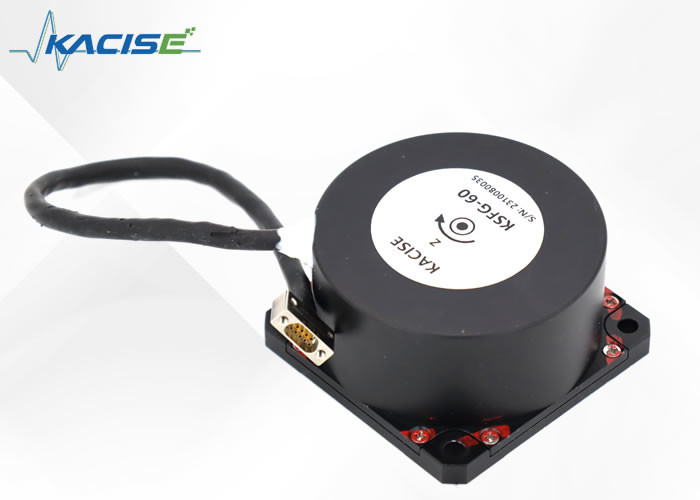

The product featured here is an advanced inertial angle rate sensor that operates on the principle of the optical Sagnac effect. It is expertly designed to measure the rotational angular velocity experienced by the carrier along its sensitive axis with high precision. At the heart of this sensor lies a state-of-the-art digital closed-loop detection circuit. This sophisticated circuit works tirelessly to detect the slightest differences in the optical path of clockwise traveling light, a variation induced by external angular velocities.
Upon capturing these subtle changes, the sensor's mechanism kicks into gear, undertaking the modulation and demodulation of the voltage signal corresponding to the optical path. Through this modulation process, the external angular speed's impact is transduced into a decipherable electrical signal. The sensor does not stop there; it also employs an advanced closed-loop feedback and control system. The result is a finely-tuned process that ensures real-time detection and accurate measurement of the angular velocity signal.

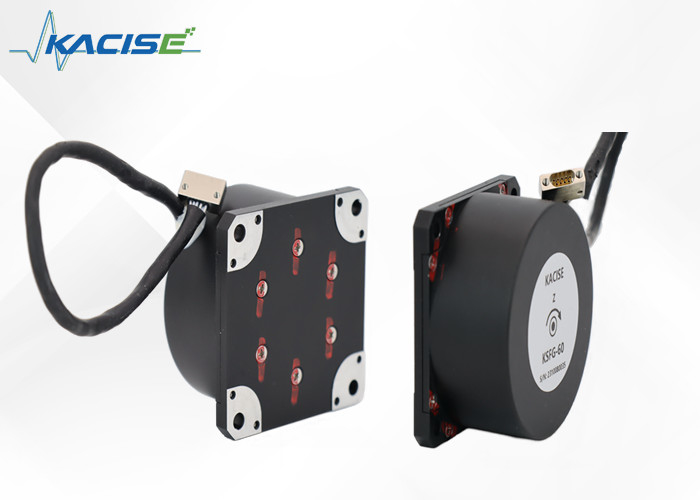

In terms of functionality and build, the product is divided into two main components. Firstly, there is the optical angular velocity sensitive unit, which detects the rotational movements with high sensitivity. Secondly, the signal detection segment of the sensor adeptly processes the information gathered by the sensitive unit. Together, these components not only provide precise uniaxial angle increment data but also monitor the internal temperature, maintaining the sensor's performance irrespective of environmental changes.
| Sn# | Test item | H |
| 1 | Dimensions (mm) | 60×60×32 |
| 2 | Start time (s) | 3 |
| 3 | Bias drift (°/h) (10s smooth, fix temperature) | ≤0.1 |
| 4 | Bias drift (°/h) (10s smooth -45~+70℃) | ≤0.5 |
| 5 | Bias repeatability (°/h) | ≤0.1 |
| 6 | Random walk coefficient(°/h1/2) | ≤0.01 |
| 7 | Scale factor non-linearity (ppm) | ≤10 |
| 8 | Scale factor repeatability (ppm) | ≤10 |
| 9 | Operate temperature (℃) | -45～+70 |
| 10 | Storage temperature (℃) | -50～+80 |
| 11 | Dynamic range (°/s) | ±500 |
| 12 | Supply voltage (V) | +5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 |
| 14 | Weight (g) | ＜180 |
Dimensions
Our products find their primary applications in a variety of fields. Notably, they are an integral part of the efficient operation of photoelectric cranes. These machines require precise control and stabilization, and our products deliver just that.
In the same vein, cranes and flying platforms also benefit from our advanced technology. Whether it's for construction, maintenance, or any other heavy-lifting task, our products ensure a steady performance where it counts the most.
Moreover, our sophisticated lineup is essential in the world of navigation and measurement. Inertial navigation and measurement systems rely on the pinpoint accuracy and reliability our products provide. This assures that whether on land, sea, or air, navigational accuracy is unquestionable.
Optical and photographic instruments are also part of our application spectrum. Precision is vital in these disciplines, and our products bring that precision to life, enabling crystal-clear imaging and flawless optical execution.
Finally, for platform stabilization devices and inertial measurement instruments, the need for rock-solid stability is non-negotiable. Our products stand at the forefront, ensuring unwavering stability and measurement accuracy that our clients depend on for their mission-critical applications.
Welcome to the Product Technical Support and Services page for our Electronic Gyroscope Sensor. Our dedicated team is here to assist you with any product-related inquiries or issues you may encounter. We provide a comprehensive range of services to ensure your gyroscope sensor operates at peak performance.
Our technical support includes:
In addition to technical support, we offer a variety of services to enhance your experience with our product:
Our goal is to ensure you are completely satisfied with your Electronic Gyroscope Sensor and to provide the support you need to use it effectively in your projects. If you have any questions or require further assistance, please refer to our comprehensive support documentation or contact our customer service team for personalized support.
The Electronic Gyroscope Sensor is securely packaged in a static-free, cushioned box designed to prevent any movement during transit, ensuring the integrity of the sensitive components. Each box is clearly labeled with the product name, specifications, and handling instructions to facilitate proper transportation and identification.
For shipping, the packaged sensors are placed inside a sturdy, corrugated cardboard box with additional padding material to minimize the risk of damage from shock or vibration. The outer box is sealed with tamper-evident tape and prominently displays the shipping label, along with any necessary warning stickers to comply with electronic shipping regulations.
Before dispatch, every package undergoes a thorough inspection to verify that it meets our strict quality and safety standards. We are committed to ensuring that your Electronic Gyroscope Sensor arrives at its destination in perfect working condition.
