| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-60 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Operate Temperature (℃): | -45～+70 | Start Time: | 3 (s) |
|---|---|---|---|
| Bias Drift (10s Smooth, Fix Temperature): | ≤0.1 (°/h) | Supply Voltage: | +5 (V) |
| Scale Factor Non-linearity: | ≤10 (ppm) | Dynamic Range: | ±500 (°/s) |
| Random Walk Coefficient: | ≤0.01(º/h1/2) | Scale Factor Repeatability: | ≤10 (ppm) |
| High Light: | 3 s Start Time optic gyroscope sensors,Diamagnetic Fiber Optic Gyroscope Sensors,drones fiber optic gyroscope sensors |
||

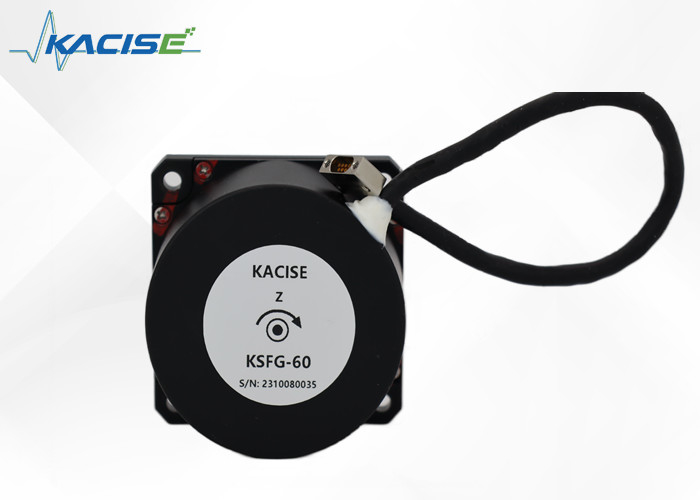

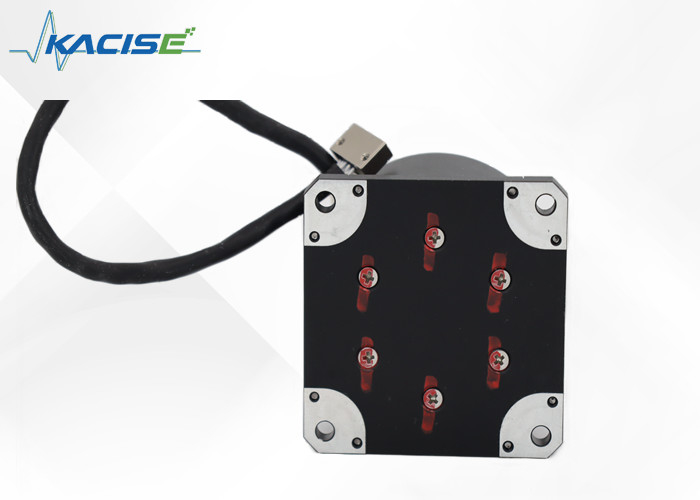

The product introduced here operates as an inertial angle rate sensor utilizing the optical Sagnac effect to accurately measure the rotational angular velocity. Exclusively designed to monitor movement along its sensitive axis, this sensor stands out for its precision and reliability.
At its core lies a sophisticated digital closed-loop detection circuit. This circuit meticulously processes the optical path difference, which results from the clockwise circulation of light affected by the carrier's external angular speed. The intricacies of modulating and demodulating the voltage signal derived from the optical path are skillfully managed, enabling the sensor to deliver a closed-loop feedback and control system. Such an advanced feature signifies a notable leap in obtaining real-time detection of the angular velocity signal.
The dual-part composition of this product comprises an optical angular velocity sensitive unit alongside a signal detection mechanism. Together, they furnish a stream of information. The sensitive unit is tasked with the provision of uniaxial angle increment data, which is essential for various applications where precise rotational measurements are needed.
Additionally, it provides key internal temperature data vital for maintaining the sensor's accuracy under different operational conditions. This data ensures that the sensor's performance remains unaffected by thermal variances, thereby guaranteeing consistent and reliable readings.
| Sn# | Test item | H |
| 1 | Dimensions (mm) | 60×60×32 |
| 2 | Start time (s) | 3 |
| 3 | Bias drift (°/h) (10s smooth, fix temperature) | ≤0.1 |
| 4 | Bias drift (°/h) (10s smooth -45~+70℃) | ≤0.5 |
| 5 | Bias repeatability (°/h) | ≤0.1 |
| 6 | Random walk coefficient(°/h1/2) | ≤0.01 |
| 7 | Scale factor non-linearity (ppm) | ≤10 |
| 8 | Scale factor repeatability (ppm) | ≤10 |
| 9 | Operate temperature (℃) | -45～+70 |
| 10 | Storage temperature (℃) | -50～+80 |
| 11 | Dynamic range (°/s) | ±500 |
| 12 | Supply voltage (V) | +5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 |
| 14 | Weight (g) | ＜180 |
Dimensions
Our products offer versatility across multiple high-tech platforms, ensuring compatibility and enhancement of various systems. Their primary utility ranges as follows:
They are perfectly suited for integration with photoelectric cranes, streamlining performance and efficiency in the heavy machinery sector.
Our technology seamlessly adapts to the demands of cranes and flying platforms, providing robust support for aerial work and facilitating complex tasks performed at heights.
These products excel in enhancing the capabilities of inertial navigation and inertial measurement systems, critical for precision in motion tracking and control.
Optical and photographic instruments also benefit significantly, as our solutions aid in improving the clarity and stability of images captured under various conditions.
Moreover, our range is an excellent fit for platform stabilization devices and inertial measurement instruments, ensuring accurate readings and consistent performance in environments where precision is paramount.
The Electronic Gyroscope Sensor is designed to provide high-precision motion sensing for a wide range of applications. Our product technical support and services are committed to ensuring that your experience with our sensor is seamless and efficient. Below is an overview of the support services we offer:
Technical Documentation: We provide comprehensive technical documents, including datasheets, installation guides, and application notes, which are available for download on our website.
Troubleshooting Assistance: If you encounter any issues with your sensor, our technical support team is available to help troubleshoot and provide solutions to get your device back to peak performance.
Warranty Service: The Electronic Gyroscope Sensor comes with a standard warranty covering defects in materials and workmanship. If your sensor is not functioning as expected, please refer to our warranty policy for service and replacements.
Repair Services: In the event that your sensor requires repair beyond the warranty period, we offer paid repair services to extend the life of your device.
Customer Feedback: We value customer feedback and continuously work to improve our products and services. Please feel free to share your experience and suggestions with us.
For any questions or additional support needs, please refer to our customer service section (contact information excluded as per request). We are dedicated to providing you with exceptional support for your Electronic Gyroscope Sensor.
The Electronic Gyroscope Sensor is housed in a high-strength, protective packaging to ensure safe delivery. The packaging is made from eco-friendly, recyclable materials, and is designed to firmly secure the sensor during transit, minimizing the risk of damage from shocks, vibrations, and static.
Each sensor is individually encased in an anti-static bag, which is then cushioned with foam inserts that conform to the shape of the sensor for added protection. The outer carton is sturdy and sealed with tamper-evident tape, providing an extra layer of security.
Prior to shipping, all packages undergo a thorough inspection to guarantee that the sensor and its accompanying documentation are intact. The package is then labeled with handling instructions and tracking information to facilitate a smooth delivery process to our customers.
