| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-60 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Bias Drift (10s Smooth, Fix Temperature): | ≤0.1(°/h) | Random Walk Coefficient: | ≤0.01(º/h1/2) |
|---|---|---|---|
| Weight: | ≤180(g) | Start Time: | 3(s) |
| Supply Voltage: | +5(V) | Operate Temperature: | -45～+70 (℃) |
| Storage Temperature: | -50～+80 (℃) | Bias Drift (10s Smooth) -45~ + 70℃: | ≤0.5 (°/h) |
| High Light: | Navigation Systems Fiber Optic Gyroscopes Sensor,0.1(°/h) Gyroscopes sensor,Fiber Optic Gyroscopes Sensor |
||

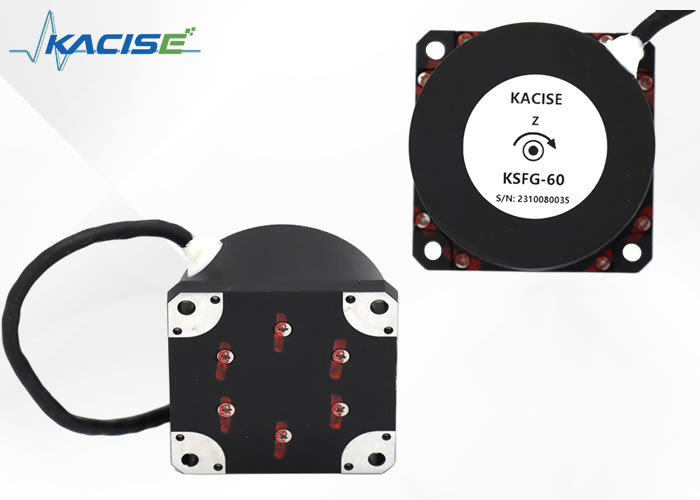

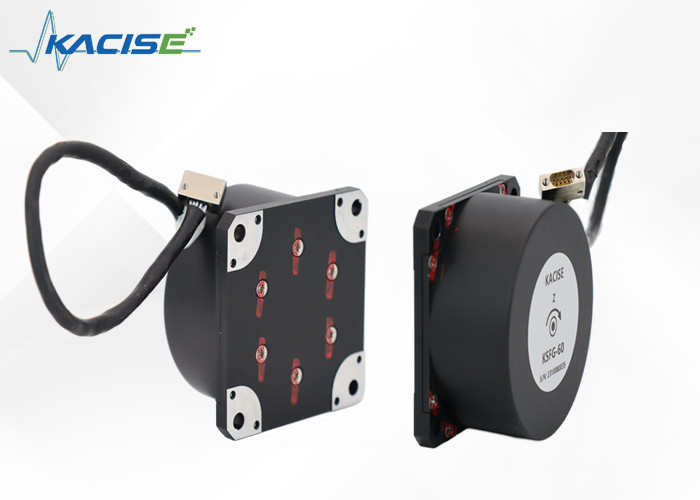

This product is a state-of-the-art inertial angle rate sensor, utilizing the optical Sagnac effect to accurately measure the rotational angular velocity of the carrier. Engineered with precision, it tracks movement along its sensitive axis, ensuring reliable readings in various applications.
At the core of this sensor's technology lies a digital closed-loop detection circuit. This sophisticated circuitry is responsible for capturing the optical path difference induced by any external angular speed. The process involves modulating and demodulating the voltage signal derived from the clockwise light within the system. Such comprehensive processing allows for precise closed-loop feedback and control, culminating in the real-time detection of the angular velocity signal.
The product is comprised of two primary components: the optical angular velocity sensitive unit, and the signal detection mechanism. Together, they deliver crucial data on uniaxial angle increment and the current internal temperature of the device. This information proves vital for a wide range of applications that require accurate angular velocity measurements and monitoring of device integrity through temperature readings.
| Sn# | Test item | H |
| 1 | Dimensions (mm) | 60×60×32 |
| 2 | Start time (s) | 3 |
| 3 | Bias drift (°/h) (10s smooth, fix temperature) | ≤0.1 |
| 4 | Bias drift (°/h) (10s smooth -45~+70℃) | ≤0.5 |
| 5 | Bias repeatability (°/h) | ≤0.1 |
| 6 | Random walk coefficient(°/h1/2) | ≤0.01 |
| 7 | Scale factor non-linearity (ppm) | ≤10 |
| 8 | Scale factor repeatability (ppm) | ≤10 |
| 9 | Operate temperature (℃) | -45～+70 |
| 10 | Storage temperature (℃) | -50～+80 |
| 11 | Dynamic range (°/s) | ±500 |
| 12 | Supply voltage (V) | +5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 |
| 14 | Weight (g) | ＜180 |
Dimensions
Welcome to the Technical Support and Services page for the Electronic Gyroscope Sensor product. Our dedicated team is here to provide you with the highest quality support and service to ensure that your experience with our product is exceptional. We offer a range of services to help you get the most out of your Electronic Gyroscope Sensor.
If you are experiencing technical issues or have any concerns about your product, we offer comprehensive troubleshooting assistance. Our support team is equipped with extensive knowledge of the product and is ready to provide solutions for any problems you may encounter.
For those looking to maximize the performance and longevity of their Electronic Gyroscope Sensor, we provide maintenance tips and guidance. Proper care and handling can greatly improve your product's lifespan and functionality.
Additionally, our service includes detailed product documentation and user manuals to ensure that you can fully understand and utilize all aspects of your Electronic Gyroscope Sensor. These resources are designed to help you navigate the product's features and specifications with ease.
For more advanced users, we provide technical specifications and developer resources for custom applications and integrations. Our team is committed to supporting innovators and professionals in using the Electronic Gyroscope Sensor to its full potential.
Thank you for choosing our Electronic Gyroscope Sensor. We are here to ensure that your experience with our product is smooth, efficient, and satisfactory. Your success is our priority.
Product Packaging for Electronic Gyroscope Sensor:
Each Electronic Gyroscope Sensor is securely encased in an anti-static bag to prevent any electrostatic discharge damage during handling. The bag is then placed in a custom-fit, foam-lined box that is designed to snugly hold the sensor, minimizing movement that could lead to mechanical stress. The box is constructed from high-quality, durable cardboard that provides structural integrity to withstand the rigors of transit. Clear labeling on the outside of the box indicates the contents are sensitive electronic devices and should be handled with care.
Shipping Information for Electronic Gyroscope Sensor:
The packaged Electronic Gyroscope Sensor is shipped in a sturdy outer carton that is sealed with tamper-evident security tape, ensuring the product's integrity upon arrival. Depending on the quantity ordered and destination, the shipment may be dispatched via standard courier services for individual orders or through freight services for bulk orders. Each shipment is accompanied by a packing slip detailing the contents and a tracking number to allow for real-time monitoring of the delivery status. Customers are advised to inspect the package upon delivery and report any signs of damage immediately to customer service for prompt resolution.
