| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-60 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Bias Drift (10s Smooth) -45~ + 70℃: | ≤0.5(°/h) | Dimensions: | 60×60×32(mm) |
|---|---|---|---|
| Bias Drift (10s Smooth, Fix Temperature): | ≤0.1(°/h) | Dynamic Range: | ±500(°/s) |
| Storage Temperature: | -50～+80(℃) | Supply Voltage: | +5(V) |
| Bias Repeatability: | ≤0.1(°/h) | Steady-state Power Consumption (full Temperature): | <4(W) |
| High Light: | 60×60×32 mm Fiber Optic Gyroscope Sensor,0.1 °/h Bias Drift Gyroscope Sensor,High Precision Fiber Optic Gyroscope Sensor |
||

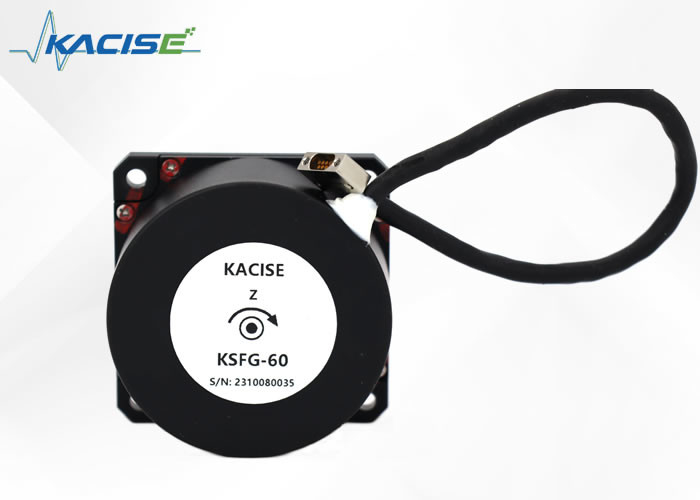

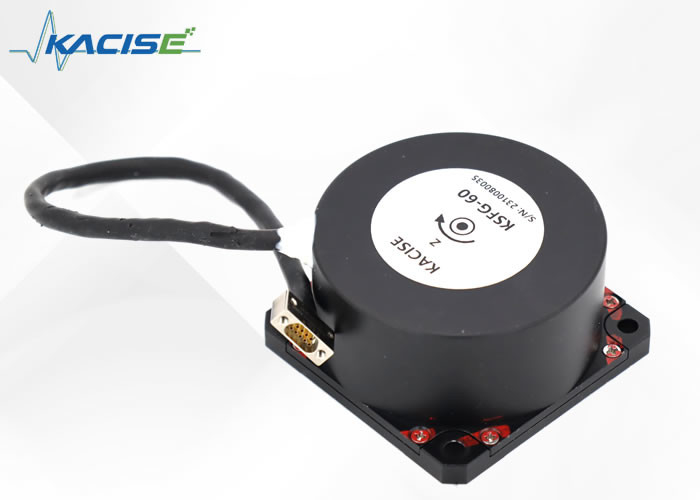

The product in question is an inertial angle rate sensor that operates on the principles of the optical Sagnac effect. It is designed to accurately measure the rotational angular velocity of an object along its sensitive axis. This cutting-edge sensor employs a digital closed-loop detection circuit to discern the optical path disparity induced by the external physical angular speed.
When the sensor perceives rotational movement, it detects the corresponding change in the optical path of clockwise-propagating light. A sophisticated modulation and demodulation process converts this optical path variation into a voltage signal. By utilizing this method, it is not only possible to monitor the optical signal but also to manage it through closed-loop feedback and control. The ultimate goal is the real-time detection of angular velocity signals.
This advanced sensor is comprised of two integral components: the optical angular velocity sensitive unit and the signal detection unit . Together, they collaborate to provide valuable output such as the uniaxial angle increment data and the internal temperature metrics. These features ensure that users receive comprehensive information for precise control and analysis.
| Sn# | Test item | H |
| 1 | Dimensions (mm) | 60×60×32 |
| 2 | Start time (s) | 3 |
| 3 | Bias drift (°/h) (10s smooth, fix temperature) | ≤0.1 |
| 4 | Bias drift (°/h) (10s smooth -45~+70℃) | ≤0.5 |
| 5 | Bias repeatability (°/h) | ≤0.1 |
| 6 | Random walk coefficient(°/h1/2) | ≤0.01 |
| 7 | Scale factor non-linearity (ppm) | ≤10 |
| 8 | Scale factor repeatability (ppm) | ≤10 |
| 9 | Operate temperature (℃) | -45～+70 |
| 10 | Storage temperature (℃) | -50～+80 |
| 11 | Dynamic range (°/s) | ±500 |
| 12 | Supply voltage (V) | +5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 |
| 14 | Weight (g) | ＜180 |
Our products are designed with versatility in mind, finding their use predominantly in the realm of photoelectric and lifting equipment. This includes devices such as cranes and overhead lifting platforms, which benefit from the advanced technology we provide.
In the domain of navigation and precision measurement, they are perfectly suited for inertial navigation systems and inertial measurement units. Their reliability and accuracy make them essential components in these applications.
Moreover, for the stabilization and accuracy in optical and photographic equipment, our products ensure that the necessary stability is achieved. They are also integral to the functioning of platform stabilization devices, where maintaining a steady operation is crucial.
Ultimately, across a variety of industries requiring precise and stable instrumental performance, our products play a critical role. These sectors include but are not limited to, industries utilizing inertial measurement instruments for their sophisticated needs.
Our Electronic Gyroscope Sensor is designed with precision in mind, providing you with the stability and accuracy you need for your applications. To ensure that you get the most out of our product, we offer comprehensive technical support and services to address any issues you might encounter.
Product Setup and Configuration: Our team is available to guide you through the initial setup process, helping you to configure your Electronic Gyroscope Sensor for optimal performance in your specific environment.
Troubleshooting: If you experience any difficulties with your sensor, our technical support team is ready to assist you with troubleshooting steps to diagnose and resolve the issue quickly.
Product Documentation: Access a comprehensive library of documentation, including user manuals, technical specifications, and application notes, to better understand and utilize your gyroscope sensor.
Software and Integration Support: We offer guidance on integrating the Gyroscope Sensor with your existing systems and software, ensuring seamless operation and compatibility.
Warranty Service: The Gyroscope Sensor comes with a standard warranty covering defects in materials and workmanship. For warranty claims or to understand the scope of coverage, please refer to our warranty policy.
Advanced Services: For complex projects or specialized needs, our team can provide advanced support services, including customized software solutions and professional consulting.
We are committed to providing you with the support you need to ensure the Gyroscope Sensor meets your expectations and contributes to the success of your projects. For further assistance, our customer support team is available to help with any additional inquiries or concerns.
Product Packaging: The Gyroscope Sensor is securely encased in a custom-fit, anti-static foam insert that ensures stability and protection from electrostatic discharge. The foam is then housed in a durable, corrugated cardboard box designed to withstand the rigors of transport. Each box is sealed with tamper-evident tape and clearly labeled with the product's specifications and handling instructions. Additionally, a detailed instruction manual and any necessary accessories are included within the box to facilitate immediate use upon arrival.
Shipping: Our Gyroscope Sensor is shipped via a trusted courier service to ensure timely and safe delivery. The shipping process includes real-time tracking and requires a signature upon delivery to guarantee that the product reaches the correct recipient. We offer standard, expedited, and overnight shipping options to meet various time-sensitive needs. Each package is insured for its full value, providing peace of mind that in the unlikely event of damage or loss during transit, the customer will be fully compensated.
