| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARGA1 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Output Noise: | <0.02(°/s√Hz) | Tolerated Acceleration: | 20000(0.1ms)(g) |
|---|---|---|---|
| Size: | 34×25×24(mm) | Incoming CurrentmA: | <30 MA |
| Input Voltage: | 6-15V(Vdc) | Operating Temperature Range: | -45～+80(°C) |
| Resolution/Threshold: | ≤0.1(°/s) | Scaling Factor: | 8±0.5(mv/°/s) |
| Output Voltage: | 0.5-4.5(V) |

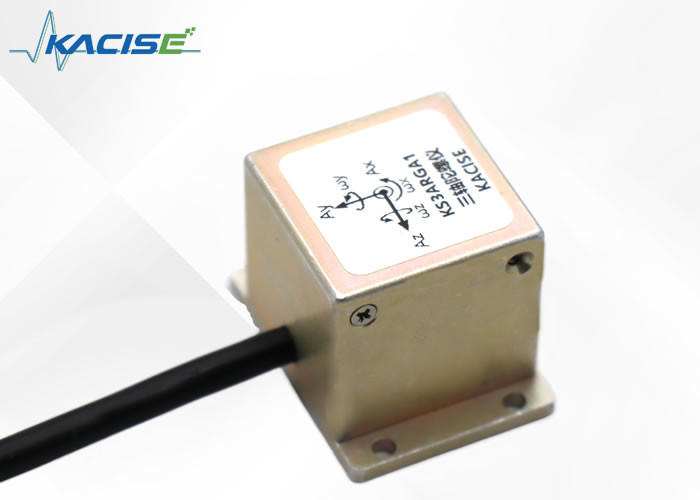

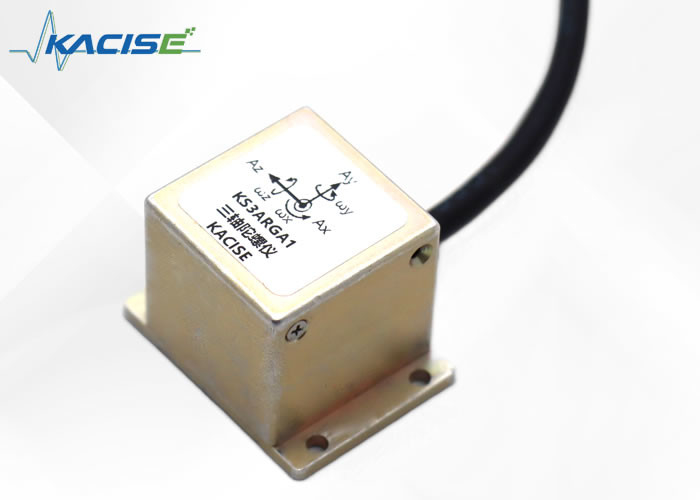

The Kacise KS3ARGA1 series is a cutting-edge three-axis universal angular rate gyro developed by Kacise . Its primary function is to precisely gauge the angular rate across three axes. This is achieved using MEMS technology chips that are integrated into each axis of the gyro. These chips are known for their remarkable performance, affordability, high reliability, and significant package ruggedness. Adding to the sophisticated design, a Self-Test feature is also included to ensure consistent functionality.
The functionality of the KS3ARGA1 series gyroscopes is centered around the principle of resonator gyros . The core of this system involves two polysilicon sensitive structures. These structures each boast a high-frequency vibrating frame that operates on electrostatic drive and resonates to provide the necessary velocity measurements. The design is such that the frame's two outer ends form a capacitance-sensitive setup tailored to detect the Coriolis effect caused by the angular rate. This detection prompts the generation of an electrical signal that is then forwarded through an amplifying stage and a modulating stage, concluding with an output that is a precise electrical representation of the angular rate.
● low power consumption
● wide operating temperature range
● wide bandwidth
● small size
● DC input DC output
● fast start
● high performance, low cost
Dimensions
| Parameter | KS3ARGA1 |
| Power supply parameter | |
| Input voltage | 6-15V(Vdc) |
| Incoming currentmA | <30 mA |
| Offset voltage | 2.5±0.05(V) |
| Output voltage | 0.5-4.5(V) |
| Product performance | |
| Range | ±250(°/s) |
| Scaling factor | 8±0.5(mv/°/s) |
| Nonlinearity | ≤0.05(%FR) |
| Resolution/Threshold | ≤0.1(°/s) |
| Cross coupling | ≤2(%) |
| Output noise | <0.02(°/s√Hz) |
| run-up time | ≤20(ms) |
| Bandwidth can customize | 80(Hz) |
| G-value sensitivity | <0.02(°/s/g) |
| Mean time between failures | 100000hour(MTBF) |
| Size | 34×25×24(mm) |
| Weight | ≤40(g) |
| Environment | |
| Operating temperature range | -45～+80(°C) |
| Storage temperature | -65～+125(°C) |
| Tolerated acceleration | 20000(0.1ms)(g) |
The field of automotive electronics is rapidly expanding, integrating advanced electronic systems to enhance vehicle performance and safety. These systems provide innovative solutions for navigation, entertainment, and vehicle management.
Within the domain of aviation, aircraft guidance and control systems are vital. They ensure safe and efficient flight operations by enabling precise aircraft navigation and maneuverability. Key to this functionality is maintaining the aircraft's intended direction and handling.
The attitude reference system is a crucial component in various technologies, from aerospace to marine applications. It provides real-time information on the orientation of a vehicle relative to the earth's horizon, assuring accurate navigation and course alignment.
When it comes to maintaining the orientation of a device or vehicle, platform stabilization is indispensable. From ships to camera gimbals, these systems counteract unwanted movements, guaranteeing a steady base for operations or capturing consistent imagery.
In robotics, robot and antenna stabilization is important for maintaining accuracy and functionality. Robust stabilization systems ensure that robots and antennas operate effectively, even in challenging or dynamic environments.
Lastly, camera and digital camera gyro technology represents a leap forward for photography and videography. These advanced stabilization devices help photographers and filmmakers shoot with high precision, eliminating blurriness caused by hand tremors or movements, resulting in crystal-clear images and smooth videos.
Welcome to our Technical Support and Services for the Gyroscope Sensor. Our dedicated team is here to assist you with any technical issues or inquiries you may have regarding the use, installation, or maintenance of your gyroscope sensor. We are committed to providing you with the best possible support to ensure your product functions optimally.
Our support includes detailed product documentation, frequently asked questions (FAQs), and troubleshooting guides designed to help you resolve common issues quickly. For more complex or specific concerns, our technical support team is ready to provide personalized assistance.
If you require further assistance, please refer to the 'Contact Us' section of our website (contact information excluded as per request) where you can find additional resources and support channels to get in touch with our professional technical support team.
Thank you for choosing our Electronic Gyroscope Sensor. We look forward to serving you and ensuring the success of your projects
The Electronic Gyroscope Sensor is meticulously packaged in an anti-static bag to ensure protection against electrostatic discharge (ESD). The sensor is then securely encased in a custom-fit, high-density foam mold, which provides superior shock absorption during transit. This foam is placed within a durable, branded cardboard box that shields the sensor from environmental factors and potential damage while in transit.
The exterior of the box features clear labeling with the product name, handling instructions, and a barcode for easy tracking. All our packages are sealed with tamper-evident tape, offering an additional layer of security.
For shipping, the Electronic Gyroscope Sensor is dispatched via a trusted courier service to ensure timely and safe delivery. We include insurance for the full value of the product, offering peace of mind and protection for your investment. Tracking information is provided as soon as the package is dispatched, allowing for real-time monitoring of the shipment until it arrives at its destination.
