| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KXV9721 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Rate Range I: | ±400°/s | Scale Factor So: | 70 LSB/(°/s) ±2% 17920 LSB/(°/s) ±2% |
|---|---|---|---|
| Scale Factor Variation Over Temperature Spt: | ±3% | Operating Temperature TOPR: | -20℃～+80℃ |
| Bias ZRL: | ±1°/s (0 LSB Typ) | Non-linearity NI: | Non-linearity NI |
| Supply Voltage For Interface VDDI: | +1.65V~+3.6V | Current Consumption Iop1: | 900μA Typ |
| High Light: | 900μA MEMS gyroscope chip,quartz MEMS Gyroscope Chip,Digital MEMS Gyroscope Chip |
||
The KXV9721 is a sensor that boasts superior bias output stability and low noise. This is achieved through its use of digital quartz gyroscope technology, which is built on top of quartz MEMS technology and semiconductor processing.
Additionally, the KXV9721 is highly compatible with digital output interfaces such as SPI and I2C. What's more, it allows for independent interface power supply voltage settings, which enables communication with a variety of interfaces. Furthermore, the sensor provides user-selectable low-pass and high-pass filters that cater to a wide range of cut-off frequencies. These features make the KXV9721 a viable choice for a range of applications, from wearable devices and consumer electronics to industrial equipment.
● Excellent bias temperature coefficient 0.0016 (°/s)/°C Typ
● Low angle random walk 0.065 °/√h Typ
● Integrated user-selectable digital filter and detuning frequency eliminate filter
● SPI or I2C serial interface
● Angular rate output (16 bits or 24 bits resolution)
● Operating temperature -20 °C to +80 °C
● Embedded temperature sensor
● Low current consumption 900 μA Typ
| Parameter | KFOGD020A | Explanation | |
| Power supply parameter | |||
| Supply voltage VDDM | +2.7V~+3.6V | ||
| Supply voltage for interface VDDI | +1.65V~+3.6V | ||
| Product performance | |||
| Scale factor So | 70 LSB/(°/s) ±2% | 16 bits,Ta=+25℃ | |
| 17920 LSB/(°/s) ±2% | 24 bits,Ta=+25℃ | ||
| Scale factor variation over temperature Spt | ±3% | VDDM=3V,Ta=+25℃ reference | |
| Bias ZRL | ±1°/s (0 LSB Typ) | Ta=+25℃ | |
| Bias variation over temperature A ZRLta | ±0.25°/h | -10℃~+50℃,Ta=+25℃ reference | |
| Bias variation over temperature B ZRLtb | ±1°/h | -20℃~+80℃,Ta=+25℃ reference | |
| Bias temperature coefficient ZRLs | 0.0016(°/s)/℃ (Typ) | VDDM = 3v,Average of absolute value,ΔT=1℃ | |
| Rate range I | ±400°/s | ||
| Non-linearity NI | ±0.5%FS | Ta=+25℃ | |
| Cross-axis sensitivity CS | ±5% | Ta=+25℃ | |
| Current consumption Iop1 | 900μA Typ | ||
| Sleep current Iop3 | 3μA Typ | ||
| Noise density Nd | 0.0015 (°/s)/√Hz | @ 10Hz, LPF default setting | |
| Angle random walk N | 0.065 °/√h | ||
| Environment | |||
| Operating temperature TOPR | -20℃～+80℃ | ||
| Storage temperature TSTG | -40℃～+85℃ | ||

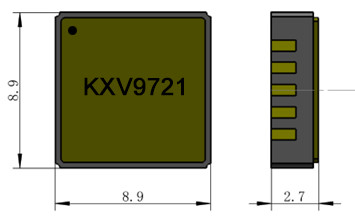

Dimensions
Our company offers a wide range of cutting-edge solutions that cater to diverse fields of industrial technology. From anti-vibration and attitude control for industrial applications, to motion detection for human machine interface, we provide high-quality components that ensure optimal performance and precise results.
With our expertise in wearable technology, we also offer advanced solutions for developing and integrating wearable devices into various industries. Our solutions are designed to be practical, efficient, and adaptable, making them suitable for use across a broad range of applications.
We specialize in developing medical motion detection equipment that is essential for monitoring patients, tracking their physical activity, and detecting abnormalities in their movements. Our equipment is highly accurate and reliable, helping healthcare professionals deliver the best possible care to their patients.
Our products are also indispensable for applications that require stable optical and photography platforms. With our cutting-edge technology, we deliver the highest level of stability to help you achieve the best possible results in your work. We also provide inertial measurement instruments that are designed to deliver exceptional accuracy and reliability, ensuring precise measurements across a range of applications.
Our Electronic Gyroscope Sensor is designed to provide precise motion sensing in a variety of applications. Our product technical support and services are dedicated to ensuring that you can integrate and use our gyroscope sensor effectively in your projects.
Technical Support:
- Comprehensive online documentation: Access detailed product specifications, integration guides, and troubleshooting articles to assist you with any technical queries regarding our Electronic Gyroscope Sensor.
Services:
- Email support: Reach out to our dedicated support team for personalized assistance with any technical issues you may encounter.
We are committed to providing you with the support you need to utilize our Electronic Gyroscope Sensor to its fullest potential.
.
he Electronic Gyroscope Sensor is housed in a robust, anti-static packaging to ensure the device remains secure and undamaged during transit. The interior of the packaging is lined with a cushioning material that absorbs shocks and vibrations, providing additional protection for the sensitive components of the sensor.
Prior to shipment, each package is sealed and subjected to a thorough inspection to guarantee that the sensor is securely enclosed. The exterior of the packaging is clearly labeled with handling instructions and the package contents to facilitate careful handling and to inform the recipient about the enclosed device.
For shipping, the packaged Electronic Gyroscope Sensor is placed in a larger, durable cardboard box designed to withstand the rigors of transport. This box is further secured with packing tape and, if necessary, additional cushioning materials are added to prevent movement within the box during shipment.
Each shipment includes a detailed packing slip with product information and a unique serial number for inventory tracking and quality control purposes. The package is then dispatched through a reliable courier service with options for tracking and insurance to ensure the Electronic Gyroscope Sensor arrives at its destination promptly and in pristine condition.
