| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KQ1GY101R200 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Power Voltage: | +6V~+20V DC | Input Current: | <20mA |
|---|---|---|---|
| Range: | ±200°/s | Bias: | 0°/s±2°/s |
| Bias Stability(1σ)@25°C: | ≤30°/h | Bias Stability (allan Deviation): | ≤5°/h |
| Bias Repeatability(1σ)@25°C: | ≤30°/h | Bias Temperature Sensitivity: | ≤2°/s |
| Scale Factor Nonlinearity: | ≤0.05% | Resolution: | ≤0.01°/s |
| Threshold: | ≤0.01°/s | Scale Factor: | 10mV/°/s±1mV/°/s |
| Weight: | <100g | Size: | 21mm×21mm×11mm |
| Operating Temperature: | -40°C～+85°C | Random Vibration: | 5g Rms |
| Shock: | ≥200g | ||
| High Light: | Wideband tuning fork gyroscope,Quartz Tuning Fork Gyroscope,low power tuning fork gyroscope |
||
● High resolution
● Analog output
● Wide Bandwidth
● Low Power Consumption
● High Reliability
● Wide Operating Temperature Range
● Small Size
● Fast Start-Up
● Temperature compensation
| Parameter | KQ1GY101R200 |
| Power supply parameter | |
| Power Voltage | +6V~+20V DC |
| Input Current | <20mA |
| Product performance | |
| Turn-on time | |
| Range | ±200°/s |
| Bias | 0°/s±2°/s |
| Bias stability(1σ)@25°C | ≤30°/h |
| Bias stability (allan deviation) | ≤5°/h |
| Bias repeatability(1σ)@25°C | ≤30°/h |
| Bias temperature sensitivity | ≤2°/s |
| Scale factor nonlinearity | ≤0.05% |
| Resolution | ≤0.01°/s |
| Threshold | ≤0.01°/s |
| Scale factor | 10mV/°/s±1mV/°/s |
| Weight | <100g |
| Size | 21mm×21mm×11mm |
| Environment | |
| Operating temperature | -40°C～+85°C |
| Random vibration | 5g rms |
| Shock | ≥200g |

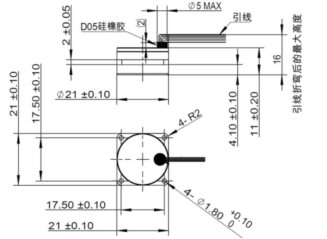

Dimensions
| Seq | Color | Definition |
| 1 | Red | +5VDC |
| 2 | Black | GND |
| 3 | Yellow | Analog output |
| 4 | White | Analog GND |
● Photoelectric pod
● Flight control platform
● Inertial navigation system
● Inertial monitoring system
● Optical, photography and other platforms stable
● Inertial measurement instruments
Our Electronic Gyroscope Sensor is designed with precision to provide reliable performance for your applications. Our support includes detailed product documentation, an extensive online knowledge base, and troubleshooting guides to help you resolve any issues you may encounter.
We are committed to the satisfaction of our customers and strive to provide exceptional after-sales support. Should you have any feedback or suggestions, we welcome your input as it helps us to continuously improve our products and services.
Packing and Shipping:
The Electronic Gyroscope Sensor is housed in a robust, anti-static packaging to ensure the device remains secure and undamaged during transit. The interior of the packaging is lined with a cushioning material that absorbs shocks and vibrations, providing additional protection for the sensitive components of the sensor.
Prior to shipment, each package is sealed and subjected to a thorough inspection to guarantee that the sensor is securely enclosed. The exterior of the packaging is clearly labeled with handling instructions and the package contents to facilitate careful handling and to inform the recipient about the enclosed device.
For shipping, the packaged Electronic Gyroscope Sensor is placed in a larger, durable cardboard box designed to withstand the rigors of transport. This box is further secured with packing tape and, if necessary, additional cushioning materials are added to prevent movement within the box during shipment.
Each shipment includes a detailed packing slip with product information and a unique serial number for inventory tracking and quality control purposes. The package is then dispatched through a reliable courier service with options for tracking and insurance to ensure the Electronic Gyroscope Sensor arrives at its destination promptly and in pristine condition.
