| Output Noise (DC To 100 Hz): | ≤0.05°/sec./√Hz | Scale Factor Over Temperature (Dev. From 22°C Typical): | ≤0.06%/°C |
|---|---|---|---|
| Standard Range Full Scale: | ±50,100,200,500°/sec. | Vibration Survival: | 10 Grms 20 Hz To 2 KHz Random 5 Minutes/axis |
| Storage Temperature: | -55°C To +100°C | Weight: | ≤50g |
| Bias Variation Over Temperature (Dev. From 22°C): | <3.0°/sec. | Full Scale Output (Nominal): | ±5 Vdc |
| High Light: | Impact resistant Quartz Rate Sensor,50g Quartz Rate Sensor |
||

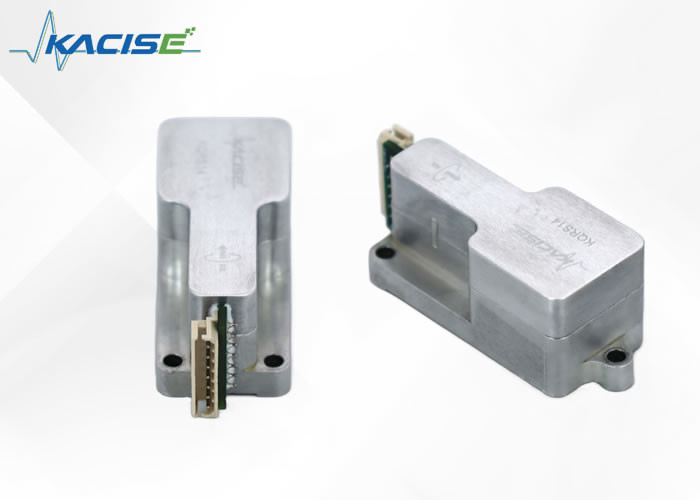

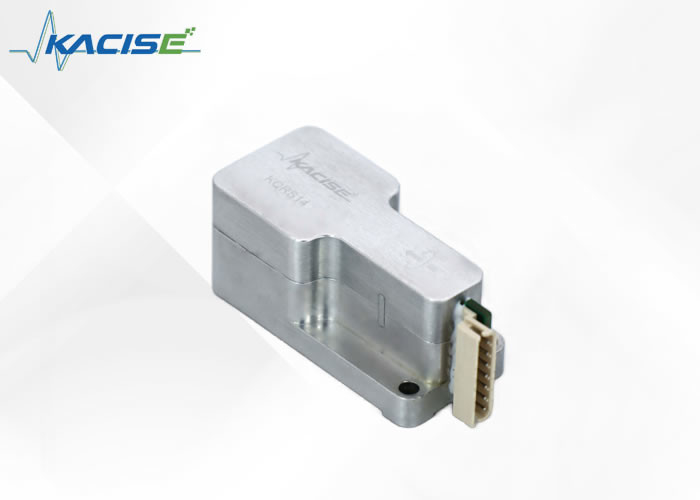

The KQRS14 is a highly useful sensor that can be used to measure angular rotation rates in a compact and durable package. Its design features a single-piece quartz sensing element that provides unparalleled accuracy and reliability.
This sensor is built with internal power regulation, ensuring that it performs consistently and reliably in all conditions. It can be powered with either +12Vdc or +15Vdc, making it suitable for use with a variety of battery types and conventional power supplies.
The KQRS14 comes in two versions, each with unique features to accommodate different use cases. For those who require a high-level output, the +12Vdc version provides a +1.0 to +4.0 Vdc output. The +15Vdc version offers a bipolar output of ±5 Vdc and is designed for use with double-sided power supplies.
● Compact,Lightweight Design
● Wide Temperature Range
● DC Input/High-Level DC Output
● lnternal Power Regulation
● High Reliability
● Shock Resistant
| Parameter | KQRS14-0XXXX-102** | KQRS14-0XXXX-103** |
| Power Requirements | ||
| Input Voltage | +9 to +18 Vdc | +9 to +18 Vdc |
| Input Current | <20 mA | <25 mA (each supply) |
| Performance | ||
| Standard Ranges | ±50,100,200,500°/sec. | |
| Full Scale Output (Nominal) | +1.0 Vdc (-FS) to +4.0 Vdc (+FS) | ±5 Vdc |
| Scale Factor Calibration (at 22°C Typical) | ±2% of value | |
| Scale Factor Over Temperature (Dev. from 22°C Typical) | ≤0.06%/°C | |
| Bias Calibration (at 22°C Typical) | +2.5 ±0.045 Vdc | 0.0±0.075 Vdc |
| Bias Variation over Temperature (Dev. from 22°C) | <3.0°/sec. | |
| Short Term Bias Stability (100 sec at const. temp) | <0.05°/sec, typical | |
| Long Term Bias Stability (1 year) | ≤1.0°/sec. | |
| G Sensitivity (Typical) | ≤0.06°/sec/g | |
| Start-Up Time (Typical) | <2.0 sec | |
| Bandwidth (-90° Phase Shift) | >50 Hz | |
| Non-Linearity (Typical) % Full Range | ≤0.05% of F.R. | |
| Threshold/Resolution | ≤0.004°/sec.* | |
| Output Noise (DC to 100 Hz) | ≤0.05°/sec./√Hz* | ≤0.02°/sec./√Hz* |
| Weight | ≤50 grams | |
| Environments | ||
| Operating Temperature | -40°C to +85°C | |
| Storage Temperature | -55°C to +100°C | |
| Vibration Operating*** | 5 grms 20 Hz to 2 kHz random | |
| Vibration Survival*** | 10 grms 20 Hz to 2 kHz random 5 minutes/axis | |
| Shock | 200g,any axis | |
Dimensions:
KQRS14-0XXXX-102 pin assignment
| Num | Explain | Num | Explain |
| 1 | Power and Signal Ground | 5 | Rate Output |
| 2 | +Vdc Input | 6 | No connection, Leave Open |
| 3 | No connection, Leave Open | 7 | Built-in-test |
| 4 | No connection, Leave Open |
KQRS14-0XXXX-103 pin assignment
| Num | Explain | Num | Explain |
| 1 | -Vdc Input | 5 | Rate Output |
| 2 | +Vdc Input | 6 | No connection, Leave Open |
| 3 | Power Ground | 7 | Built-in-test |
| 4 | Signal Ground |
