| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KQRS14 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Input Voltage: | +9 To +18 Vdc | Shock: | 200g,any Axis |
|---|---|---|---|
| Full Scale Output (Nominal): | ±5 Vdc | Output Noise (DC To 100 Hz): | ≤0.05°/sec./√Hz |
| G Sensitivity (Typical): | ≤1.0°/sec. | Bias Variation Over Temperature (Dev. From 22°C): | <3.0°/sec. |
| Scale Factor Over Temperature (Dev. From 22°C Typical): | ≤0.06%/°C | Scale Factor Calibration (at 22°C Typical): | ±2% Of Value |
| Non-Linearity (Typical) % Full Range: | ≤0.05% Of F.R. | Vibration Survival***: | 10 Grms 20 Hz To 2 KHz Random 5 Minutes/axis |
| High Light: | Quartz MEMS Rate Sensor,10 Grms Vibration Survival MEMS Rate Sensor |
||

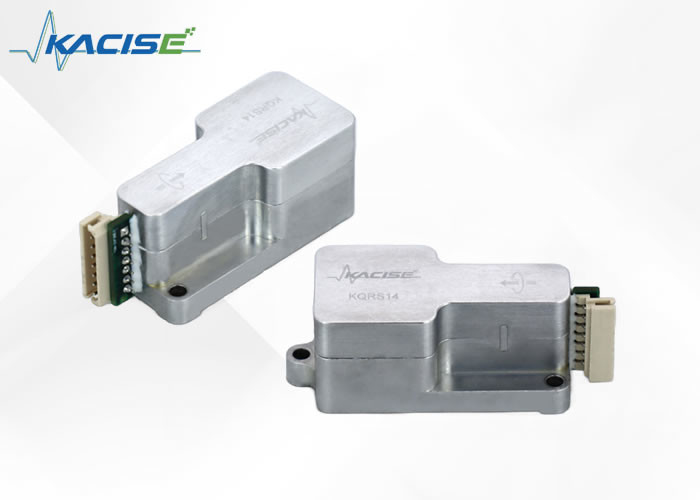

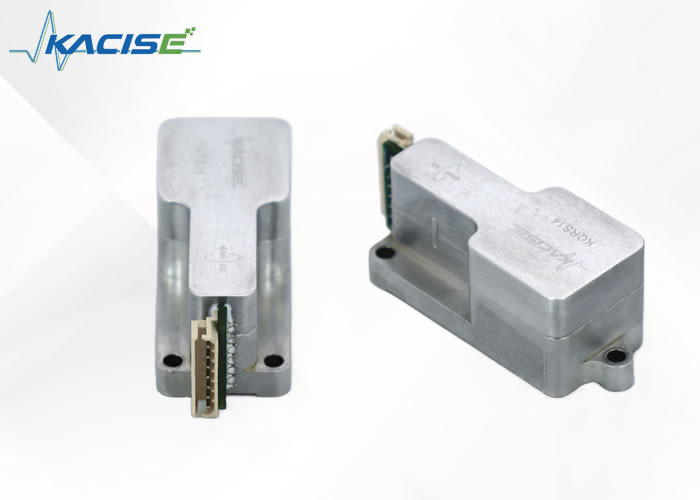

The KQRS14 is a highly versatile solid-state inertial sensor designed for measuring angular rotation rates. One of its key features is its monolithic quartz sensing element, which provides exceptional accuracy and reliability. Additionally, it includes internal power regulation and DC input operation for added convenience.
Depending on your specific needs, there are two versions of the KQRS14 available. The first is the +12Vdc version, which is particularly useful for those who prefer using standard battery power. This version features a high-level +1.0 to +4.0 Vdc output that provides reliable, uncompromised performance.
The second version of the KQRS14 is the plus and minus15 Vdc model. This is ideal for individuals looking for a bipolar output of ±5 Vdc. This version is designed for use with conventional double-sided power supplies.
● Compact,Lightweight Design
● Wide Temperature Range
● DC Input/High-Level DC Output
● lnternal Power Regulation
● High Reliability
● Shock Resistant
| Parameter | KQRS14-0XXXX-102** | KQRS14-0XXXX-103** |
| Power Requirements | ||
| Input Voltage | +9 to +18 Vdc | +9 to +18 Vdc |
| Input Current | <20 mA | <25 mA (each supply) |
| Performance | ||
| Standard Ranges | ±50,100,200,500°/sec. | |
| Full Scale Output (Nominal) | +1.0 Vdc (-FS) to +4.0 Vdc (+FS) | ±5 Vdc |
| Scale Factor Calibration (at 22°C Typical) | ±2% of value | |
| Scale Factor Over Temperature (Dev. from 22°C Typical) | ≤0.06%/°C | |
| Bias Calibration (at 22°C Typical) | +2.5 ±0.045 Vdc | 0.0±0.075 Vdc |
| Bias Variation over Temperature (Dev. from 22°C) | <3.0°/sec. | |
| Short Term Bias Stability (100 sec at const. temp) | <0.05°/sec, typical | |
| Long Term Bias Stability (1 year) | ≤1.0°/sec. | |
| G Sensitivity (Typical) | ≤0.06°/sec/g | |
| Start-Up Time (Typical) | <2.0 sec | |
| Bandwidth (-90° Phase Shift) | >50 Hz | |
| Non-Linearity (Typical) % Full Range | ≤0.05% of F.R. | |
| Threshold/Resolution | ≤0.004°/sec.* | |
| Output Noise (DC to 100 Hz) | ≤0.05°/sec./√Hz* | ≤0.02°/sec./√Hz* |
| Weight | ≤50 grams | |
| Environments | ||
| Operating Temperature | -40°C to +85°C | |
| Storage Temperature | -55°C to +100°C | |
| Vibration Operating*** | 5 grms 20 Hz to 2 kHz random | |
| Vibration Survival*** | 10 grms 20 Hz to 2 kHz random 5 minutes/axis | |
| Shock | 200g,any axis | |
Dimensions:
KQRS14-0XXXX-102 pin assignment
| Num | Explain | Num | Explain |
| 1 | Power and Signal Ground | 5 | Rate Output |
| 2 | +Vdc Input | 6 | No connection, Leave Open |
| 3 | No connection, Leave Open | 7 | Built-in-test |
| 4 | No connection, Leave Open |
KQRS14-0XXXX-103 pin assignment
| Num | Explain | Num | Explain |
| 1 | -Vdc Input | 5 | Rate Output |
| 2 | +Vdc Input | 6 | No connection, Leave Open |
| 3 | Power Ground | 7 | Built-in-test |
| 4 | Signal Ground |
