| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KQRS14 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Threshold/Resolution: | ≤0.004°/sec | Scale Factor Calibration (at 22°C Typical): | ±2% Of Value |
|---|---|---|---|
| Start-Up Time (Typical): | <2.0 Sec | Full Scale Output (Nominal): | ±5 Vdc |
| G Sensitivity (Typical): | ≤1.0°/sec. | Non-Linearity (Typical) % Full Range: | ≤0.05% Of F.R. |
| Standard Range Full Scale: | ±50,100,200,500°/sec. | Shock: | 200g,any Axis |
| High Light: | DC Input Quartz MEMS Gyroscope,200g Quartz MEMS Gyroscope,Speed Response Quartz MEMS Gyroscope |
||

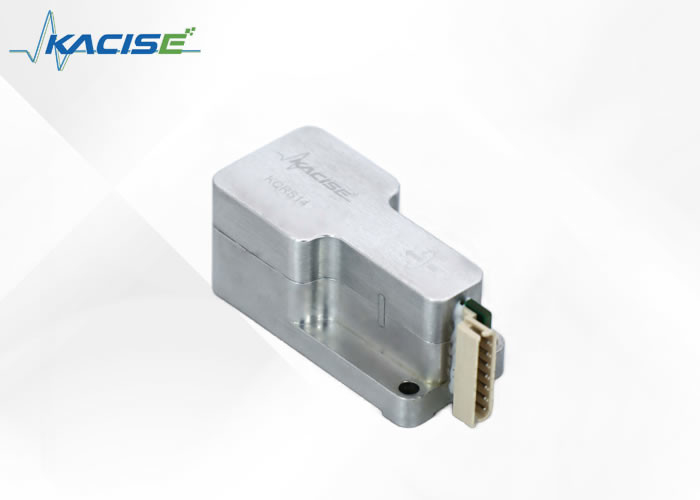

The KQRS14 is an advanced inertial sensor designed to measure angular rotation rates. This compact and rugged sensor features a monolithic quartz sensing element, which ensures accurate and reliable measurement performance even in harsh environments. Additionally, the sensor incorporates internal power regulation, which ensures reliable operation over wide temperature and power supply ranges.
The KQRS14 comes in two different versions to meet different application requirements. The first version is a +12Vdc model which provides a high-level output voltage range of +1.0 to +4.0 Vdc. It operates on standard battery power and is an excellent choice for portable or battery-operated applications where power consumption is a concern.
The second version is a plus and minus15 Vdc model that provides a high-level bipolar output of ±5 Vdc. This model is designed for use with conventional double-sided power supplies and is ideal for applications where a wider output voltage range is required.
● Compact,Lightweight Design
● Wide Temperature Range
● DC Input/High-Level DC Output
● lnternal Power Regulation
● High Reliability
● Shock Resistant
| Parameter | KQRS14-0XXXX-102** | KQRS14-0XXXX-103** |
| Power Requirements | ||
| Input Voltage | +9 to +18 Vdc | +9 to +18 Vdc |
| Input Current | <20 mA | <25 mA (each supply) |
| Performance | ||
| Standard Ranges | ±50,100,200,500°/sec. | |
| Full Scale Output (Nominal) | +1.0 Vdc (-FS) to +4.0 Vdc (+FS) | ±5 Vdc |
| Scale Factor Calibration (at 22°C Typical) | ±2% of value | |
| Scale Factor Over Temperature (Dev. from 22°C Typical) | ≤0.06%/°C | |
| Bias Calibration (at 22°C Typical) | +2.5 ±0.045 Vdc | 0.0±0.075 Vdc |
| Bias Variation over Temperature (Dev. from 22°C) | <3.0°/sec. | |
| Short Term Bias Stability (100 sec at const. temp) | <0.05°/sec, typical | |
| Long Term Bias Stability (1 year) | ≤1.0°/sec. | |
| G Sensitivity (Typical) | ≤0.06°/sec/g | |
| Start-Up Time (Typical) | <2.0 sec | |
| Bandwidth (-90° Phase Shift) | >50 Hz | |
| Non-Linearity (Typical) % Full Range | ≤0.05% of F.R. | |
| Threshold/Resolution | ≤0.004°/sec.* | |
| Output Noise (DC to 100 Hz) | ≤0.05°/sec./√Hz* | ≤0.02°/sec./√Hz* |
| Weight | ≤50 grams | |
| Environments | ||
| Operating Temperature | -40°C to +85°C | |
| Storage Temperature | -55°C to +100°C | |
| Vibration Operating*** | 5 grms 20 Hz to 2 kHz random | |
| Vibration Survival*** | 10 grms 20 Hz to 2 kHz random 5 minutes/axis | |
| Shock | 200g,any axis | |

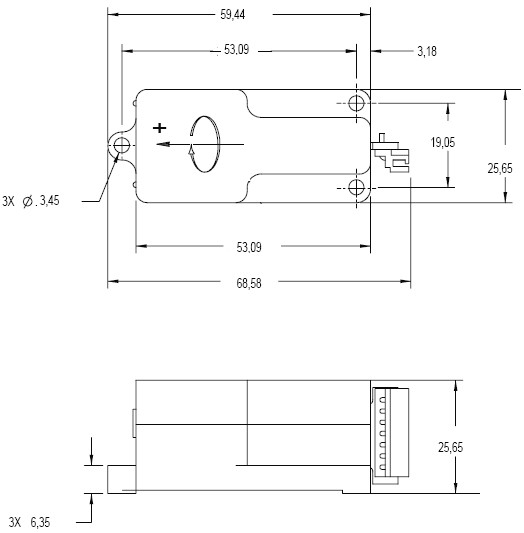

Dimensions:
KQRS14-0XXXX-102 pin assignment
| Num | Explain | Num | Explain |
| 1 | Power and Signal Ground | 5 | Rate Output |
| 2 | +Vdc Input | 6 | No connection, Leave Open |
| 3 | No connection, Leave Open | 7 | Built-in-test |
| 4 | No connection, Leave Open |
KQRS14-0XXXX-103 pin assignment
| Num | Explain | Num | Explain |
| 1 | -Vdc Input | 5 | Rate Output |
| 2 | +Vdc Input | 6 | No connection, Leave Open |
| 3 | Power Ground | 7 | Built-in-test |
| 4 | Signal Ground |
