| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KQ3GY |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Working Temperature: | -40℃～+65℃ | Scale Factor Nonlinearity: | ≤200 |
|---|---|---|---|
| Random Vibration: | 6.06g Rms | Threshold: | ≤0.005 |
| Random Walk: | ≤0.25 | Measurement Range: | ±100 |
| Input Voltage: | 5±0.2 Vdc | Bandwidth: | ≥140 |
| High Light: | Wide Temperature Range MEMS Gyroscope Sensor,Threshold 0.005 MEMS Gyroscope Sensor,Precision MEMS Gyroscope Sensor |
||

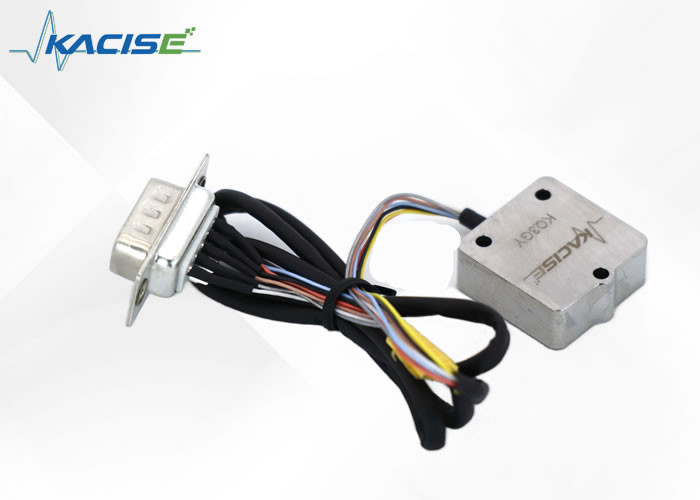

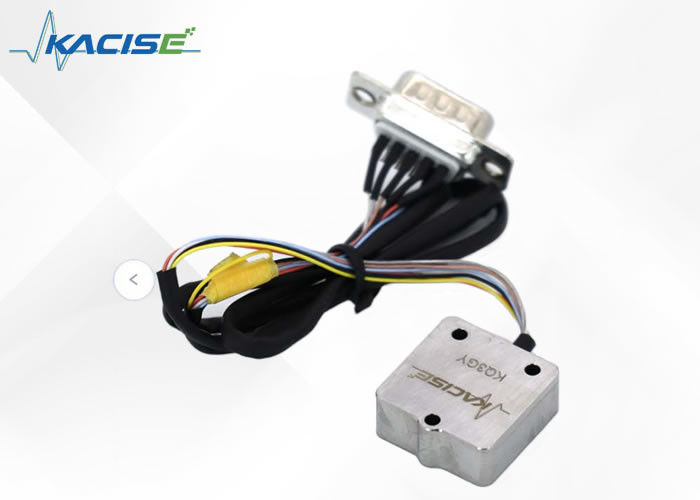

The KQ3GY gyroscope is a cutting-edge device developed using quartz MEMS technology. This innovative technology allows the device to sense the angular velocities of multiple axes at the same time. The axes can be configured according to customer needs. The device uses a serial port to output digital information.
MEMS technology is an incredible technology that integrates various micro-devices and systems. These systems include micro-sensors, micro-actuators, micro-mechanical structures, micro-power and micro-energy, signal processing and control circuit, high-performance electronic integrated device, interface, and communication. MEMS technology allows the development of independent intelligent systems that can be mass-produced. The systems are small in size, with a system size of a few millimeters or even smaller. The internal structures of these systems are generally in the order of microns or even nanometers.
MEMS technology has various applications, including MEMS accelerometers, MEMS optical sensors, MEMS pressure sensors, MEMS gyroscopes, MEMS humidity sensors, MEMS gas sensors, and their integration products. These products have revolutionized the way we live and interact with technology.
● Large-scale production
● Short startup time
● Wide operating temperature range
● Low power consumption
● High reliability
● Small size and light weight
● Serial output
| Parameter | KQ3Gy |
| Power Requirements | |
| Input Voltage | 5±0.2 Vdc |
| Input Current | < 50 mA |
| Performance | |
| Measurement range | ±100 |
| Bias | ≤0.03 |
| Bias stability | ≤20 |
| Bias repeatability | ≤20 |
| Scale factor nonlinearity | ≤200 |
| random walk | ≤0.25 |
| Threshold | ≤0.005 |
| Bandwidth | ≥140 |
| Acceleration correlation | ≤0.01 |
| Cross coupling | ≤1 |
| Environments | |
| Working temperature | -40℃～+65℃ |
| Random vibration | 6.06g rms |
Dimensions:
Unit:mm
Airborne instrument measurement
Airborne instrument measurement refers to the measurement of various parameters such as temperature, pressure, speed, and altitude of an aircraft during flight. This process is essential to ensure that the aircraft is flying safely and efficiently.
Robot
A robot is a machine that can carry out tasks automatically, often with the help of artificial intelligence. They can be used in various industries such as manufacturing, healthcare, and even aerospace. In the aerospace industry, robots can be used for tasks such as assembly, maintenance, and inspection of aircraft components.
Automated testing
Automated testing refers to the use of software tools to execute tests and compare actual results with expected results. This method helps to save time and reduce the risk of human error, making it ideal for testing complex systems. In the aerospace industry, automated testing can be used to test various components and systems of an aircraft, ensuring that they are functioning correctly.
Attitude reference system
An attitude reference system is a device that measures and maintains the orientation of an aircraft in flight. This system is essential for navigation, control, and stability during flight and is often used in conjunction with other systems such as the control system and flight test equipment.
Control system
A control system is a system that manages the behavior of another system, often with the help of feedback. In the aerospace industry, control systems are used to manage the behavior of aircraft components such as engines, wings, and flaps, allowing for safe and efficient flight.
Flight test
Flight test refers to the process of testing an aircraft in flight to gather data on its performance and safety. This process is essential to ensure that an aircraft can fly safely and efficiently, and can include testing various systems such as the control system and attitude reference system.
Platform stability
Platform stability refers to the ability of an aircraft to maintain a stable position during flight. This is essential for safe and efficient flight and can be achieved through the use of various systems such as the control system and attitude reference system.
Our Electronic Gyroscope Sensor is designed with precision to provide reliable performance for your applications. Our support includes detailed product documentation, an extensive online knowledge base, and troubleshooting guides to help you resolve any issues you may encounter.
We are committed to the satisfaction of our customers and strive to provide exceptional after-sales support. Should you have any feedback or suggestions, we welcome your input as it helps us to continuously improve our products and services.
Product Packaging:
The Electronic Gyroscope Sensor product will be packaged in a sturdy cardboard box with foam inserts to ensure safe transport. The product will be sealed in a plastic bag to protect it from moisture and dust. The box will be labeled with the product name, brand, and barcode for easy identification.
Shipping:
The product will be shipped via standard ground shipping. We will ensure that the product is shipped within 2 business days after receiving the order. The shipping cost will be calculated based on the weight and destination of the package. Customers will receive a tracking number via email once the product has been shipped.
