| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSIMU01D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Pitch Accuracy: | 0.3deg | Size: | Ф39.5×22mm Ф39.5×28.5mm 26.5×26.5×23.5mm |
|---|---|---|---|
| Output Interface: | Digital RS422 | Bias Stability: | 170g±10g |
| Weight: | ≤100g | Operating Temperature: | -40℃～+70℃ |
| Bias: | ≤±0.1deg/s | Supply Voltage: | 5DC±5%V |
| High Light: | 0.3deg Accuracy Inertial Measurement Unit,Universal Digital Inertial Measurement Unit |
||

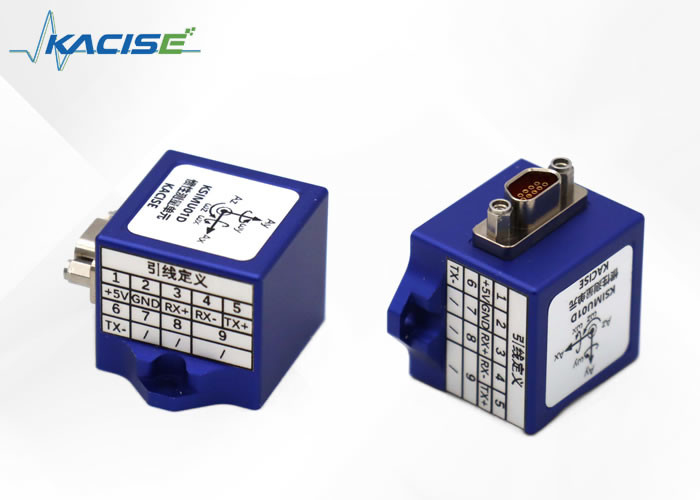

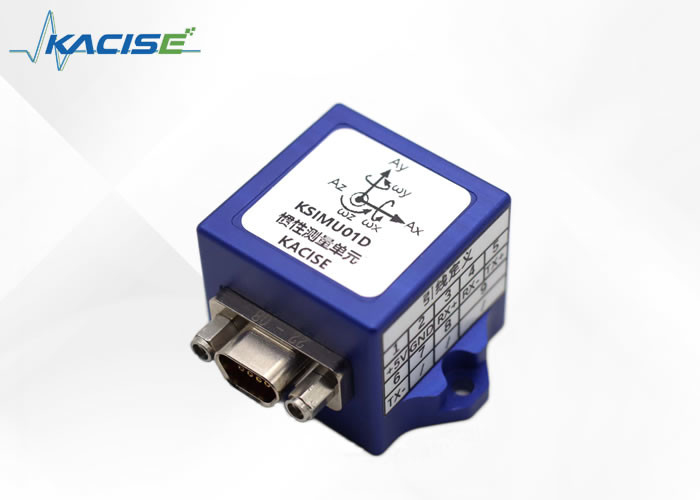

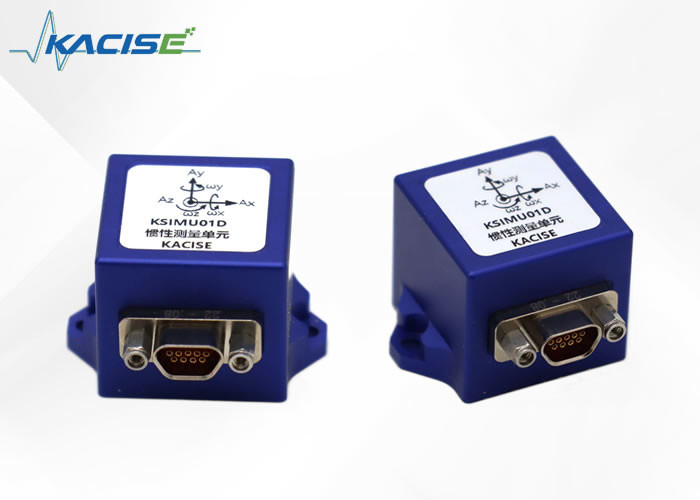

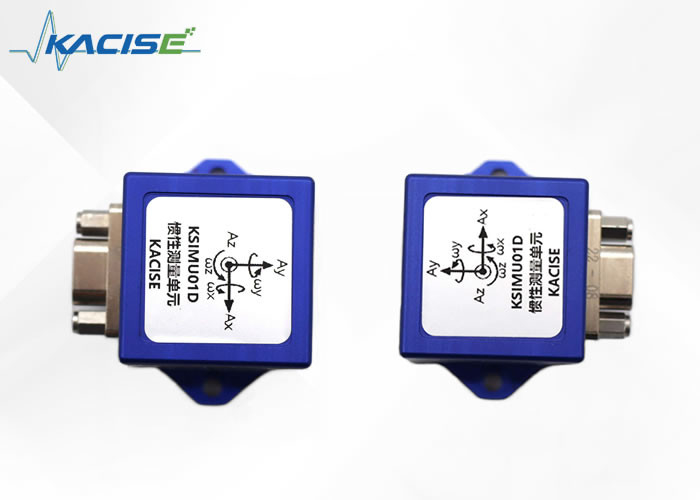

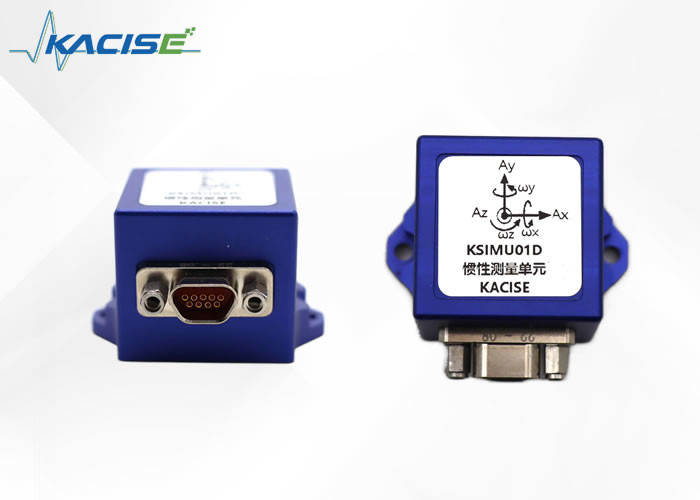

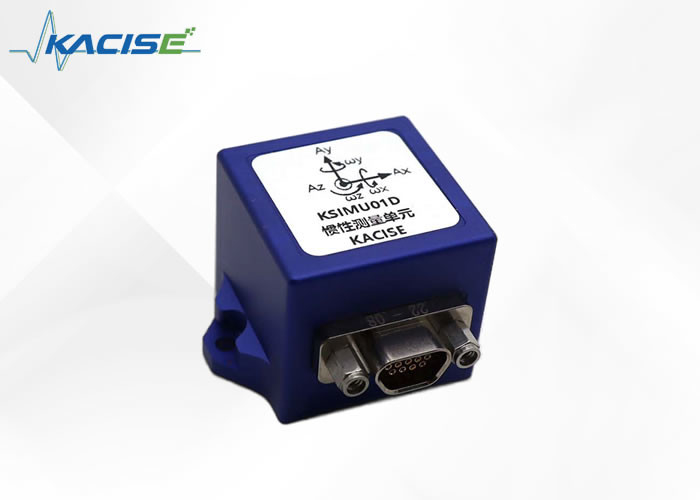

The KSIMU01D inertial measurement unit is a state-of-the-art device that is ideal for measuring navigation, control, and dynamic measurements. It is designed to be highly effective and affordable, making it accessible to a wide range of users. Additionally, this device has a sealed design that allows for accurate measurement of angular velocity and acceleration even in harsh environments.
The KSIMU01D is also known for its other advanced features such as low power consumption, wide operating temperature range, wide bandwidth, small size, and fast startup. These characteristics make the device adaptable and efficient while saving users both money and time.
The device is recommended for use in a broad range of applications including automotive electronics, aircraft guidance and control, attitude reference systems, platform stabilization, robot, antenna stabilization, and many others. This diversity of potential usage scenarios further highlights the versatility of this product and its effectiveness in various fields.
● Low cost, small size
● Operating temperature -40°C ~ +85°C
● Wide power input, digital output
● Strong structure and reliability
| Parameter | KSIMU01D | |
| Power supply parameter | ||
| Supply voltage | 5DC±5%V | |
| Power consumption | ≤0.5W @5V DC | |
| Product performance | ||
| Size |
Ф39.5×22mm Ф39.5×28.5mm 26.5×26.5×23.5mm |
|
| Attitude | Weight | ≤100g |
| Heading | ±180deg | |
| Roll | ±180deg | |
| Pitch | ±90deg | |
| Pitch Accuracy | 0.3deg | |
| Gyroscope | Full Scale | ±200(optional)deg/s |
| bias | ≤±0.1deg/s | |
| bias stability | ≤10deg/s | |
| bias repeatability | ≤0.3deg/s | |
| Nonlinearity | ≤0.1% | |
| Accelerometer | Full Scale | ≤0.3°/h |
| bias | ≥500Hz | |
| bias stability | 170g±10g | |
| Nonlinearity | ≤0.1% | |
| MTBF | 10Kh MTBF | |
| Output Interface | Digital RS422 | |
| Update rate(user settable) | 200 Hz@460800 | |
| Environment | ||
| Operating temperature | -40℃～+70℃ | |
| Storage temperature | -55℃～+85℃ | |
| Vibration | 6 g @ 20～2000 Hz | |
| Shock | 8000 g , 0.5 ms, 1/2 Sine | |
The use of electronics in the automotive industry has been on the rise in recent years. Electronic systems are now used for various applications in vehicles including engine management, safety systems, and entertainment. These systems improve the performance, safety, and overall driving experience of the vehicle.
Aircraft guidance and control systems are critical for the safe operation of an aircraft. These systems include autopilots, flight management systems, and navigation systems. These systems use advanced algorithms and sensors to provide accurate information to the pilot and provide autonomous control of the aircraft.
An attitude reference system is used to determine the orientation of an aircraft or spacecraft relative to the earth's surface. This system uses sensors such as accelerometers, gyroscopes, and magnetometers to provide accurate information about the aircraft's attitude. This information is used to keep the aircraft stable and ensure proper operation of the guidance and control systems.
Platform stabilization systems are used to keep a platform, such as a camera or antenna, stable and pointing in a specific direction. These systems use a combination of sensors and actuators to adjust the position of the platform and ensure it stays in the desired position. This technology is used in applications such as remote sensing, surveillance, and satellite communications.
Robot and antenna stabilization systems use similar technology to platform stabilization systems to keep a robotic arm, camera, or antenna stable and in the desired location. These systems are essential for applications such as space exploration, remote sensing, and communication. The use of these systems ensures accurate and stable data collection and transmission.
Welcome to our Technical Support and Services for the Gyroscope Sensor. Our dedicated team is here to assist you with any technical issues or inquiries you may have regarding the use, installation, or maintenance of your gyroscope sensor. We are committed to providing you with the best possible support to ensure your product functions optimally.
Our support includes detailed product documentation, frequently asked questions (FAQs), and troubleshooting guides designed to help you resolve common issues quickly. For more complex or specific concerns, our technical support team is ready to provide personalized assistance.
If you require further assistance, please refer to the 'Contact Us' section of our website (contact information excluded as per request) where you can find additional resources and support channels to get in touch with our professional technical support team.
Thank you for choosing our Electronic Gyroscope Sensor. We look forward to serving you and ensuring the success of your projects
The Electronic Gyroscope Sensor is meticulously packaged in an anti-static bag to ensure protection against electrostatic discharge (ESD). The sensor is then securely encased in a custom-fit, high-density foam mold, which provides superior shock absorption during transit. This foam is placed within a durable, branded cardboard box that shields the sensor from environmental factors and potential damage while in transit.
The exterior of the box features clear labeling with the product name, handling instructions, and a barcode for easy tracking. All our packages are sealed with tamper-evident tape, offering an additional layer of security.
For shipping, the Electronic Gyroscope Sensor is dispatched via a trusted courier service to ensure timely and safe delivery. We include insurance for the full value of the product, offering peace of mind and protection for your investment. Tracking information is provided as soon as the package is dispatched, allowing for real-time monitoring of the shipment until it arrives at its destination.
