| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSIMU01D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Pitch: | ±90deg | Size: | Ф39.5×22mm Ф39.5×28.5mm 26.5×26.5×23.5mm |
|---|---|---|---|
| Pitch Accuracy: | 0.3deg | Power Consumption: | ≤0.5W @5V DC |
| Bias: | ≤±0.1deg/s | Shock: | 8000 G , 0.5 Ms, 1/2 Sine |
| Nonlinearity: | ≤0.1% | Output Interface: | Digital RS422 |
| High Light: | 170g Electronic Gyroscope Sensor,RS422 Electronic Gyroscope Sensor |
||

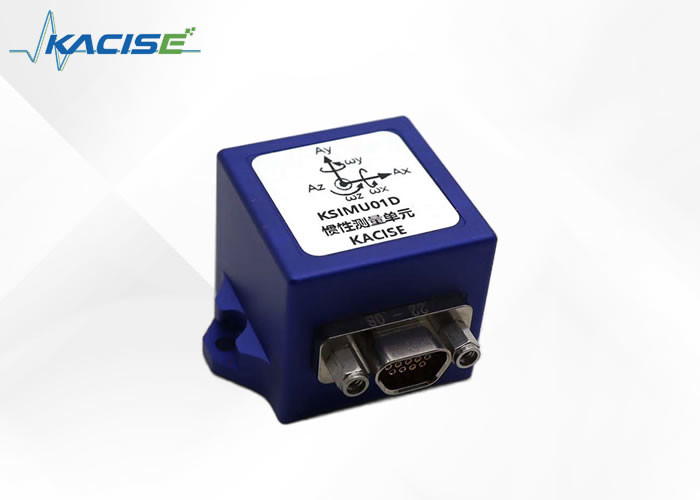

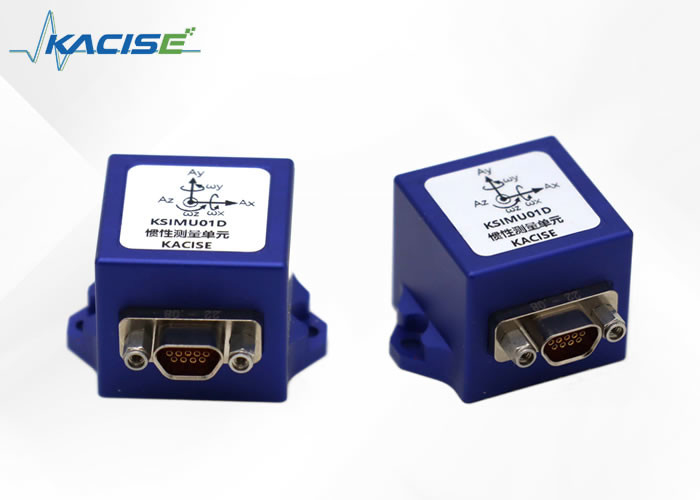

The KSIMU01D Inertial Measurement Unit is a device that boasts high-performance and low-cost. It is primarily ideal for navigation, control, and dynamic measurement purposes. Thanks to its sealed design, this series of products is capable of collecting reliable and accurate data concerning the angular velocity and acceleration of a moving carrier even in the harshest of environments.
The KSIMU01D includes various features that make it an efficient device to use. The first is its low power consumption, making it practical to run without causing high energy consumption. Second, the device's wide operating temperature range allows it to work correctly, even in unfavorable environmental conditions. Third, the unit offers a broad bandwidth and fast start-up, ensuring accurate measurements, even when dealing with fast movements. Finally, the KSIMU01D's small size makes it easy to install and maintain.
Given its attractive features, KSIMU01D has proven to be a versatile device in various industries. For instance, it has applications in automotive electronics, where it helps to enhance the accuracy and reliability of control systems on vehicles. Also, aircraft guidance and control require precise sensor data, a requirement that the KSIMU01D precisely meets. Attitude reference system, platform stabilization, and antenna stabilization systems rely on this device to operate optimally. Finally, the device is instrumental in the smooth running of robots in industrial settings.
● Low cost, small size
● Operating temperature -40°C ~ +85°C
● Wide power input, digital output
● Strong structure and reliability
| Parameter | KSIMU01D | |
| Power supply parameter | ||
| Supply voltage | 5DC±5%V | |
| Power consumption | ≤0.5W @5V DC | |
| Product performance | ||
| Size |
Ф39.5×22mm Ф39.5×28.5mm 26.5×26.5×23.5mm |
|
| Attitude | Weight | ≤100g |
| Heading | ±180deg | |
| Roll | ±180deg | |
| Pitch | ±90deg | |
| Pitch Accuracy | 0.3deg | |
| Gyroscope | Full Scale | ±200(optional)deg/s |
| bias | ≤±0.1deg/s | |
| bias stability | ≤10deg/s | |
| bias repeatability | ≤0.3deg/s | |
| Nonlinearity | ≤0.1% | |
| Accelerometer | Full Scale | ≤0.3°/h |
| bias | ≥500Hz | |
| bias stability | 170g±10g | |
| Nonlinearity | ≤0.1% | |
| MTBF | 10Kh MTBF | |
| Output Interface | Digital RS422 | |
| Update rate(user settable) | 200 Hz@460800 | |
| Environment | ||
| Operating temperature | -40℃～+70℃ | |
| Storage temperature | -55℃～+85℃ | |
| Vibration | 6 g @ 20～2000 Hz | |
| Shock | 8000 g , 0.5 ms, 1/2 Sine | |
Automotive electronics, aircraft guidance and control, attitude reference system, platform stabilization, robot, and antenna stabilization are all important technological advancements in the field of engineering. These technologies contribute to the smooth functioning and control of various machines and systems.
Automotive electronics involve the application of electronics and computing in automobiles. This technology includes features such as entertainment systems, safety systems, and performance monitoring systems.
Aircraft guidance and control ensure the safety of passengers and efficient travel of aircraft. This technology relies on accurate navigation, autopilots, and control systems.
The attitude reference system is an essential component of navigation and control systems in various machines, including aircraft and ships. This system provides the necessary information about the orientation of the machine, allowing the control system to make accurate decisions.
Platform stabilization is necessary for the successful operation of machines that work in difficult terrain, such as off-road vehicles, construction equipment, and military vehicles. This technology ensures that the machine remains stable during movement and while performing tasks.
Robotics and antenna stabilization are crucial to the smooth functioning of various modern industrial operations. Robots are utilized in manufacturing, packaging, and material handling, whereas antenna stabilization is required in the communications industry, such as in satellite and space communication systems.
Welcome to our Technical Support and Services for the Gyroscope Sensor. Our dedicated team is here to assist you with any technical issues or inquiries you may have regarding the use, installation, or maintenance of your gyroscope sensor. We are committed to providing you with the best possible support to ensure your product functions optimally.
Our support includes detailed product documentation, frequently asked questions (FAQs), and troubleshooting guides designed to help you resolve common issues quickly. For more complex or specific concerns, our technical support team is ready to provide personalized assistance.
If you require further assistance, please refer to the 'Contact Us' section of our website (contact information excluded as per request) where you can find additional resources and support channels to get in touch with our professional technical support team.
Thank you for choosing our Electronic Gyroscope Sensor. We look forward to serving you and ensuring the success of your projects
The Electronic Gyroscope Sensor is meticulously packaged in an anti-static bag to ensure protection against electrostatic discharge (ESD). The sensor is then securely encased in a custom-fit, high-density foam mold, which provides superior shock absorption during transit. This foam is placed within a durable, branded cardboard box that shields the sensor from environmental factors and potential damage while in transit.
The exterior of the box features clear labeling with the product name, handling instructions, and a barcode for easy tracking. All our packages are sealed with tamper-evident tape, offering an additional layer of security.
For shipping, the Electronic Gyroscope Sensor is dispatched via a trusted courier service to ensure timely and safe delivery. We include insurance for the full value of the product, offering peace of mind and protection for your investment. Tracking information is provided as soon as the package is dispatched, allowing for real-time monitoring of the shipment until it arrives at its destination.
