| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSIMU01D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Supply Voltage: | 5DC±5%V | Shock: | 8000 G , 0.5 Ms, 1/2 Sine |
|---|---|---|---|
| Bias Repeatability: | ≤0.3deg/s | Pitch Accuracy: | 0.3deg |
| Nonlinearity: | ≤0.1% | Storage Temperature: | -55℃～+85℃ |
| Bias: | ≥500Hz | Full Scale: | ≤0.3°/h |
| Output Interface: | Digital RS422 | ||
| High Light: | Automotive Electronic Gyroscope Sensor,RS422 Electronic Gyroscope Sensor |
||

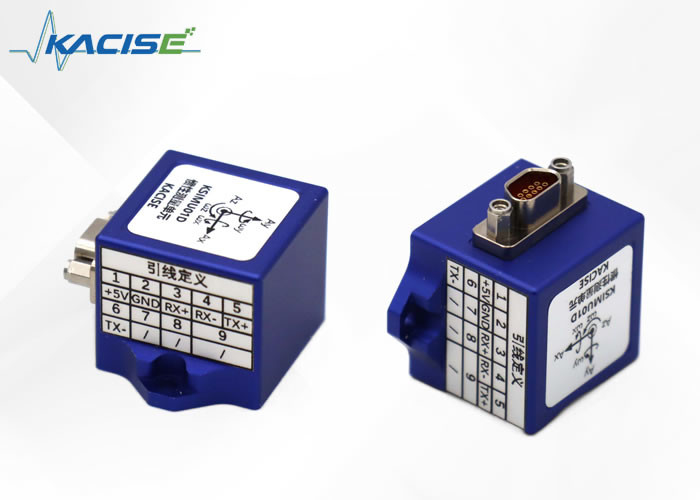

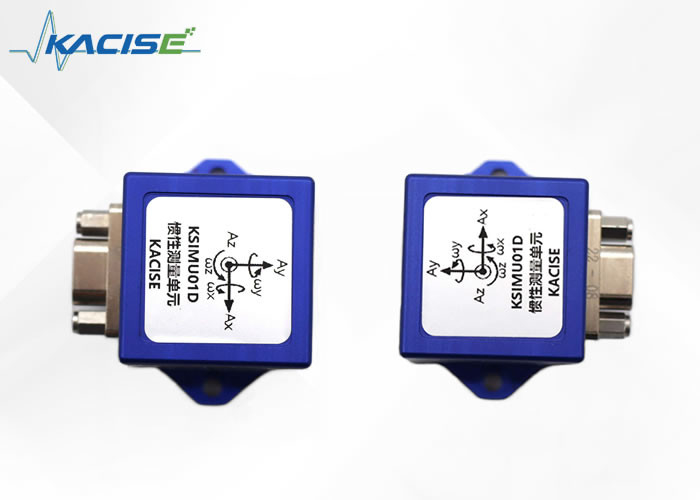

The KSIMU01D inertial Measurement Unit is a top-of-the-line, yet affordable inertial measurement device perfect for navigation, control and dynamic measurement purposes. Its sealed design allows for precise measurements of angular velocity and acceleration even in the harshest environments.
The KSIMU01D is equipped with numerous features including low power consumption, wide operating temperature range, wide bandwidth, small size and fast startup. These qualities make it a versatile tool that can be used in a variety of systems such as automotive electronics, aircraft guidance and control, attitude reference systems, platform stabilization, robots, antenna stabilization, and more.
● Low cost, small size
● Operating temperature -40°C ~ +85°C
● Wide power input, digital output
● Strong structure and reliability
| Parameter | KSIMU01D | |
| Power supply parameter | ||
| Supply voltage | 5DC±5%V | |
| Power consumption | ≤0.5W @5V DC | |
| Product performance | ||
| Size |
Ф39.5×22mm Ф39.5×28.5mm 26.5×26.5×23.5mm |
|
| Attitude | Weight | ≤100g |
| Heading | ±180deg | |
| Roll | ±180deg | |
| Pitch | ±90deg | |
| Pitch Accuracy | 0.3deg | |
| Gyroscope | Full Scale | ±200(optional)deg/s |
| bias | ≤±0.1deg/s | |
| bias stability | ≤10deg/s | |
| bias repeatability | ≤0.3deg/s | |
| Nonlinearity | ≤0.1% | |
| Accelerometer | Full Scale | ≤0.3°/h |
| bias | ≥500Hz | |
| bias stability | 170g±10g | |
| Nonlinearity | ≤0.1% | |
| MTBF | 10Kh MTBF | |
| Output Interface | Digital RS422 | |
| Update rate(user settable) | 200 Hz@460800 | |
| Environment | ||
| Operating temperature | -40℃～+70℃ | |
| Storage temperature | -55℃～+85℃ | |
| Vibration | 6 g @ 20～2000 Hz | |
| Shock | 8000 g , 0.5 ms, 1/2 Sine | |
Advances in technology have led to the development of automotive electronics. These types of electronics are designed to improve the functionality of vehicles. Automotive electronics include a wide range of devices and systems such as navigation systems, climate control systems, and entertainment systems.
Aircraft guidance and control systems are designed to improve the safety and efficiency of airplanes. These systems rely on sensors and electronics to provide pilots with accurate information about the status of the aircraft. The guidance system helps pilots to navigate the plane while the control system helps them to maintain the desired altitude and speed.
An attitude reference system is used in aerospace engineering to provide orientation information for spacecraft, airplanes, and satellites. The system typically includes a gyroscope and accelerometer that can determine the orientation of the object in relation to the earth's gravity field. This information is used to control the roll, pitch, and yaw of the object.
Platform stabilization is used to maintain the stability of a moving object such as a camera or telescope. The stabilization system uses feedback from sensors to correct for unwanted movement. This ensures that the object being observed remains in a stable position, allowing for better data collection and analysis.
Robot and antenna stabilization systems are designed to maintain the position of these objects in relation to their environment. These systems use sensors and electronics to detect any movement or changes in the environment and make the necessary adjustments to keep the object stable. This is important for tasks such as remote sensing and communication.
Our Electronic Gyroscope Sensor is designed with precision to provide reliable performance for your applications. Our support includes detailed product documentation, an extensive online knowledge base, and troubleshooting guides to help you resolve any issues you may encounter.
We are committed to the satisfaction of our customers and strive to provide exceptional after-sales support. Should you have any feedback or suggestions, we welcome your input as it helps us to continuously improve our products and services.
Product Packaging:
The Electronic Gyroscope Sensor comes securely packaged in an anti-static bag to prevent any electrostatic discharge during handling. The bag is then placed in a custom-fit foam insert that snugly holds the sensor in place, ensuring maximum protection against physical shocks and vibrations. This foam is encased in a sturdy cardboard box which is sealed and labeled with the product information and handling instructions. The packaging has been designed to be compact while offering the best possible protection for the sensitive electronics inside.
Shipping:
Once the Electronic Gyroscope Sensor is packaged, it is ready for shipping. The boxed product is placed in a secondary, larger cardboard box with additional cushioning material to fill any void space, minimizing movement during transit. Fragile stickers are applied to the outer box to alert couriers that the contents require careful handling. The package is then sealed with heavy-duty packing tape and dispatched using a reliable shipping service that provides a tracking number. Customers will receive their tracking information via email to monitor their package's journey until delivery.
