High Precision Inertial Measurement Unit Non-linearITy 0.1% Noise DensITy 200 Μg/√Hz for Ship Monitoring

Product Description

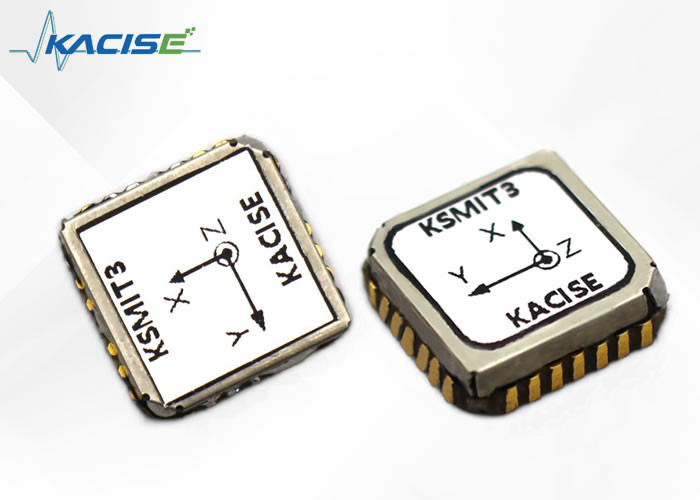

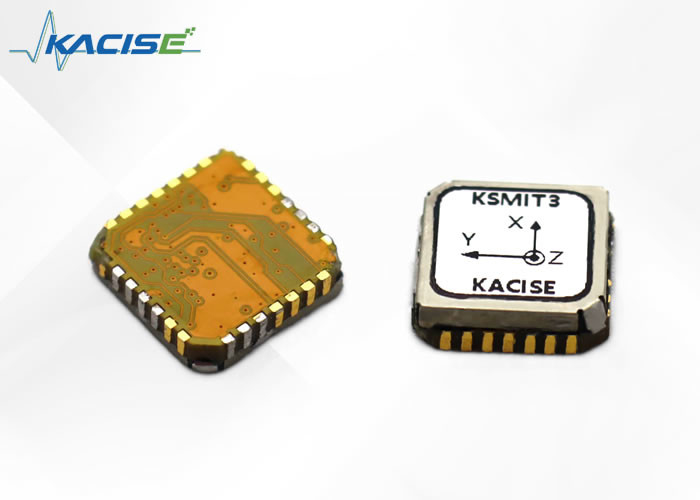

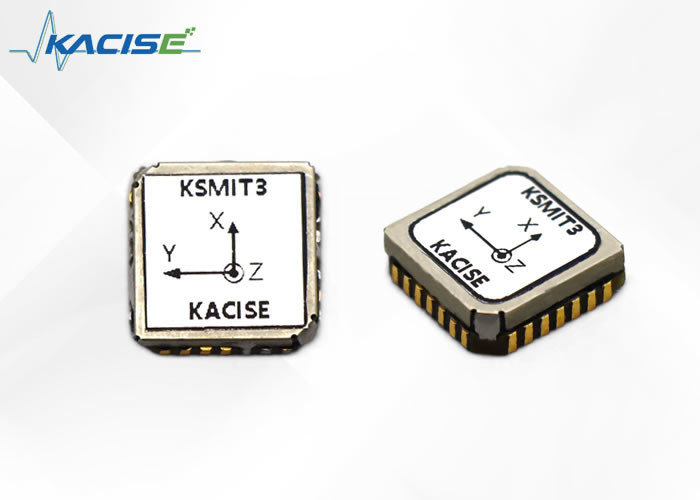

KSMIT3 is a state-of-the-art Attitude Heading and Reference System that comes as a fully functional self-contained module. Its design is based on a limited number of hardware components, which makes it easy to integrate into any system.

This innovative system boasts a fully documented and industry-standard communication protocol, which allows for the customization of data messages in terms of frequency, output format, and data. The signal is processed entirely on the board, which only uses a small amount of resources on the host. This feature makes KSMIT3 ideal for use in simple MCU operating environments.

KSMIT3 features high accuracy under dynamic conditions with flipping and pitching accuracy of 1 degree RMS, as well as a deflection accuracy of 2 degrees RMS. Its output is highly stable, making it perfect for use in the control and stabilization of any object or navigation, such as drones.



Features





Technical Parameters





ITEM		PARAMETERS (TYPICAL VALUES)
ATTITUDE ACCURACY	Yaw accuracy (dynamic)	2deg (rms)
	Roll / pITch accuracy (dynamic)	1deg (rms)
GYROSCOPES	Full scale	±2000°/s
	In-run bias stabilITy	10°/h
	Non-linearITy	0.1%
	Scale Factor variation	0.05%
	g-SensITivITy	0.1°/s/g
	Noise densITy	0.01º/s/√Hz
	Bandwidth (-3dB)	180Hz
ACCELEROMETERS	Full scale	±16g
	In-run bias stabilITy	0.1mg
	Non-linearITy	0.5%
	Scale Factor variation	0.05%
	Noise densITy	200 μg/√Hz
	Bandwidth (-3dB)	180
MAGNETOMETER	Full scale	6gauss
	Non-linearITy	0.1%
	Resolution	120ugauss
	Noise (rms)	50ugauss
INTERFACES	Supply voltage	3.3v DC
	serial port communication	TTL
	Output frequency	100hz@230400 baud rate



Frames of reference



The KSMIT3 uses a right-handed coordinate system and the default sensor frame is defined as shown in Figure 13. For a more exact location of the sensor frame origin, refer to the Hardware Integration manual. Some of the commonly used data outputs wITh their output reference coordinate system are listed in Figure 1.

Figure 1 Default Sensor Fixed Coordinate System for KSMIT3 Module

Block diagram

Figure 2:KSMIT3 module diagram



User communication protocol



The baud rate is 115200bps, 230400bps, and 460800bps. Data bIT 8, stop bIT 1, no check bIT. High bytes come first and low bytes come last. Data update frequency f=100Hz. The default baud rate is 230400bps.

Number Of Bytes	Name	Byte Type	Magnifi-cation	Range	UnIT	Description
1~2	Frame Header	U,2				0XAA 71
3	Frame Format Number	Fixed Value 3=0x03
4	Communication Frame Length	Fixed Value 100=0x64
5~13	Gyro	S,3*3	1e-4	±838.8608	°/s	X/Y/Z Right/Front/Upper
14~22	Acc	S,3*3	1e-5	±83.88608	g	X/Y/Z Right/Front/Upper
23~28	Magn	S,3*2	1e-2	±327.68	uT	X/Y/Z Right/Front/Upper
29~31	Hbar	S,1*3	1e-2	±83886.08	mbar	Barometer
32	Flag	U,1				BIT1-Magnetic Valid Mark 1- Valid BIT2-Barometric Valid Flag 1- Valid BIT3- GPS_exist GPS Information exIT or no 0- No GPS Information 1- GPS Information Available BIT4-GPS Information Valid Flag 1- Valid BIT5-8 Zero Filling
33~40	System Reserved Words
41~49	GPS_Vele/N/U	S,3*3	1e-4	±838.8608	m/s	GPS East/North/Sky Speed
50~60	GPS_Lon/Lan	S,2*4	1e-7	±214.7483648	°	GPS LongITude/GPS LatITude
	GPS_Hmsl	S,1*3	1e-2	±83886.08	m	GPS AltITude
61~62	GPS_Headmot	S,1*2	1e-2 8	±327.6	°	GPS Heading
63	GPS_Status	U,1				BIT1~4-Number Of GPS PosITioning SatellITes (Maximum 15) BIT5 -GPS PosITioning Mark 1 Valid BIT6~8- GPS PosITioning Type GPS_ Fixtype 0x00=No Fix 0x01=Dead Reckoning Only 0x02=2d Fix 0x03=3d-Fix 0x04=Gnss+Dead Receiving Combined 0x05=Time Only Fix
64~65	GPS_Pdop	U,2	1e-2
66~71	Ins_Att	S,2*2	1e-2	±327.68	°	Ptich ±90° Roll ±180°
		S,1*2		655.36	°	Yaw ±180°
72~80	Vn	S,3*3	1e-4	±838.8608	m/s	Vel_E/N/U
81~89	Pos	S,2*4	1e-7	±214.7483648	°	LongITude/ LatITude
		S,1*3	1e-2	±83886.08	m	AltITude
92	Modes And Scenarios	U,1				BIT1~4- Working Mode Align=1; Ins=2; Ahrs=3;Vg=4 BIT5~8- Work Scenario 1=On Board ;2=Indoor; 3=On Board 4=Fixed Wing;5=Rotor
93~96	Reserve					Zero Fill
97~98	Temperature	S,2	1e-2	±327.68	℃
99	Count	U,1
100	Check Code					Sum All Characters Before The Check BIT



Parameter settings



The product defaults to the "continuous output" state when powered on, and to set parameters, the "stop output" command must be sent first. Attention:After using the following command, the user must power on and restart to automatically swITch to the state of continuous transmission.

1 Stop output

Stopping output is to swITch the default "continuous output" state on power to the "parameter setting" state.

Sent to: * PA space GS01 space STOP carriage return

Reply:

* PA space GS01 space STOP space 0 carriage return Failed

*PA space GS01 space STOP space 1 carriage return Successful

2 Set up work scenarios

The product needs to swITch filter parameters according to different application scenarios. Work scenarios include car mounted, indoor (swing table)Shipboard, fixed wing, and rotor, wITh the default onboard scenario for power on.

Scene swITching is to swITch the default "car scene" when powered on to the actual scene.

Send: * PA space GS01 space SCENES space 1 carriage return

Reply:

* PA space GS01 space SCENES space 1 space 0 carriage return Failed

*PA space GS01 space SCENES space 1 space 1 carriage return Successful

Note: The underlined characters include 1- car mounted, 2- indoor, 3- ship mounted, 4- fixed wing, and 5- rotor optional.

3 Set Baud Rate

The default baud rate for powering on is 230400bps, which can be swITched by sending commands.

Send: * PA space GS01 space BAUD space 1 carriage return

Reply:

* PA space GS01 space BAUD space 1 space 0 carriage return Failed

*PA space GS01 space BAUD space 1 space 1 carriage return Successful

Note: The content of the underlined characters is 1-115200bps, 2-230400bps, and 3-460800bps, which are optional.

4 Restore factory settings

Restoring factory settings involves setting the work scene, frame format, baud rate, magnetic declination, and magnetic field calibration to default values.

Send: * PA space GS01 space RESET carriage return

Reply:

* PA space GS01 space RESET space 0 carriage return Failed

*PA space GS01 space RESET space 1 carriage return Successful

5 Set magnetic declination angle

The default magnetic declination is 0, wITh posITive magnetic north east and negative magnetic west.

Send: * PA space GS01 space MDEC space+/- XX.XX carriage return

Reply:

* PA space GS01 space MDEC space 0 carriage return Failed

*PA space GS01 space MDEC space 1 carriage return Successful

Note: If the magnetic declination angle is -2.5 degrees, the underline string is -02.50; If the magnetic declination angle is+1.5 degrees, the underline string is+01.50.

6 Magnetic field calibration

In the operation of magnetic sensors, IT is inevITable to be affected by the interference of surrounding electromagnetic fields, which can lead to varying degrees of deviation and deformation of the XYZ axis magnetic field strength measured by the magnetic sensor. Magnetic field calibration is to compensate for soft and hard magnetic interference through algorIThm learning of the surrounding magnetic field environment. Therefore, we strongly recommend that magnetic field calibration should be implemented after each installation and after changes in the magnetic field environment.

When performing magnetic field calibration, the surrounding interfering substances should remain unchanged (i.e. rotate wITh the product) during the product rotation process and the relative posITion of the product. Calibration requires the operator to have no mobile phones, magnetic cards, keys, or metal or powered devices that can affect the electromagnetic field on their body.

Attention: Only wIThin the limITed interference range can the magnetic field calibration operation have a compensation effect. The range of the magnetic sensor is approximately between plus and minus 1 Gauss, which is approximately twice the geomagnetic field in the northern hemisphere. If the magnetic field interference value exceeds plus or minus 0.5 Gauss, the magnetometer may reach saturation state, which hinders the compensation effect. When calibration fails, IT indicates that the problem has occurred.

2D calibration

Note: When the product cannot rotate in 3D, 2D calibration can be used. IT is recommended that the actual tilt angle of the product be less than 5 degrees. 2D calibration can be completed through the interface or serial port by issuing commands.

1. Start calibration: Before user calibration, send

Send: * PA space GS01 space MCAL space START carriage return

Reply:

* PA space GS01 space MCAL space START space 0 carriage return Failed

*PA space GS01 space MCAL space START space 1 carriage return Successful

2 Stop calibration: Start horizontal rotation for more than 2 turns, and send after completion

Send: * PA space GS01 space MCAL space END carriage return

Reply:

* PA space GS01 space MCAL space 0 carriage return Failed

*PA space GS01 space MCAL space 1 space X: x.xx space Y: y.yy carriage return Successful

Note: Returning calibration results of 0.90-1 indicates good calibration results, while>1.1 or<0.9 indicates poor calibration results.

3. Save calibration results: After user calibration, decide whether to save based on the calibration results.

Send: * PA space GS01 space MCAL space SAVE carriage return

Reply:

* PA space GS01 space MCAL space SAVE space 0 carriage return Failed

*PA space GS01 space MCAL space SAVE space 1 carriage return Successful

4. Clear calibration results: After calibration, the user decides whether to clear based on the calibration results.

Send: * PA space GS01 space MCAL space CLEAR carriage return

Reply:

* PA space GS01 space MCAL space CLEAR space 0 carriage return Failed

*PA space GS01 space MCAL space CLEAR space 1 carriage return Successful



Applications

Miniature aerial vehicles

• Delivery drones • Video drones • Agricultural UAVs

Machinery

• Satcom on the Move (SotM) • Construction machinery • Ship monIToring

Robotics

• Autonomous agriculture • Warehouse automation • Robotic arms

Other applications

• Handheld devices • Pedestrian navigation • VR/AR and HMDs •Navigation aiding
