| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KQ6IMU100 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Bandwidth: | ≥400Hz | Vibration Error: | ≤0.03°/s |
|---|---|---|---|
| Operating Temperature: | -40～+65℃ | Interface: | RS422(1-bit Start +8-bit Data +1-bit Even Parity Check +1-bit Stop) |
| Scale Factor: | 1000±30LSB/g | Bias Stability: | ≤0.002g |
| Baud Rate: | 460800bps | Input Voltage: | 5±0.2 V DC |
| High Light: | 460800bps RS422 Gyroscope Sensor,3-Axis Quartz Gyroscope Sensor |
||

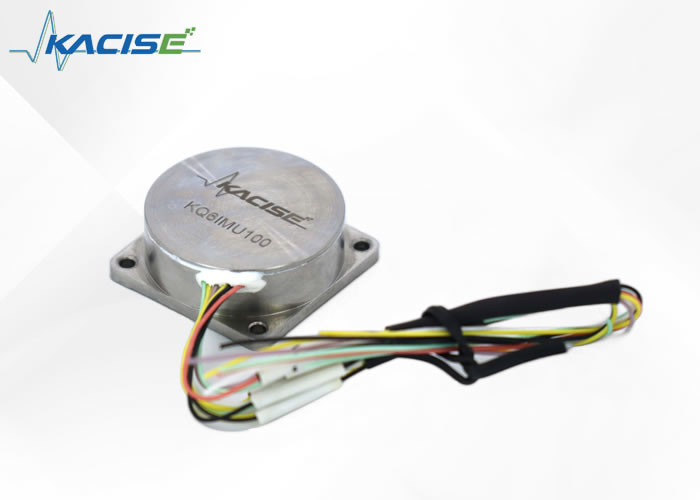

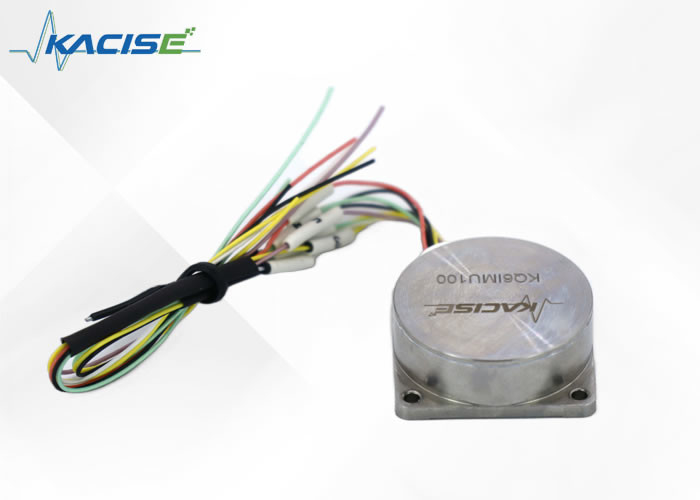

KQ6IMU100 is a module developed with MEMS technology. This module is capable of measuring the angular velocity and acceleration of a carrier in three directions. MEMS stands for Micro-Electro-Mechanical System. Basically, MEMS is a technology that integrates various micro-devices or systems in a single package.
These micro-devices may include micro-sensors, micro-actuators, micro-mechanical structures, micro-power and micro-energy systems, as well as signal processing and control circuits. This enables MEMS devices to function as independent intelligent systems that can be mass-produced. While the size of the system may be a few millimeters or even smaller, its internal structure is generally in the order of microns or even nanometers.
There are various types of MEMS products available in the market for different purposes. These include MEMS accelerometers, MEMS optical sensors, MEMS pressure sensors, MEMS gyroscopes, MEMS humidity sensors, MEMS gas sensors and their integrated products. These products are widely used in different industries for various applications.
● Small Size,27mmX27mmX10mm
● Easy to be integrated by connect the digital interface RS422.
● Dual redundancy design to sets of gyro and accelerator integrated.
● Bias < 0.05°
Technical Parameters:
| Parameter | KQ6IMU100 | |
| Power supply parameter | ||
| Input Voltage | 5±0.2 V DC | |
| Input Current | ≤100mA | |
| Product performance | ||
| GYRO | Range | ±400°/s |
| Bias | 0±0.05°/s | |
| Bias stability | ≤30°/h | |
| Scale factor | 70±3LSB/°/s | |
| Scale factor nonlinearity | ≤200ppm | |
| Vibration error | ≤0.03°/s | |
| Bandwidth | ≥100Hz | |
| Accelerometer | Range | ±10g |
| Bias | 0±0.02g | |
| Bias stability | ≤0.002g | |
| Scale factor | 1000±30LSB/g | |
| Bandwidth | ≥400Hz | |
| Interface | RS422(1-bit start +8-bit data +1-bit even parity check +1-bit stop) | |
| Baud rate | 460800bps | |
| Inner Data update speed | ≤2.5ms | |
| Environment | ||
| Operating temperature | -40～+65℃ | |
| Random vibration | 6.06 g | |
Dimensions:
Robotics is a rapidly developing field that combines various disciplines such as mechanical engineering, electrical engineering, and computer science. It involves the design, construction, and operation of robots to perform a range of tasks, from manufacturing and assembly to exploration and research.
Flight Testing is an essential part of the aerospace industry. It involves testing different types of aircraft and related equipment to determine their performance, safety, and reliability under various conditions. Flight testing includes both ground testing and actual flight testing, and it helps engineers and designers make improvements to aircraft design and systems.
Guidance & Control Systems are critical components in aerospace technology. They are used to control the movement and orientation of aircraft, rockets, and satellites. These systems rely on sensors, computers, and actuators to ensure the correct trajectory of the vehicle and maintain stability during flight.
Short Term Navigation is a technique used in aerospace to navigate through space using star observations. Short-term navigation involves determining a spacecraft's current position by taking star sightings and comparing them to a predefined star pattern to calculate the vehicle's location and orientation.
Aerospace is a vast and complex field that involves the development and production of aircraft, spacecraft, and related systems. It encompasses various disciplines such as aerodynamics, propulsion, materials science, and electronics. Aerospace engineers seek to improve and innovate technologies related to flight and exploration beyond the Earth's atmosphere.
Our Electronic Gyroscope Sensor is designed with precision to provide reliable performance for your applications. Our support includes detailed product documentation, an extensive online knowledge base, and troubleshooting guides to help you resolve any issues you may encounter.
We are committed to the satisfaction of our customers and strive to provide exceptional after-sales support. Should you have any feedback or suggestions, we welcome your input as it helps us to continuously improve our products and services.
The Electronic Gyroscope Sensor is housed in a robust, anti-static packaging to ensure the device remains secure and undamaged during transit. The interior of the packaging is lined with a cushioning material that absorbs shocks and vibrations, providing additional protection for the sensitive components of the sensor.
Prior to shipment, each package is sealed and subjected to a thorough inspection to guarantee that the sensor is securely enclosed. The exterior of the packaging is clearly labeled with handling instructions and the package contents to facilitate careful handling and to inform the recipient about the enclosed device.
For shipping, the packaged Electronic Gyroscope Sensor is placed in a larger, durable cardboard box designed to withstand the rigors of transport. This box is further secured with packing tape and, if necessary, additional cushioning materials are added to prevent movement within the box during shipment.
Each shipment includes a detailed packing slip with product information and a unique serial number for inventory tracking and quality control purposes. The package is then dispatched through a reliable courier service with options for tracking and insurance to ensure the Electronic Gyroscope Sensor arrives at its destination promptly and in pristine condition.
