| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KQ6IMU100 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Random Vibration: | 6.06 G | Interface: | RS422(1-bit Start +8-bit Data +1-bit Even Parity Check +1-bit Stop) |
|---|---|---|---|
| Bias: | 0±0.02g | Range: | ±10g |
| Baud Rate: | 460800bps | Bandwidth: | ≥400Hz |
| Input Voltage: | 5±0.2 V DC | Inner Data Update Speed: | ≤2.5ms |
| High Light: | 460800bps Accuracy Gyroscope Sensor,RS422 Accuracy Gyroscope Sensor |
||

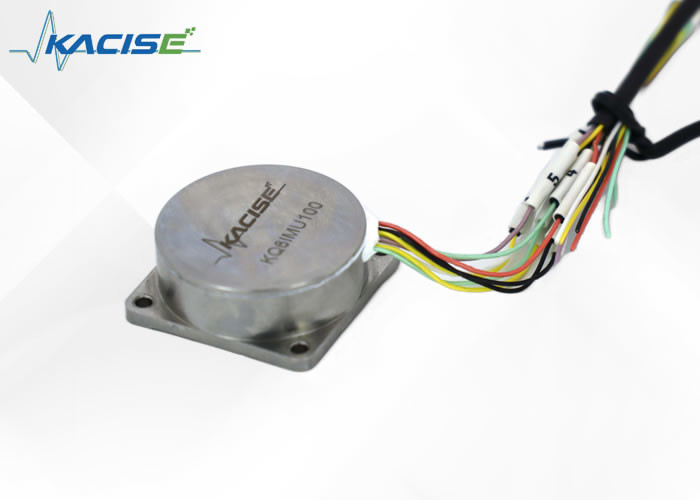

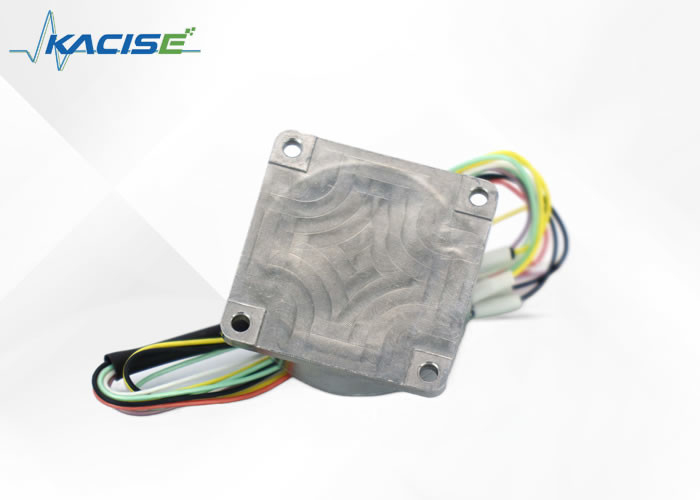

KQ6IMU100 is a module that makes use of MEMS technology to track the angular velocity and acceleration of the carrier in three directions. MEMS stands for Micro-Electro-Mechanical Systems. It is a technology that involves miniaturizing mechanical and electrical components on a micro scale to create an integrated system.
MEMS systems consist of micro-sensors that detect changes in the environment, micro-actuators that move or control the system, micro-mechanical structures that make up the system, and signal processing units that interpret the data collected. They can be powered by micro-energy sources and have interfaces for communication with other systems.
MEMS products are integral to a wide variety of devices and applications, including accelerometers, optical sensors, pressure sensors, gyroscopes, humidity sensors, gas sensors, and many more. These products are often integrated with other MEMS components to create complete systems.
MEMS has enabled the production of independent intelligent systems that can be mass-produced. Despite their small size, these systems can perform complex tasks with high accuracy. The internal structure of a MEMS system is typically on a micron or even a nanometer scale.
● Small Size,27mmX27mmX10mm
● Easy to be integrated by connect the digital interface RS422.
● Dual redundancy design to sets of gyro and accelerator integrated.
● Bias < 0.05°
Technical Parameters:
| Parameter | KQ6IMU100 | |
| Power supply parameter | ||
| Input Voltage | 5±0.2 V DC | |
| Input Current | ≤100mA | |
| Product performance | ||
| GYRO | Range | ±400°/s |
| Bias | 0±0.05°/s | |
| Bias stability | ≤30°/h | |
| Scale factor | 70±3LSB/°/s | |
| Scale factor nonlinearity | ≤200ppm | |
| Vibration error | ≤0.03°/s | |
| Bandwidth | ≥100Hz | |
| Accelerometer | Range | ±10g |
| Bias | 0±0.02g | |
| Bias stability | ≤0.002g | |
| Scale factor | 1000±30LSB/g | |
| Bandwidth | ≥400Hz | |
| Interface | RS422(1-bit start +8-bit data +1-bit even parity check +1-bit stop) | |
| Baud rate | 460800bps | |
| Inner Data update speed | ≤2.5ms | |
| Environment | ||
| Operating temperature | -40～+65℃ | |
| Random vibration | 6.06 g | |
Dimensions:
Robotics, which involves the conception, design, and development of robots, has become one of the most innovative and important fields in technology. The use of robotics has revolutionized various industries, including manufacturing and healthcare, by automating processes and tasks.
Flight testing is a crucial step in the process of designing, developing, and certifying aircraft. Flight testing involves putting prototypes of aircraft through their paces in simulated or real-world settings to ensure they can safely and reliably perform their intended functions. It's an important process in guaranteeing the safety of aircraft and passengers.
Guidance and control systems are essential components in aircraft and spacecraft. They work together to guide and direct the vehicle, ensuring stability and control at all times. Advanced guidance and control systems are essential for successful and efficient aerospace operations.
Short-term navigation is an essential function in aerospace, particularly in air traffic control. It involves directing aircraft on the most direct and efficient routes while ensuring safety and avoiding any potential hazards. Advanced navigation systems and technologies are constantly being developed to improve air traffic control and make air travel safer and more efficient for all.
Aerospace encompasses the design, development, and operation of vehicles that fly within or beyond the Earth's atmosphere. This includes aircraft, rockets, satellites, and spacecraft. Aerospace engineering is a complex, challenging and exciting field that requires a wide range of skills and expertise.
Our Electronic Gyroscope Sensor is designed with precision to provide reliable performance for your applications. Our support includes detailed product documentation, an extensive online knowledge base, and troubleshooting guides to help you resolve any issues you may encounter.
We are committed to the satisfaction of our customers and strive to provide exceptional after-sales support. Should you have any feedback or suggestions, we welcome your input as it helps us to continuously improve our products and services.
The Electronic Gyroscope Sensor is housed in a robust, anti-static packaging to ensure the device remains secure and undamaged during transit. The interior of the packaging is lined with a cushioning material that absorbs shocks and vibrations, providing additional protection for the sensitive components of the sensor.
Prior to shipment, each package is sealed and subjected to a thorough inspection to guarantee that the sensor is securely enclosed. The exterior of the packaging is clearly labeled with handling instructions and the package contents to facilitate careful handling and to inform the recipient about the enclosed device.
For shipping, the packaged Electronic Gyroscope Sensor is placed in a larger, durable cardboard box designed to withstand the rigors of transport. This box is further secured with packing tape and, if necessary, additional cushioning materials are added to prevent movement within the box during shipment.
Each shipment includes a detailed packing slip with product information and a unique serial number for inventory tracking and quality control purposes. The package is then dispatched through a reliable courier service with options for tracking and insurance to ensure the Electronic Gyroscope Sensor arrives at its destination promptly and in pristine condition.
