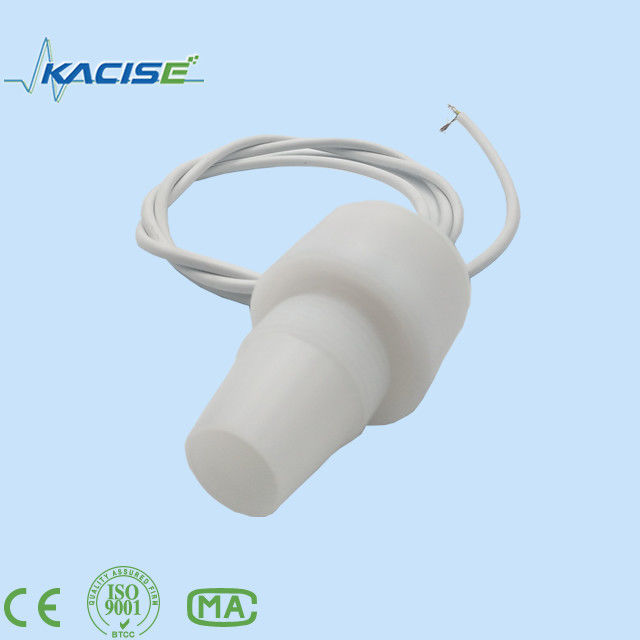

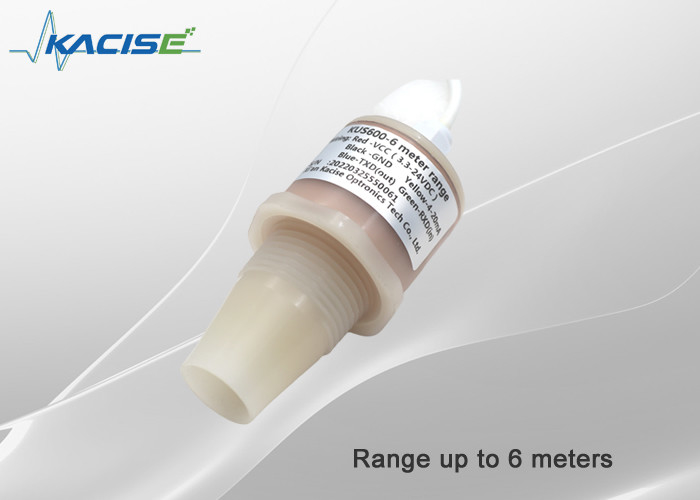

24V 3000mm RS485 0.2mA Ultrasonic Transducer Sensor

24V 3000mm RS485 0.2mA Ultrasonic Transducer Sensor

  • 24V 3000mm RS485 0.2mA Ultrasonic Transducer Sensor
24V 3000mm RS485 0.2mA Ultrasonic Transducer Sensor
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: ISO 9001-2008,GJB 9001B-2009,CE
Model Number: KUS600B
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Response Time: <50ms Beam Angle: 7°±2
Temp. Compensation: Inside/outside/fix Temp. Output: RS485,0~5V
Detection Range: 300mm~3000mm Repeatability Precision: ≤1%
High Light:

0.2mA Ultrasonic Transducer Sensor

,

RS485 Ultrasonic Transducer Sensor

,

3000mm Ultrasonic Level Sensor

KUS600B 0.2mA Low Power Consumption Ultrasonic Transducer Sensor



1. Product features:

  1. Support serial port wake up
  2. Low power consumption
  3. Support voltage 3.3V--24V
  4. PVDF waterproof material
  5. Range: 300mm --3000mm
  6. Power consumption in sleep state is as low as 0.2mA
  7. Distance measurement of transparent objects
  8. IOT dedicated to the Internet of Things







2. Product Description

The KUS600B product has low power consumption, supports serial port wake-up, supports sleep state, and the power consumption in sleep state is as low as 0.2mA.This product is made of PVDF material, which increases the use effect of the product.The range is 300-- 3000mm, which greatly improves the working distance and provides users with convenience in application selection.At present, this product is widely used in petroleum, robot, filling liquid products measurement.




3. Dimensions



24V 3000mm RS485 0.2mA Ultrasonic Transducer Sensor 0

4Parameters



General Parameters Mechanical Properties
Detection Range 300mm~3000mm Response Time <50ms
Repeatability Precision 1% IP grade IP68
Temp. Compensation inside/outside/fix temp.
Electrical Parameters
Working Voltage 3.3V~24V
Power Consumption 0.2mA
Circuit Protection short-circuit protection, overload protection
Output Digital Output RS485
Analogue Output 0~5V
Switch Output 0V / 5V
Ambient Environment
Operating Ambient Temp. 0~70 (-40~85, -55~125, etc, customizable)
Storage Temperature -55~125



5. Application

  • Tank level measurement
  • Bin level measurement
  • Proximity zone detection
  • People detection
  • Robot ranging sensor
  • Autonomous navigation
  • Multi-sensors navigation
  • Distance measuring
  • Food level detection
