Name: Dwyer DM-1000 Series DigiMag Digital Differential Pressure Gauge
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: DM-1000
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Dwyer DM-1000 Series DigiMag Digital Differential Pressure Gauge

DigiMag Digital Differential Pressure Gauge

Digital Differential Pressure Gauge

Brand Name:

Dwyer

Certification:

Model Number:

DM-1000

Request A Quote

Product Details

Compensated Temperature Limits:

32 To 122°F (0 To 50°C)

Accuracy:

±2% （-HA ±1）FS （±3% （-HA ±1.5%）

Product Name:

Digital Differential Pressure Gauge

Display:

LCD

Weight:

118lb(535g)

Warranty:

1 Year

Highlight:

DigiMag Digital Differential Pressure Gauge

Digital Differential Pressure Gauge

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

636D-0 636D-1 Dwyer Series 636D Fixed Range Differential Pressure Transmitter Wetted Materials Types 316L SS

Get Best Price

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer PrecisionPro 16G/8G/4G Temperature & Process Loop Controllers

Get Best Price

Dwyer MultiFunction LCT216 Digital Timer / Tachometer / Counter

Get Best Price

86--17719566736

Contact Now

Product Description

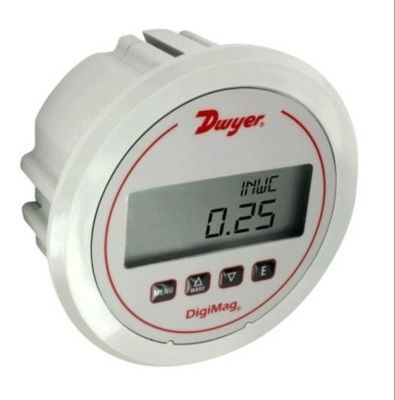

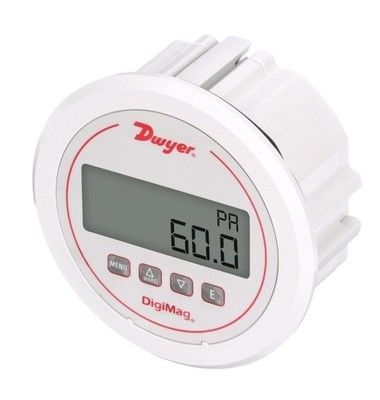

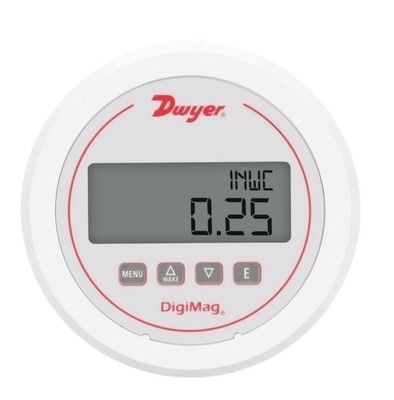

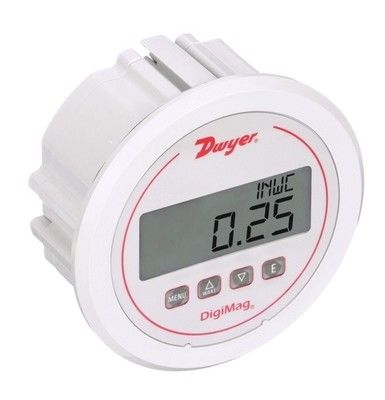

Dwyer DM-1000 Series DigiMag Digital Differential Pressure Gauge

Product Specifications

Compensated Temperature Limits	32 To 122°F (0 To 50°C)
Accuracy	±2% （-HA ±1）FS （±3% （-HA ±1.5%）
Product Name	Digital Differential Pressure Gauge
Display	LCD
Weight	118lb(535g)
Warranty	1 Year

Product Overview

The Dwyer DM-1000 Series DigiMag Digital Differential Pressure Gauge is a versatile instrument designed for precise measurement of differential pressure, air velocity, and flow for air and non-combustible gases. Equivalent to the Magnehelic gauge in functionality, it features a 4-digit LCD display with selectable Imperial/Metric units and intuitive 4-button controls for easy calibration.

Field-programmable for pressure, velocity, or flow modes, the DM-1000 can be set to flash alerts for filter maintenance, track peak/valley data, and adjust display updates—making it ideal for HVAC, clean room, and industrial filtration applications.

Key Features

Multi-Function Measurement: Differential pressure, air velocity, and flow rate (with pitot tube/K-factor settings). Filter clogging alerts via display flashing for maintenance scheduling.

Precision & Stability: ±1% FS accuracy (±2% for ranges ≤1" w.c.) with ±1% FS/year long-term stability. Temperature compensation (32-122°F/0-50°C) for consistent readings.

Flexible Display & Units: 4-digit LCD (0.60"H digits) with update intervals (1 sec-10 min) or button-triggered updates. Selectable units: in w.c., psi, kPa, mm w.c., mBar, etc.

Power & Durability: 9V battery (1.5-year life in standby) or 9-24 VDC external power. NEMA 4X (IP66) fiberglass housing for dust/water protection.

User-Programmable Functions: Security level settings, K-factor calibration for flow sensors, data smoothing, and zero-to-full span adjustments.

Model Specifications

Model	Description
DM-1102	DigiMag® differential digital pressure gage, range 0-0.25" w.c.
DM-1103	DigiMag® differential digital pressure gage, range 0-0.5" w.c.
DM-1104	DigiMag® differential digital pressure gage, range 0-1" w.c.
DM-1105	DigiMag® differential digital pressure gage, range 0-2" w.c.
DM-1107	DigiMag® differential digital pressure gage, range 0-5" w.c.
DM-1108	DigiMag® differential digital pressure gage, range 0-10" w.c.
DM-1109	DigiMag® differential digital pressure gage, range 0-15" w.c.
DM-1110	DigiMag® differential digital pressure gage, range 0-25" w.c.
DM-1111	DigiMag® differential digital pressure gage, range 0-50" w.c.
DM-1112	DigiMag® differential digital pressure gage, range 0-100" w.c.
DM-1122	DigiMag® differential digital pressure gage, range 0.25-0-0.25" w.c.
DM-1123	DigiMag® differential digital pressure gage, range 0.5-0-0.5" w.c.
DM-1124	DigiMag® differential digital pressure gage, range 1-0-1" w.c.
DM-1125	DigiMag® differential digital pressure gage, range 2-0-2" w.c.
DM-1127	DigiMag® differential digital pressure gage, range 5-0-5" w.c.
DM-1128	DigiMag® differential digital pressure gage, range 10-0-10" w.c.
DM-1202	DigiMag® differential digital flow gage, range 0-0.25" w.c.
DM-1203	DigiMag® differential digital flow gage, range 0-0.5" w.c.
DM-1204	DigiMag® differential digital flow gage, range 0-1" w.c.
DM-1205	DigiMag® differential digital flow gage, range 0-2" w.c.
DM-1207	DigiMag® differential digital flow gage, range 0-5" w.c.
DM-1208	DigiMag® differential digital flow gage, range 0-10" w.c.
DM-1209	DigiMag® differential digital flow gage, range 0-15" w.c.
DM-1210	DigiMag® differential digital flow gage, range 0-25" w.c.
DM-1211	DigiMag® differential digital flow gage, range 0-50" w.c.
